Long Range America Toyota Land Cruiser 250 Series (2024-2026) 24 Gallon Auxiliary Fuel Tank
SKU: TLCP250RA
Available for Pre-Order
Long Range America Toyota Land Cruiser 250 Series (2024-2026) 24 Gallon Auxiliary Fuel Tank
100% Australian Made from 2mm aluminized steel, this 24-gallon auxiliary tank is designed specifically for the Toyota Land Cruiser 250 Series (gas engine). This seamless upgrade extends your vehicle’s range and provides reliable fuel capacity for long-distance adventures.
-
Capacity: 24 gallons, in addition to the factory 17.9-gallon tank, for a total of 41.9 gallons.
-

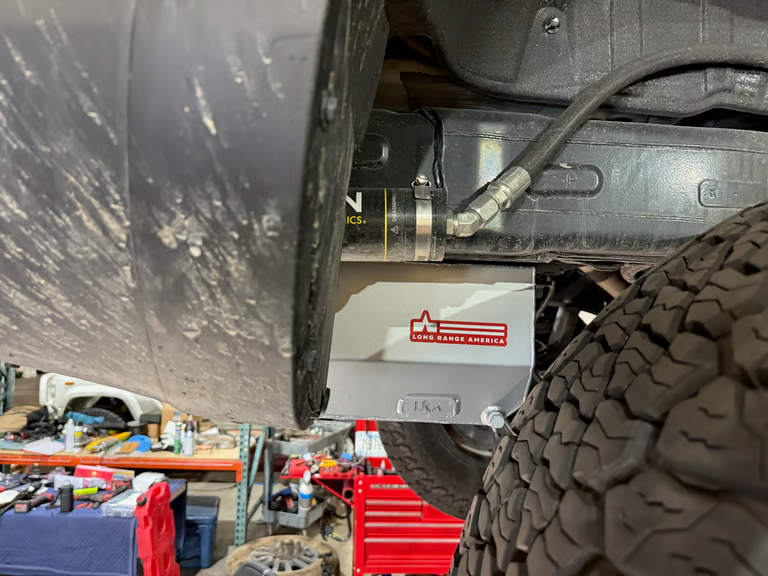

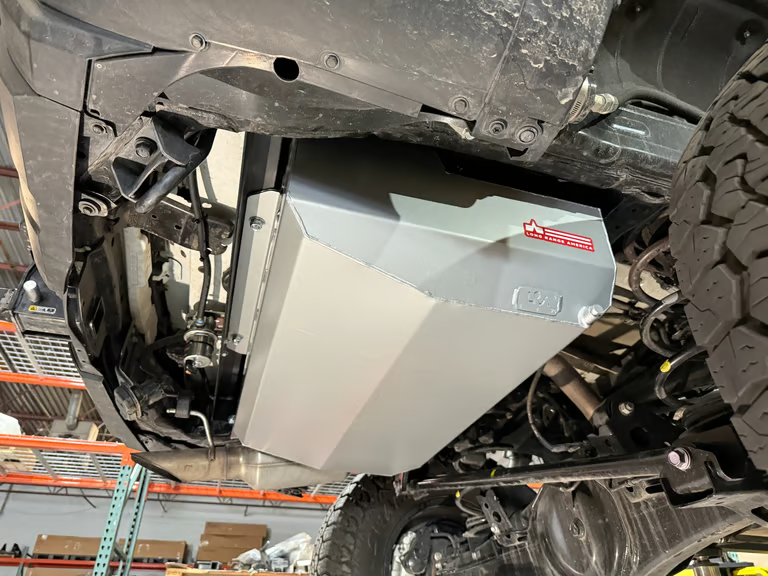

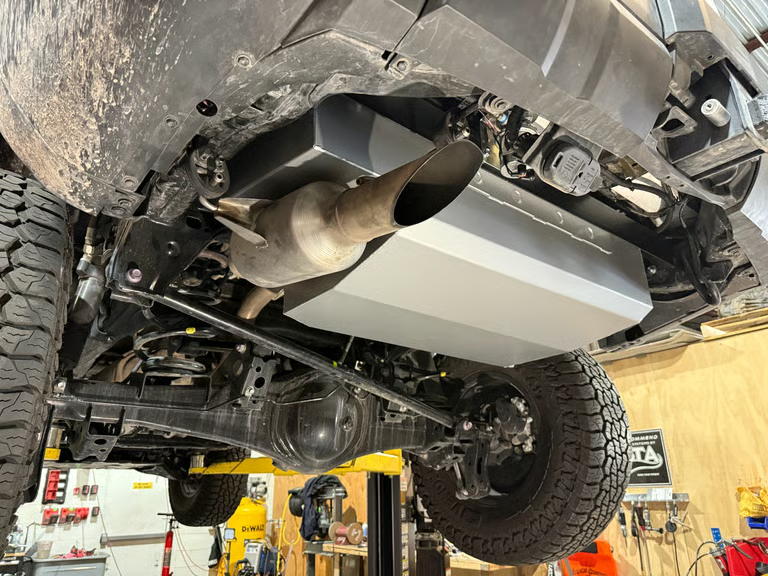

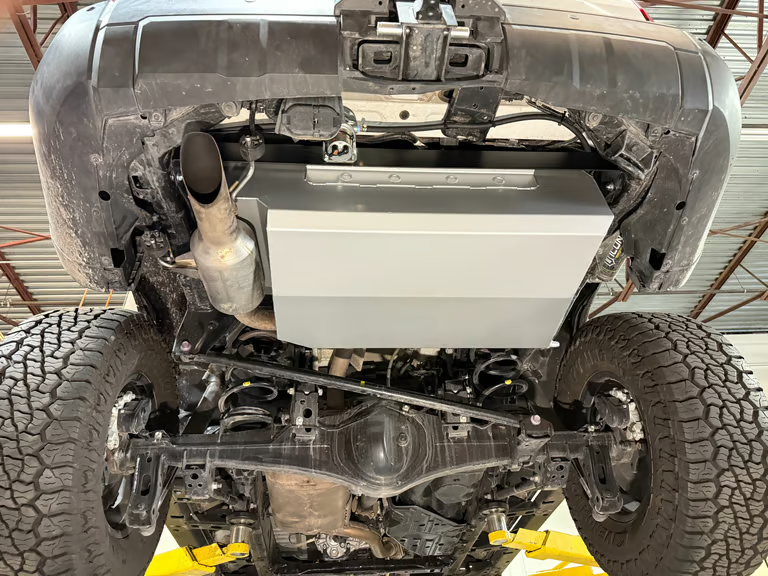

Fitment: Installs in place of the factory spare tire (spare tire relocation required).
-
Fueling: Uses the OEM fuel door with a new dual filler neck and supplied parts.
- Operation: Equipped with a transfer pump (½ gallon per minute with stock pump) to refill the main tank at the push of a switch.
- No exhaust modifications required.
Installation: DIY is possible, but we recommend professional installation by a certified installer for best results.
⚠️ Note: Fuel tanks are not intended to be topped off. Doing so will void the tank warranty.
| Tank Type | Auxiliary |
| Gallon Capacity | 24 |
| Fill Point | Dual Fill Point |
| Fuel Type | Gas |
| Relocate Spare Tire | Yes |
| Weight (No Fuel) | 85lbs |
| Recommended Install Time | 8 hours |
