Expion360 12V 80Ah LiFePO4 Lithium Battery – Group 24
SKU: EX-G24-80C
This product is available for pre-order and will be shipped or built by the manufacturer.
Expion360 12V 80Ah LiFePO4 Lithium Battery – Group 24
Maximize your power without changing your footprint. The Expion360 Group 24 80Ah LiFePO4 Battery fits 33% more energy into the standard Group 24 case than the 60Ah model, making it the perfect upgrade for space-constrained RVs and marine applications.
Built with reliable UL1642 recognized 3.4Ah cylindrical cells, this battery delivers 80 Amp-Hours of deep-cycle power while weighing just 24.0 lbs. It features a fully sealed IP66 waterproof enclosure and is engineered to meet UL1973 compliance. To ensure superior performance, it utilizes oversized brass terminals that maximize electrical connectivity and reduce heat buildup for enhanced safety. Backed by a 12-Year Warranty, it is the ideal drop-in replacement for those who need extra runtime in a compact size.
Best For:
- RV house battery systems
- Overland and off-grid vehicles
- Marine and boat power systems
- Backup power and mobile work setups
- Off-grid cabins and remote installations
Features
- Perfect Group 24 Drop-In Replacement Upgrade your system effortlessly. This 60Ah battery is built to the exact BCI Group 24 standard dimensions, making it a seamless drop-in replacement for traditional lead-acid or AGM batteries. It is the ideal choice for smaller travel trailers, trolling motors, and overland rigs where space is limited but reliable power is essential.
- Ultra-Lightweight Design (Only 19.2 lbs) Shed the weight without losing power. Weighing just 19.2 lbs, this lithium battery is significantly lighter than a comparable lead-acid unit (which can weigh 50+ lbs). This weight reduction is critical for improving fuel economy in RVs and speed/handling in marine applications.
- Superior IP66 Moisture Protection Engineered for the elements. The IP66-rated enclosure provides high-level protection against powerful water jets and dust ingress. This makes it an excellent option for marine environments, open truck beds, and other wet conditions where lesser batteries would fail.
- Robust 3.4Ah Cylindrical Cell Technology Powered by UL1642 recognized 3.4Ah stainless steel encased 26650 cylindrical cells. These cells offer superior mechanical stability and safety compared to prismatic pouches, ensuring your battery handles the vibrations of the road or water with ease.
- 12-Year Warranty & UL1973 Compliance Built to last and backed by a 12-Year Warranty. The entire battery assembly is UL1973 compliant, guaranteeing that it meets rigorous safety standards for stationary and motive auxiliary power applications.
Technical Specifications
| Nominal Voltage | 12.8V |
|---|---|
| Capacity | 60Ah |
| Weight | 19.2 lbs (8.7 kg) |

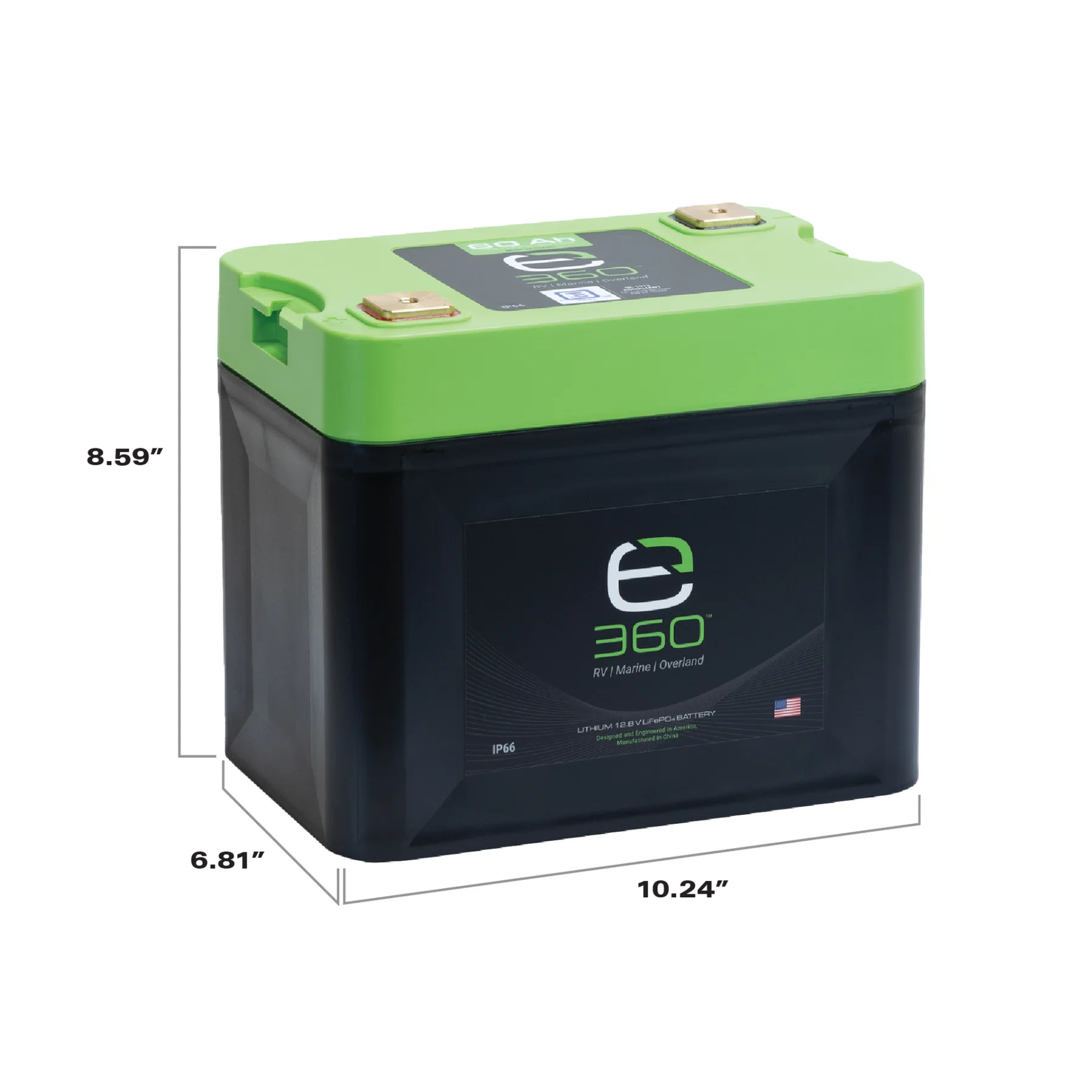

| Dimensions | 10.2" L x 6.8" W x 8.6" H (260mm x 173mm x 218mm) |
| Charge Voltage | 14.4V - 14.6V |

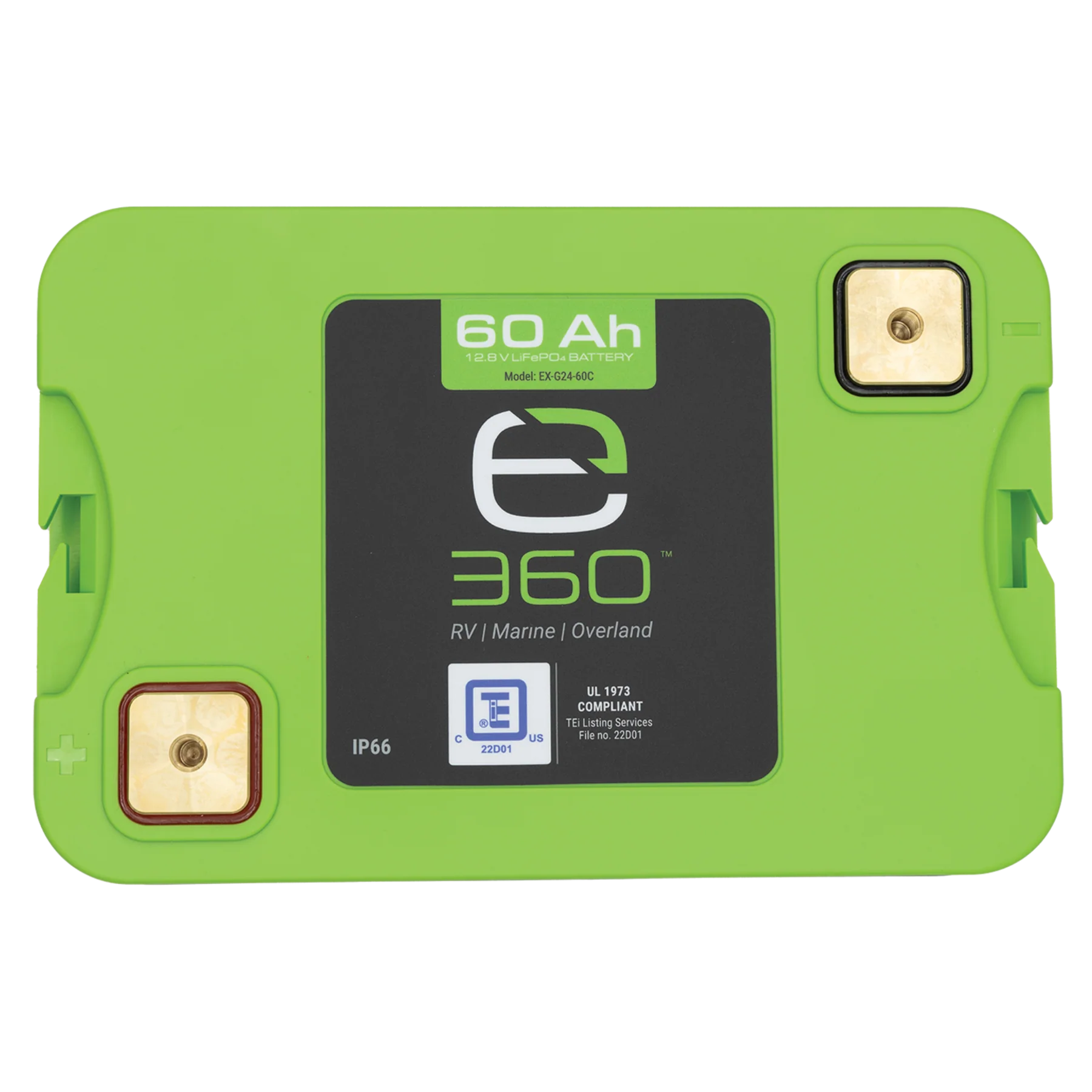

| Terminals | Oversized Brass |
| Communication | None (Internal BMS) |
