Expion360 12V 162Ah LiFePO4 Lithium Battery – GC2, SmartTalk & VHC
SKU: EX-GC2-12162-BCH
This product is available for pre-order and will be shipped or built by the manufacturer.
Expion360 12V 162Ah LiFePO4 Lithium Battery – GC2, SmartTalk & VHC
Maximize your energy storage with the Expion360 162Ah GC2 LiFePO4 Lithium Battery. By utilizing the advanced UL1642 recognized 4.5Ah stainless steel cylindrical cells, Expion360 have packed 32% more capacity into the standard GC2 footprint, giving you extended runtime without requiring extra space.
Built to the highest safety standards, this battery is UL1973 compliant and features patent-pending VHC™ Internal Heating for charging in sub-freezing temperatures. Expion360 further enhances system reliability with oversized brass terminals, designed to maximize electrical connectivity and reduce heat resistance for safer operation. Encased in a rugged IP65 water-resistant housing and backed by a 12-Year Warranty, it is the ultimate high-density power upgrade for RVs, off-grid builds, and marine applications.
Best For:
- RV house battery systems
- Overland and off-grid vehicles
- Marine and boat power systems
- Backup power and mobile work setups
- Off-grid cabins and remote installations
Features:
Massive Power Density: 162Ah in a Compact GC2 Size
Maximize your energy storage with the highest capacity in its class. This unit delivers an impressive 162Ah of power within a standard GC2 battery footprint. It is the ultimate drop-in upgrade for RVs and marine vessels, utilizing high-density 4.5Ah cylindrical cells to provide 32% more energy than traditional lithium equivalents without requiring extra space.
All-Season Reliability with VHC™ Internal Heating
Designed for extreme environments, the proprietary VHC™ (Vertical Heat Conduction) system ensures consistent performance in freezing temperatures. Unlike basic external pads, this internal heating technology warms the battery core evenly, enabling safe charging during winter expeditions, off-grid living, and cold-weather overland travel.
SmartTalk™ Bluetooth & CAN Bus Communication
Take full control of your power system with integrated SmartTalk™ Bluetooth technology. Monitor battery health, voltage, and discharge rates wirelessly from your smartphone. For complex installations, the built-in CAN Bus port allows for seamless communication with advanced inverters and power management systems, ensuring optimal efficiency and integration.
Reinforced Cell Structure & IP65 Moisture Protection
Engineered for durability on the road and water. The battery features UL1642 recognized stainless steel encased 26650 cells for superior structural integrity. Housed in an IP65-rated enclosure, it resists dust and moisture intrusion, making it a rugged choice for the high-vibration environments of overland rigs and marine engine bays.
12-Year Warranty & US-Based Engineering
Power your adventures with peace of mind. Expion360 backs this battery with an industry-leading 12-Year Warranty. Designed and engineered in Central Oregon to exceed strict safety standards, this battery is built to provide over a decade of reliable service for your most critical power needs.
Technical Specifications
| Nominal Voltage | 12.8 V |
|---|---|
| Capacity | 162 Ah |
| Weight | 39.45 lbs (17.89 kg) |

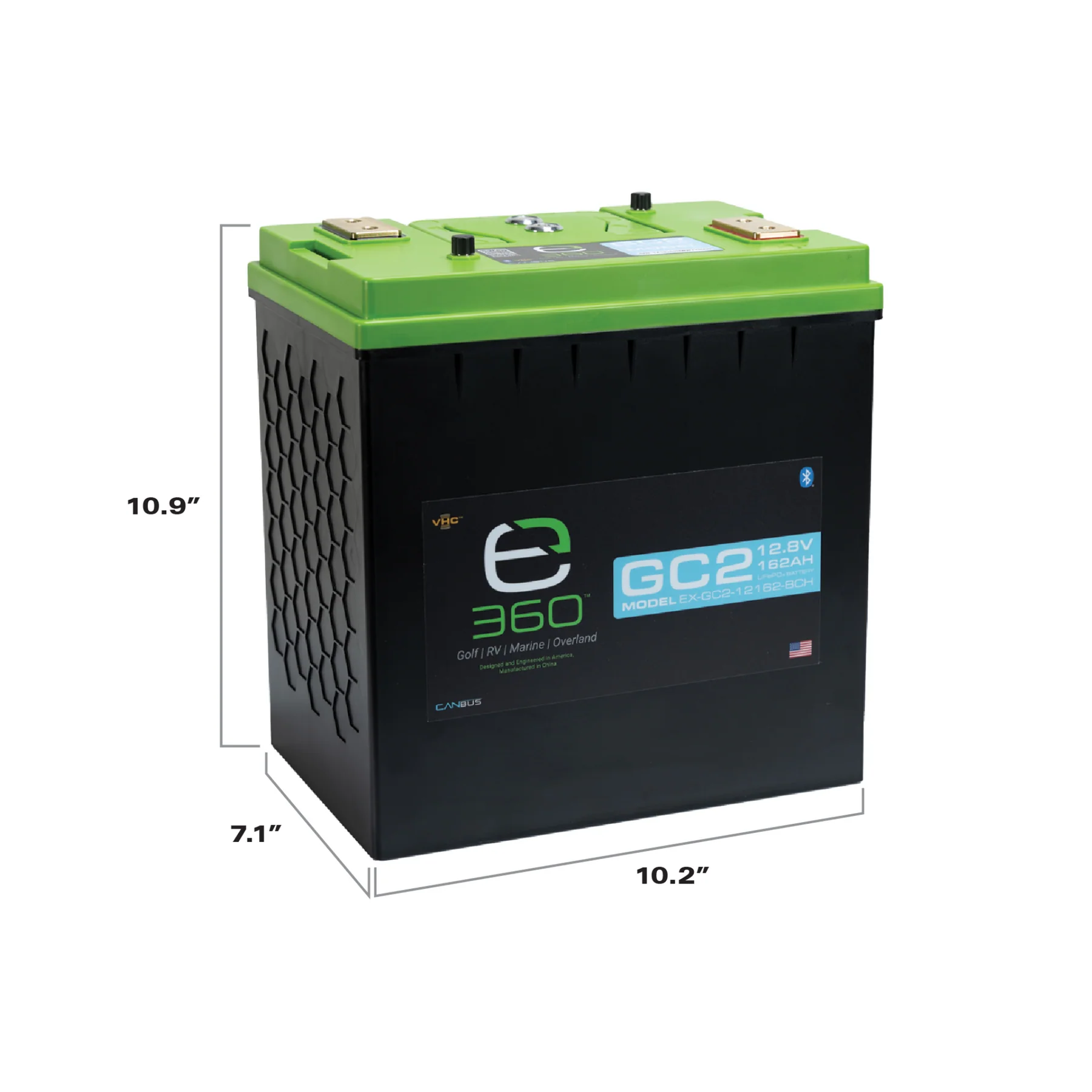

| Dimensions | 10.2" L x 7.1" W x 10.9" H (260mm x 181mm x 276mm) |
| Charge Voltage | 14.6 V |
| Max Discharge | 150 A Continuous / 220 A Pulse |
| Communication | Bluetooth / CAN Bus |
