Diode Dynamics Stage Series Reverse Light Kit for 2017-2022 Ford Super Duty

Diode Dynamics Stage Series Reverse Light Kit for 2017-2022 Ford Super Duty

There are plenty of ways to add light behind your Ford Super Duty, but the new Stage Series Reverse Light Kit stands out with innovations in both function and ease of use. This kit includes an integrated red running light, and plug-and-play wiring harness, for trouble-free installation! Thanks to Stage Series TIR optic technology, this kit provides a huge amount of extra reverse light. The included harness allows you to activate it automatically with your reverse lights, for a truly integrated solution.

Features

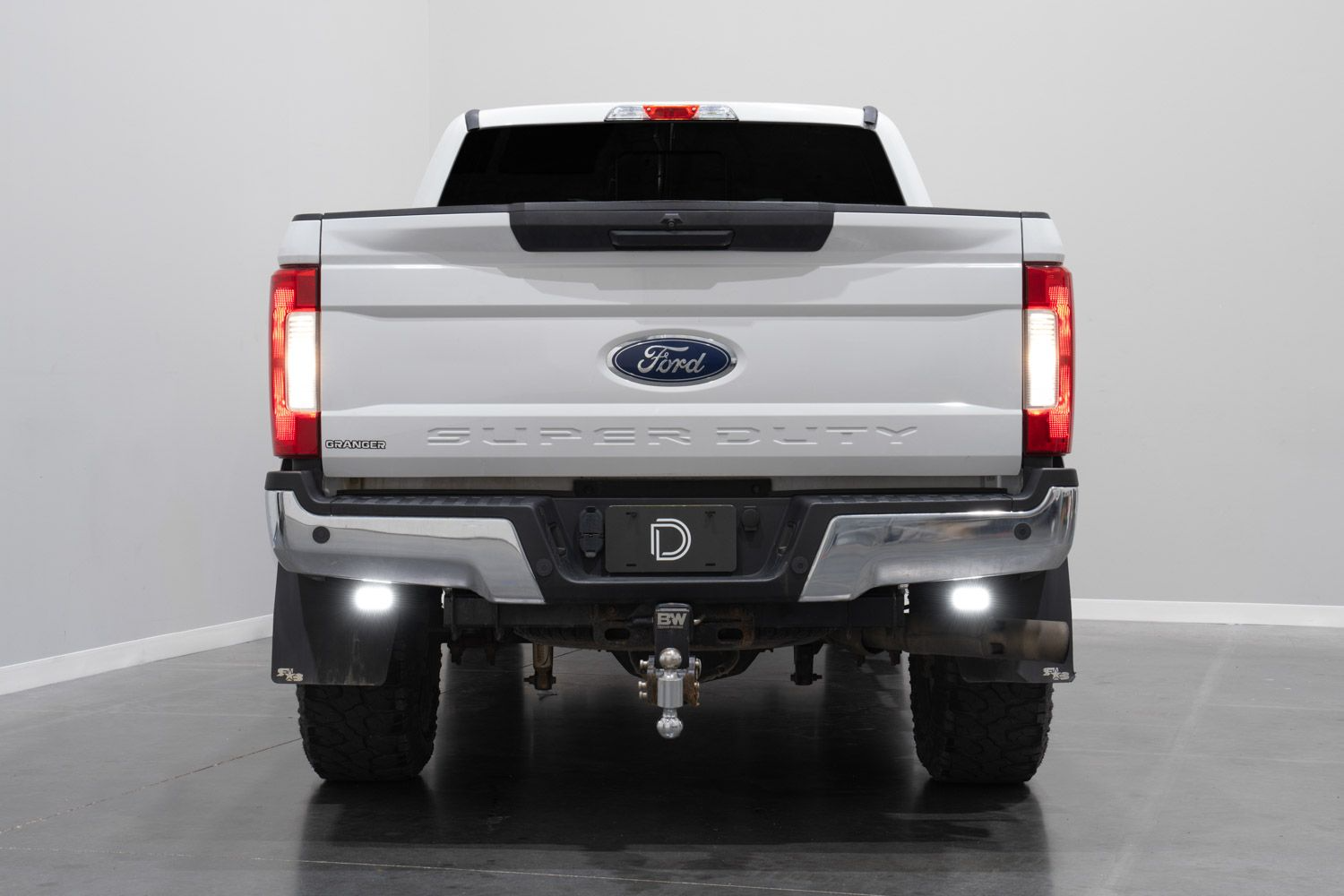

• Mount two SSC1 or SSC2 pods underneath the 2017-2022 Ford Super Duty rear bumper.
• Provides high-power reverse light, and red accent light.
• Connects to trailer hitch wiring for simple, everyday operation of lights.
• Bolts on to rear bumper, no cutting or modification to factory bumper.
• Simple, 10-minute installation.
• Designed and assembled in USA.


Plug and Play. Thanks to custom-molded OEM connectors, this kit is completely plug-and-play. The included adapter harness plugs right into your factory tail lights for easy installation and operation. No cutting, drilling, or additional wiring needed! The kit operates as an additional red accent light, with your tail lights, and then automatically switches to a high-power backup light when your vehicle is in reverse. The included toggle switch allows you to override the vehicle signals and turn on the main beam anytime.

Backlight Functionality. The Stage Series LED pods included with this kit feature a distinctive backlight in a vibrant red color which functions as an additional accent light while driving! The backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products.

Functional Patterns. All Stage Series beam patterns were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern.

Flood pattern was designed to provide uniform, even illumination with a full 50x50 degree spread of light on the SSC1 LED pod, and a 60x60 degree spread on the SSC2 LED pod. Unlike generic "flood" lights that are simply a heavily diffused spotlight, our flood pattern uses pillow optics on the outer lens surface, to provide a true optically designed spread, for even illumination throughout.

Sport or Pro. Stage Series LED pods are available at two different power levels. Both options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. However, the Pro option is double the amount of total power. Click the Specifications tab to see more information!

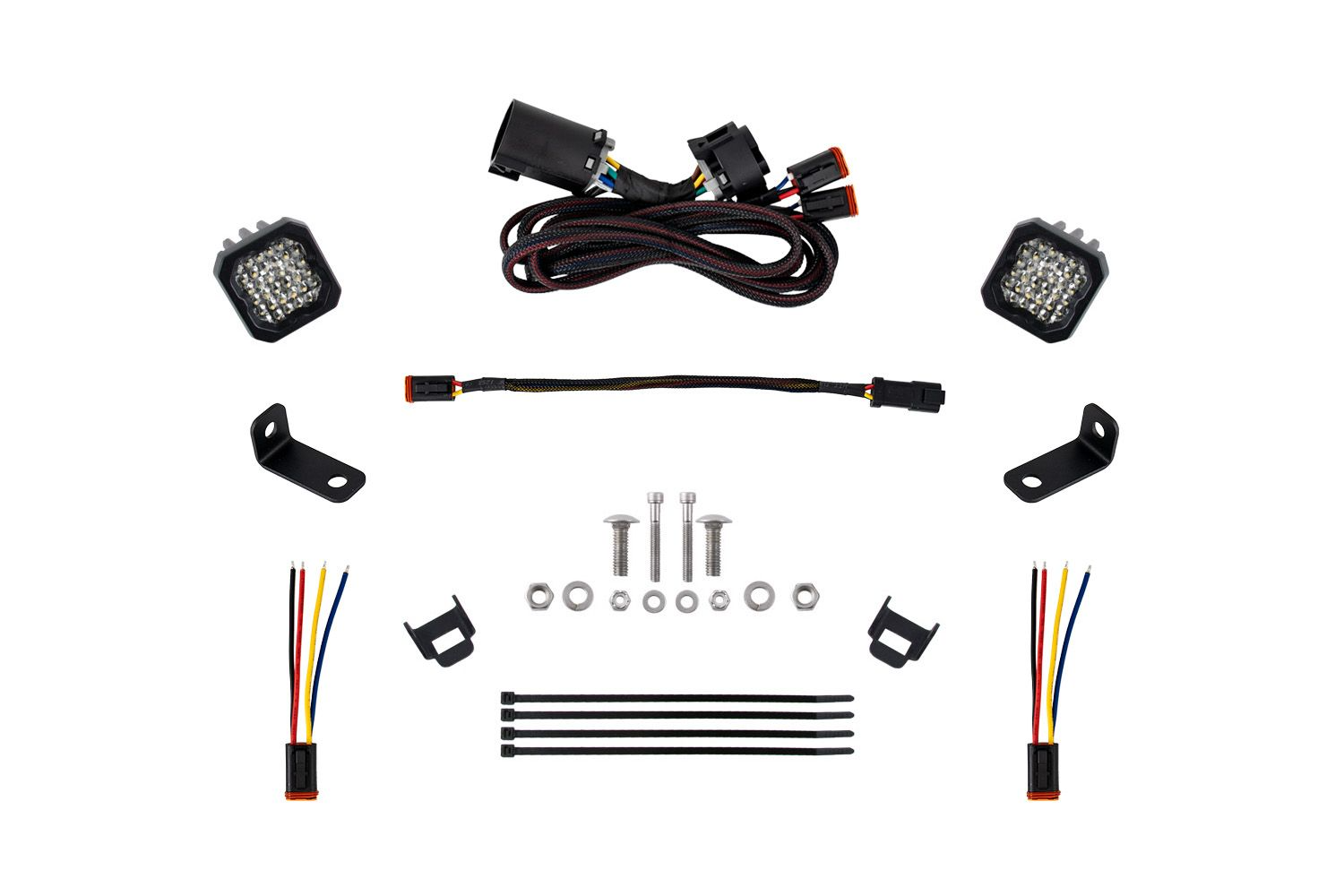

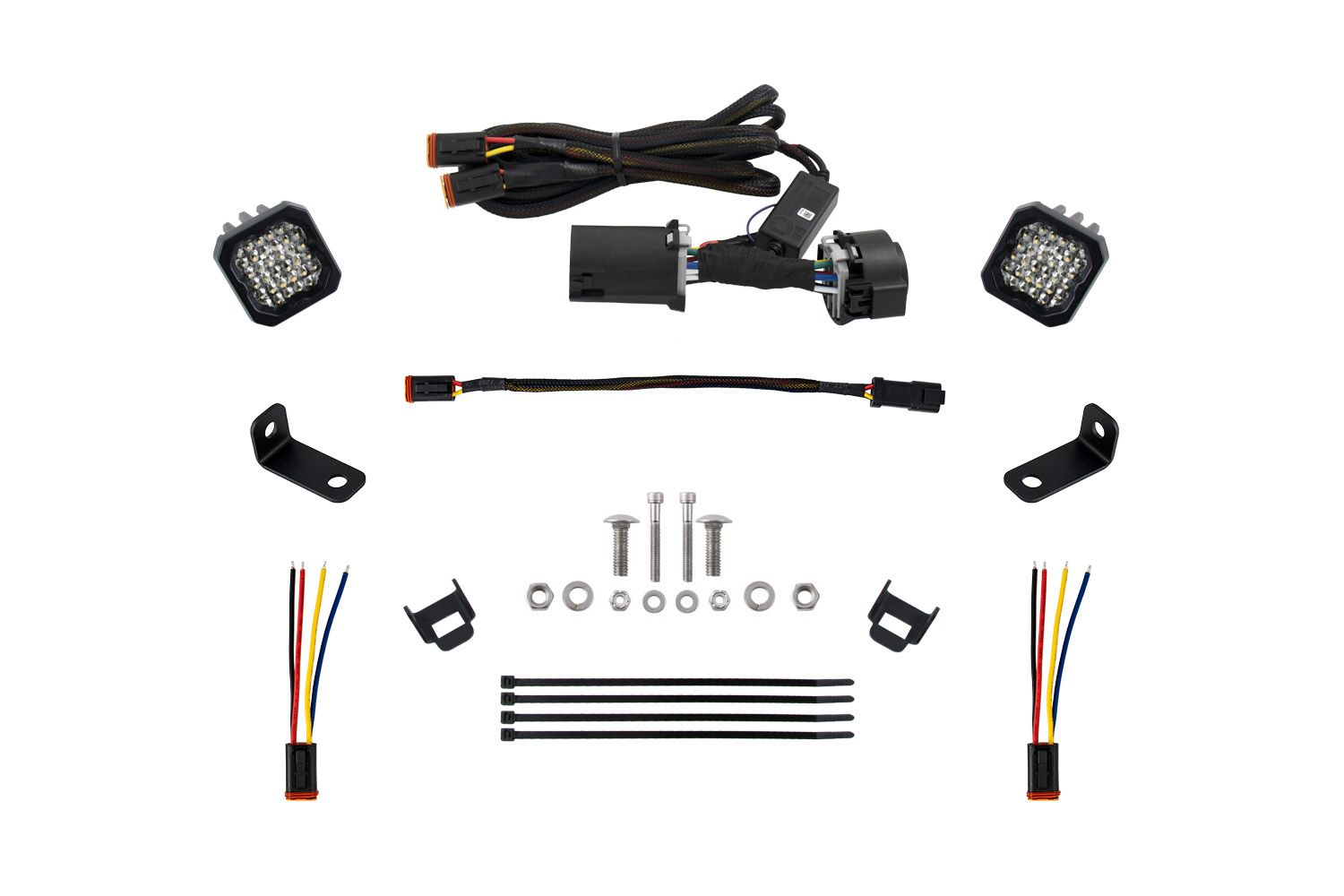

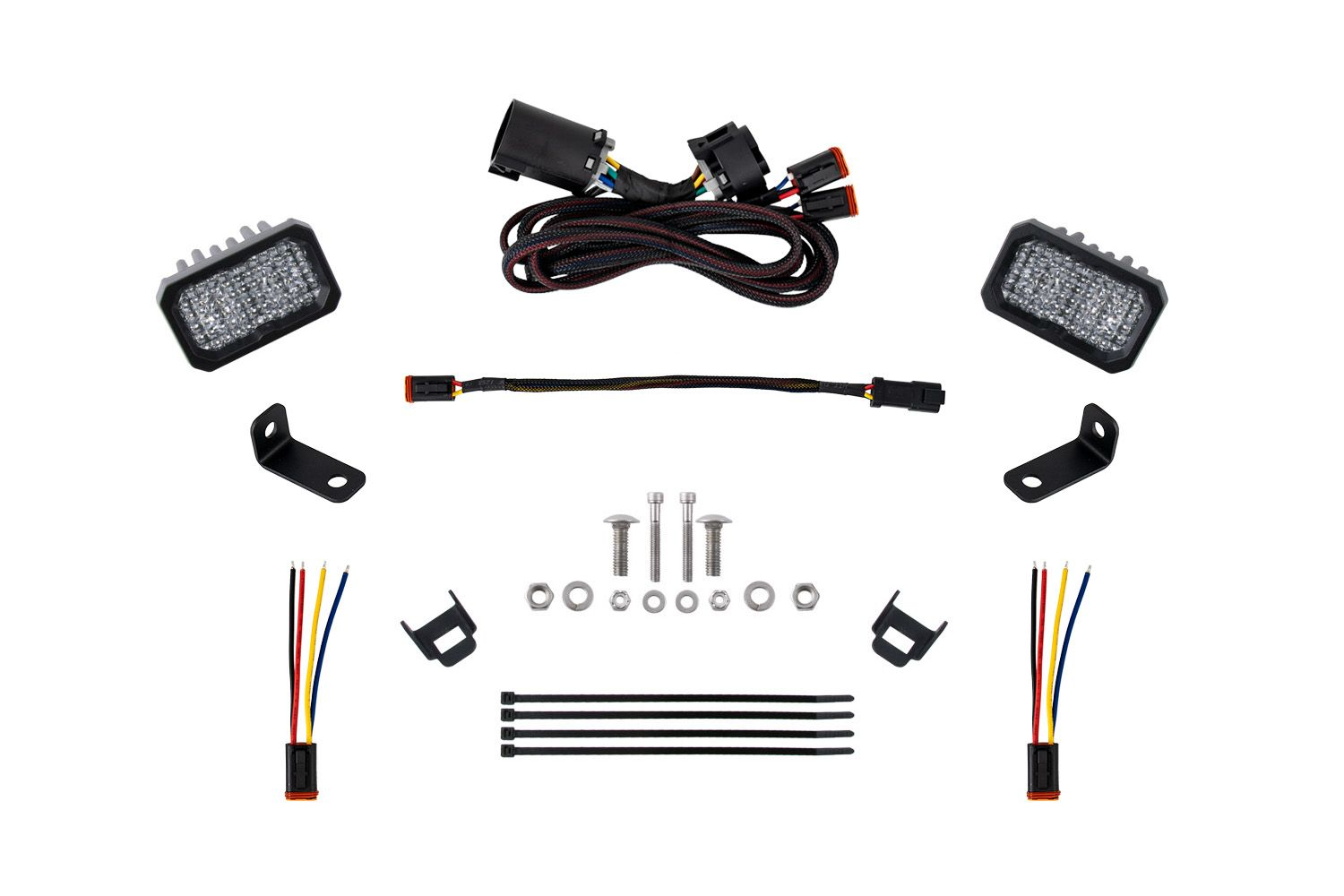

In the Box:

• Two (2) SSC1 or SSC2 Standard LED Pods
• One (1) Trailer Reverse Light Wiring Harness

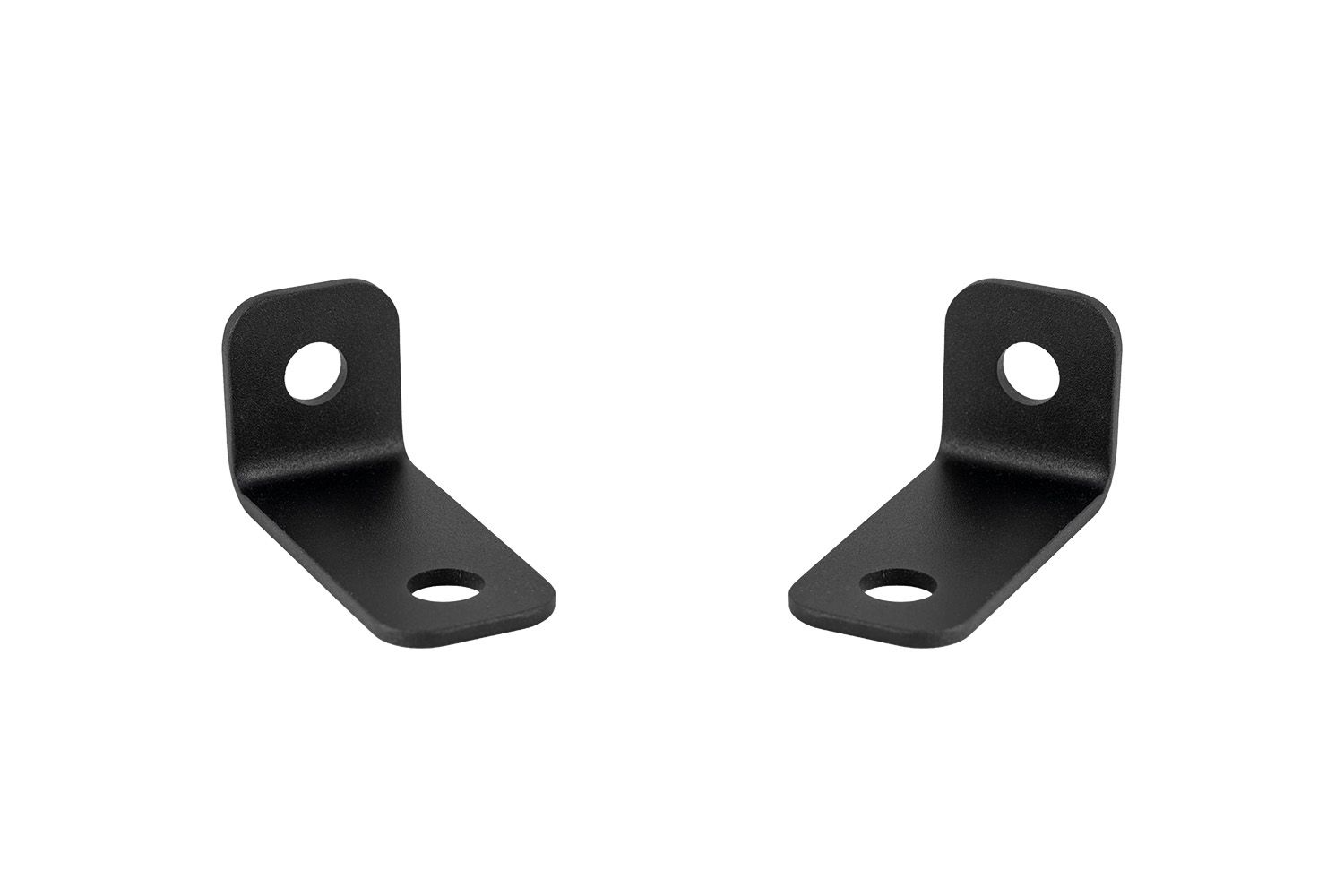

• Two (2) Mounting Brackets
• Mounting hardware
• Installation guide


NOTE: Compatible with F250/F350/F450/F550 XL, XLT, Lariat, King Ranch, Platinum, and Limited trim levels.
