Diode Dynamics Stage Series LED Lightbar Kit for 2019-2021 Ford Ranger
SKU: DD6597
0 in stock
Diode Dynamics Stage Series LED Lightbar Kit for 2019-2021 Ford Ranger
The Stage Series LED Lightbar Kit for the 2019-2021 Ford Ranger from Diode Dynamics allows you to mount a pair of 6" light bars or one 18" light bar in the opening on the bumper. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required!
Features
- Direct fitment on the 2019+ Ford Ranger.

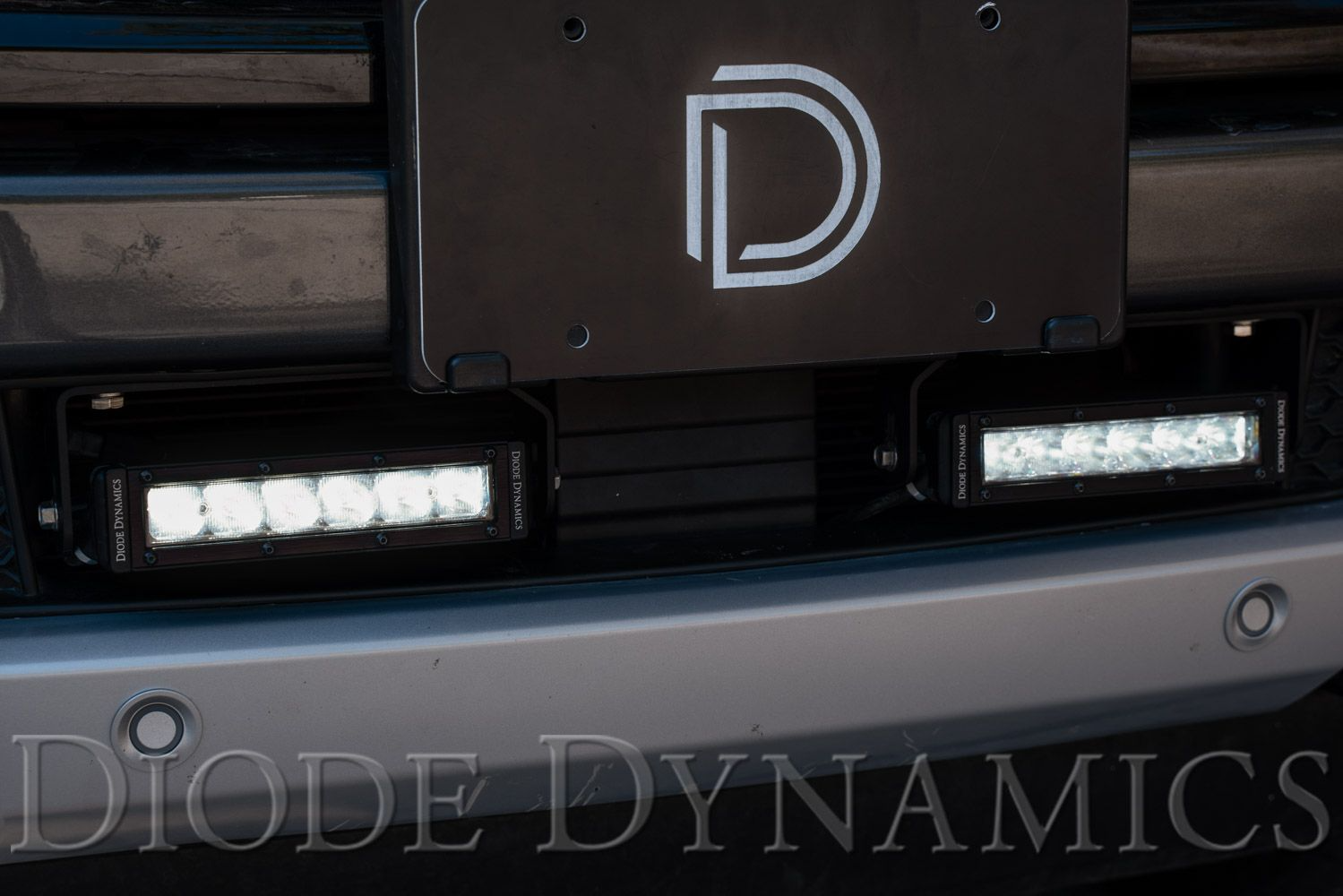

- Allows you to mount two 6" light bars or one 18" light bar in the front bumper opening.
- CAD-designed for perfect fitment and OEM-like appearance.
- Utilizes existing mounting points for easy installation - no cutting or drilling required.
- Highly durable powdercoated steel construction.
Street Legal Output. The 6" kit isn't just for off-road! When installed as a pair and aimed in accordance with your state's regulations, the Driving pattern meets SAE J581 as a Driving/Auxiliary High Beam Light, and the Wide pattern meets SAE J583 as a Foglamp, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability.
Designed for Performance. Using optical simulation modeling, Diode Dynamics Stage Series light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package.
Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

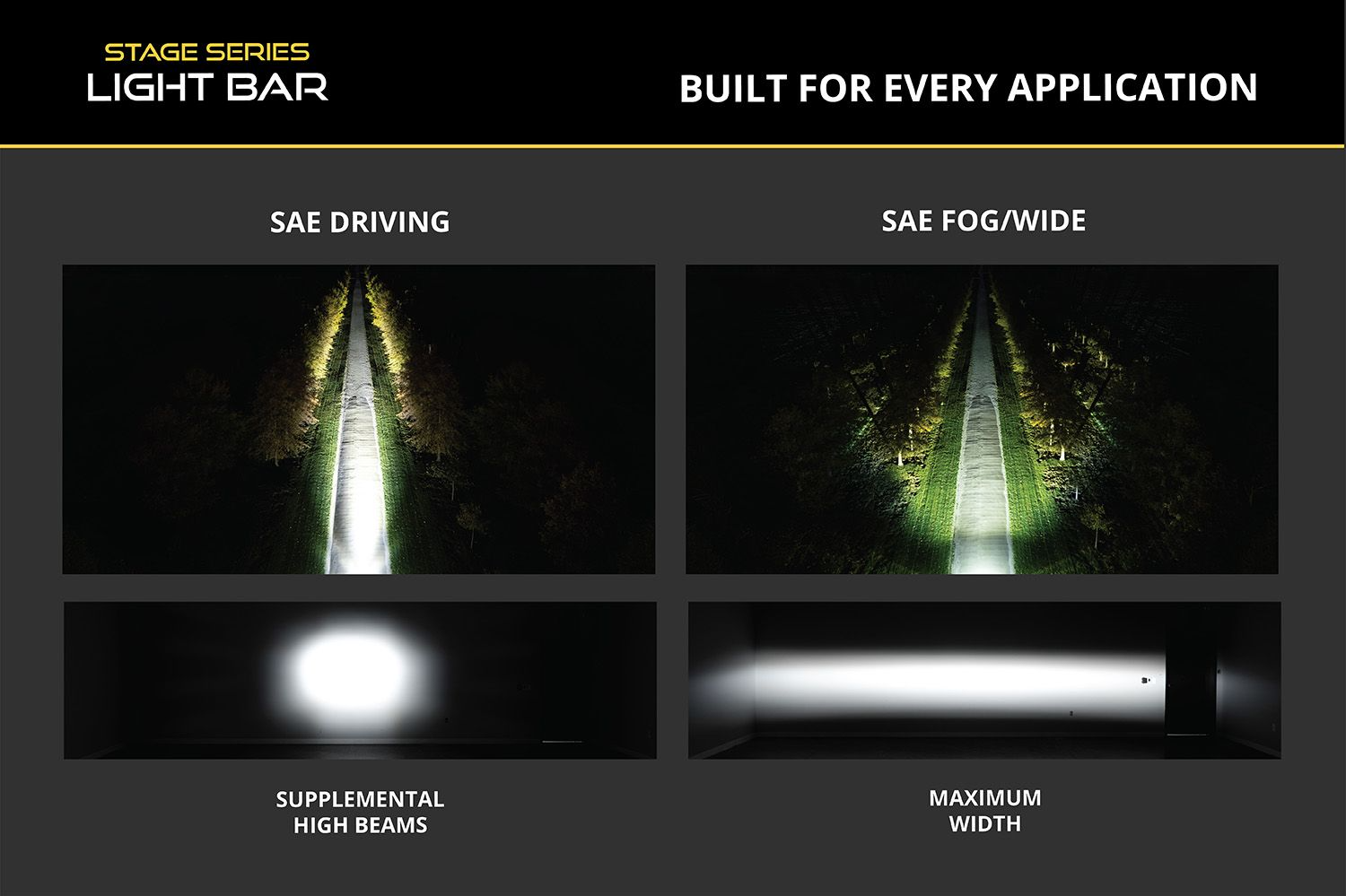

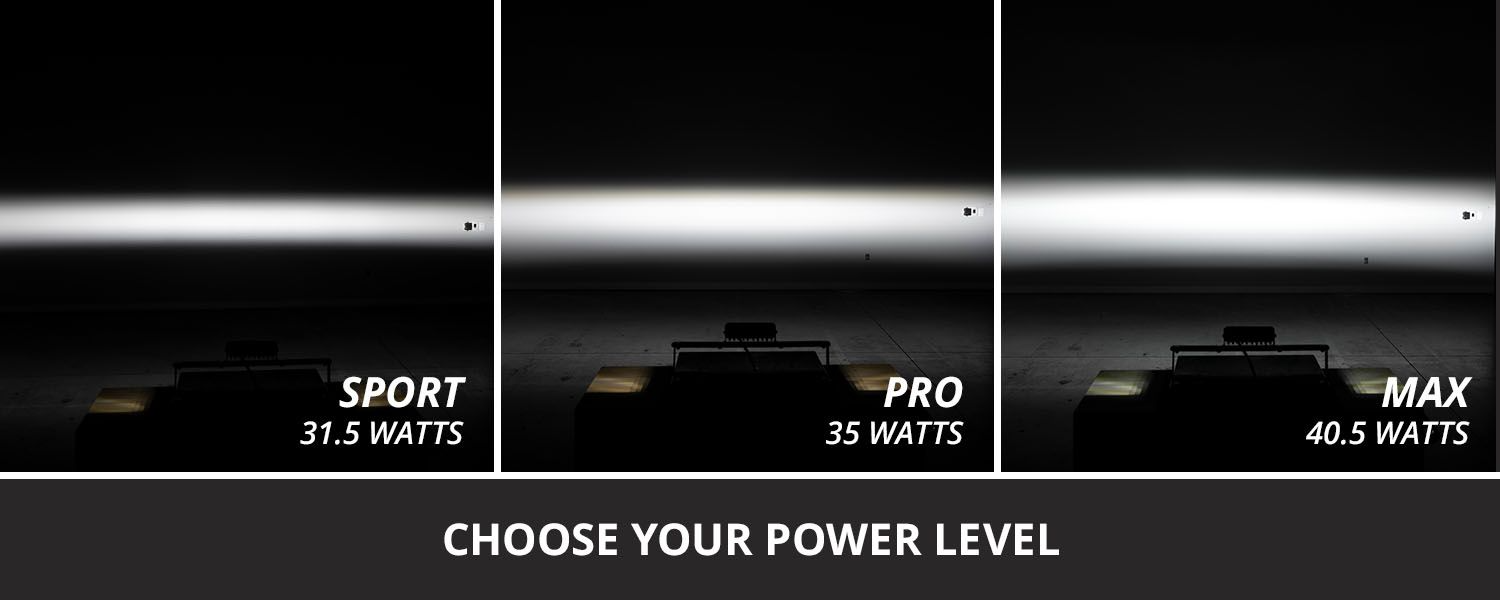

Driving pattern was designed to supplement your high beams. Rather than a simple "spot" pattern, the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds.
Wide pattern provides an extremely wide field of view, without wasting any light in the sky above and provides a 100Wx8H degree spread of light. It was designed to supplement your fog lights and is perfect for driving in inclement weather.

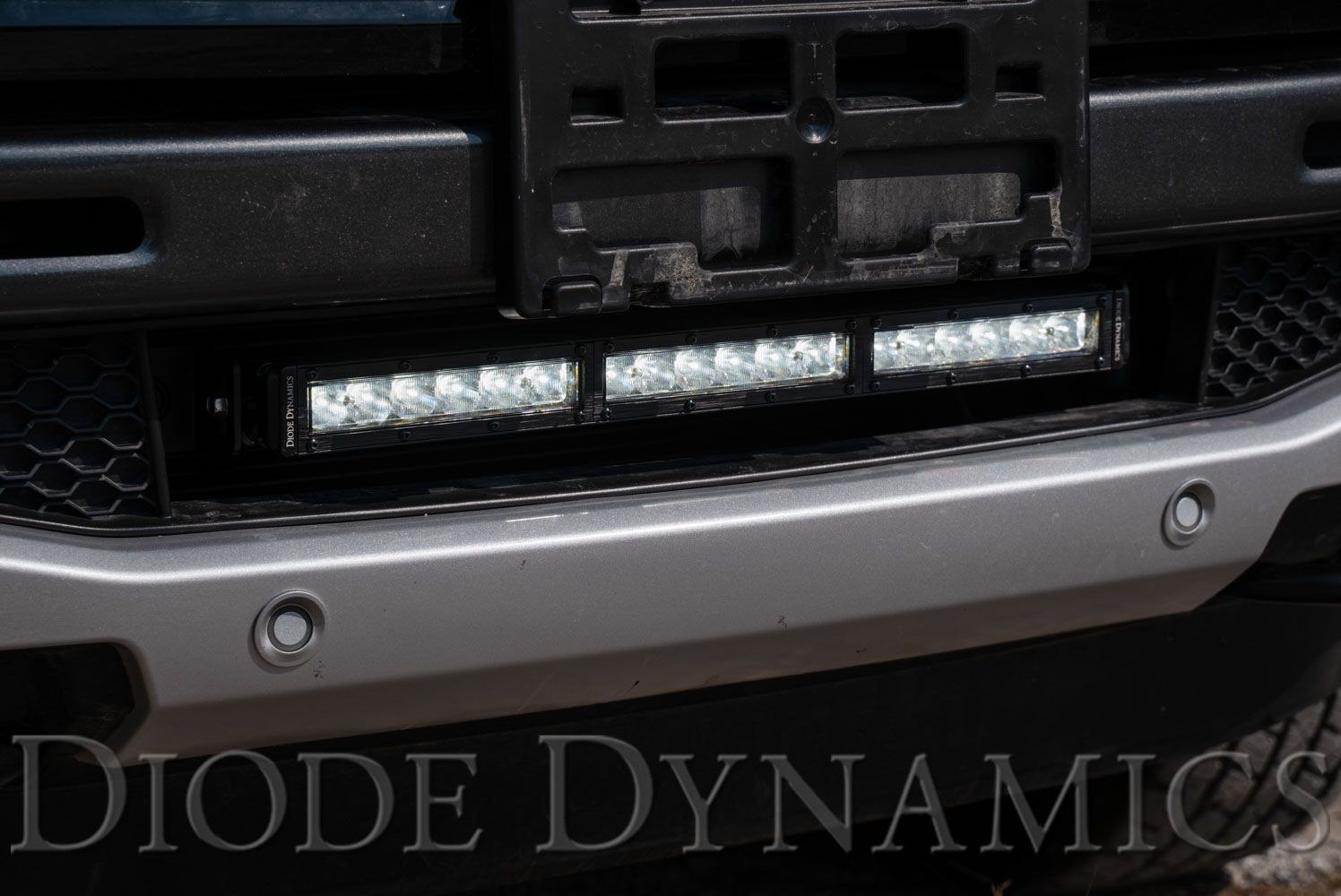

Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 20Wx8H degree pattern while also illuminating the area around it in a full 80Wx50H degree spread. The Stage Series 18" Combo Light Bar features a single flood lens in the middle with two driving lenses on the outer edges.

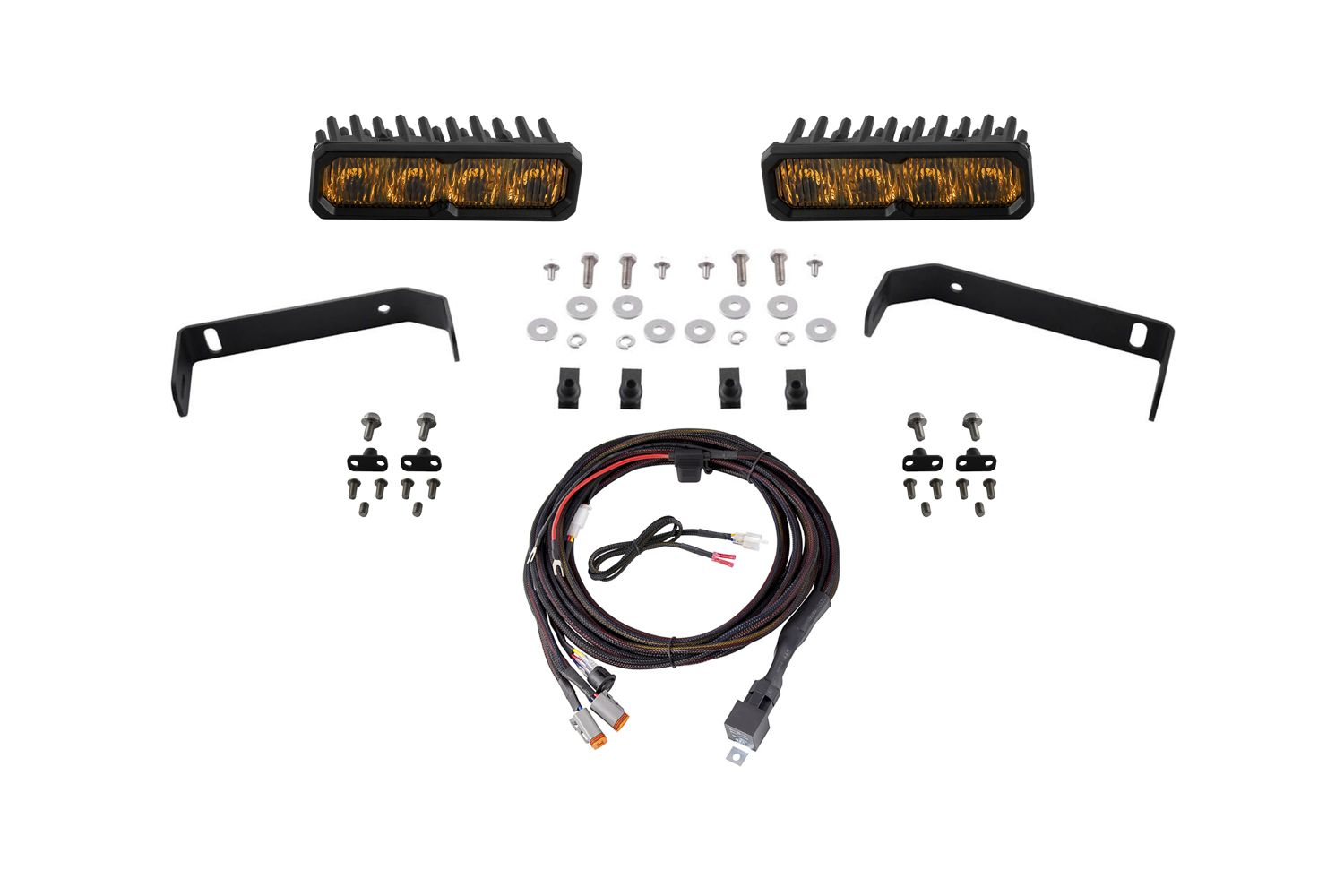

In the Box:
-

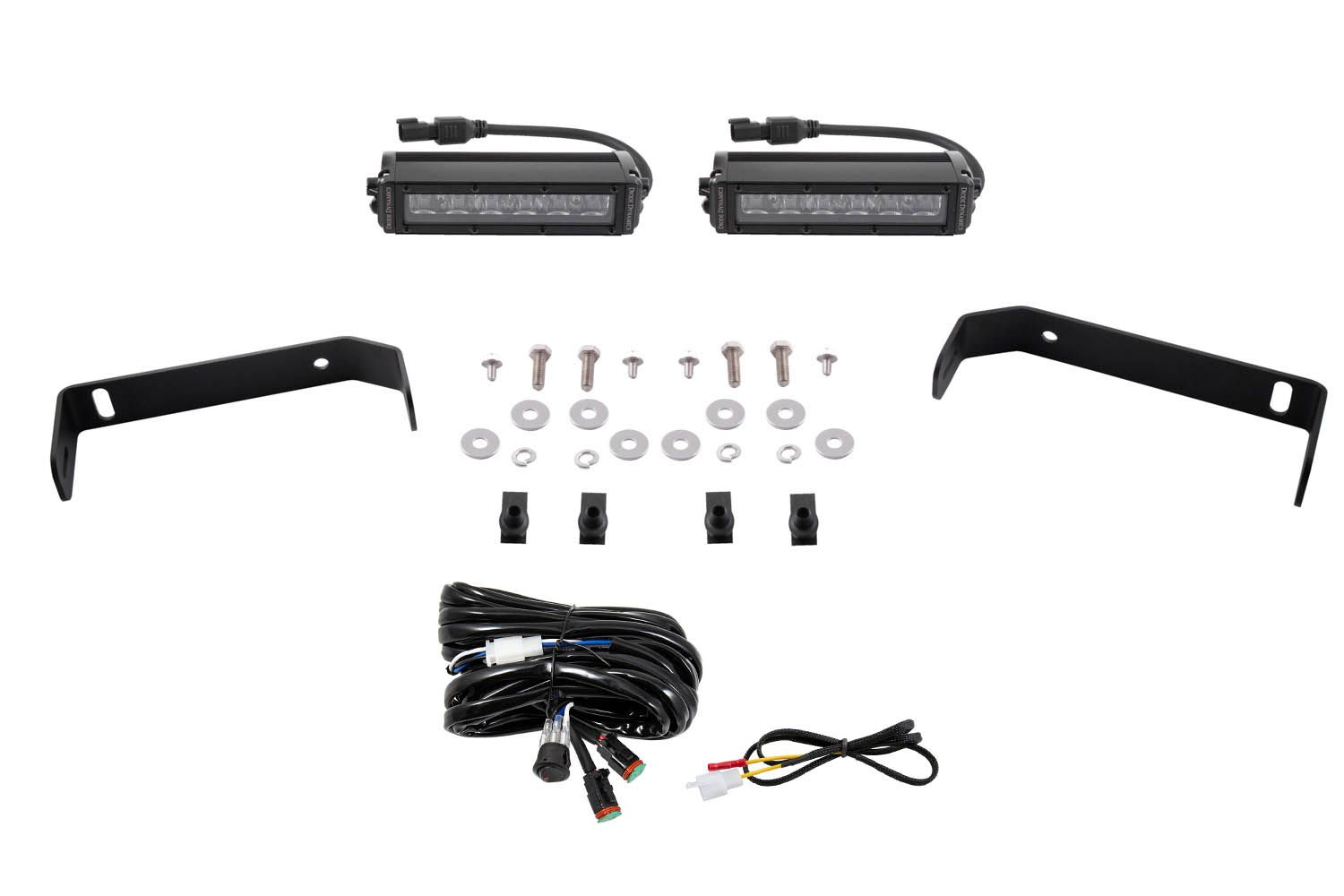

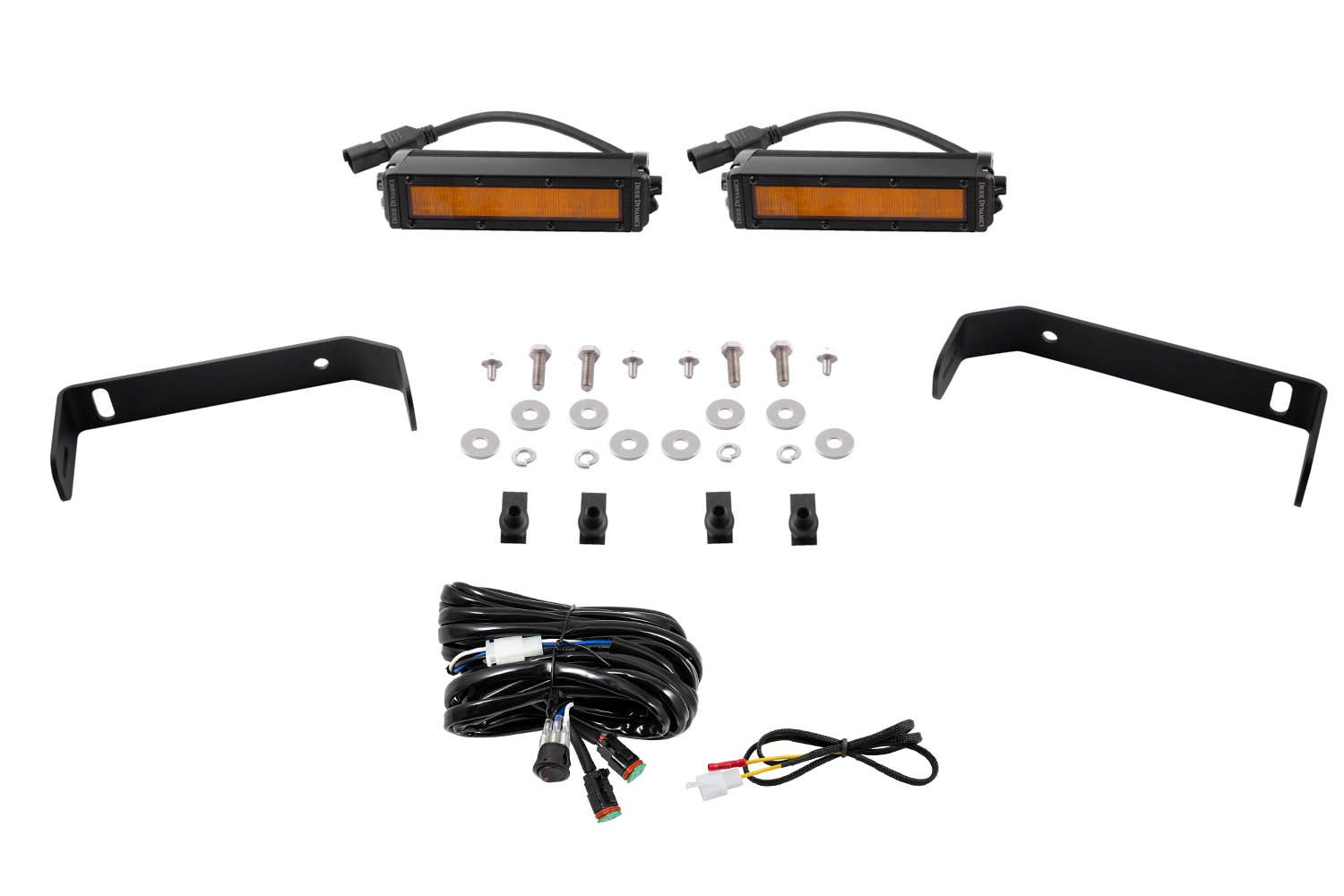

Two 6" Light Bar Kit

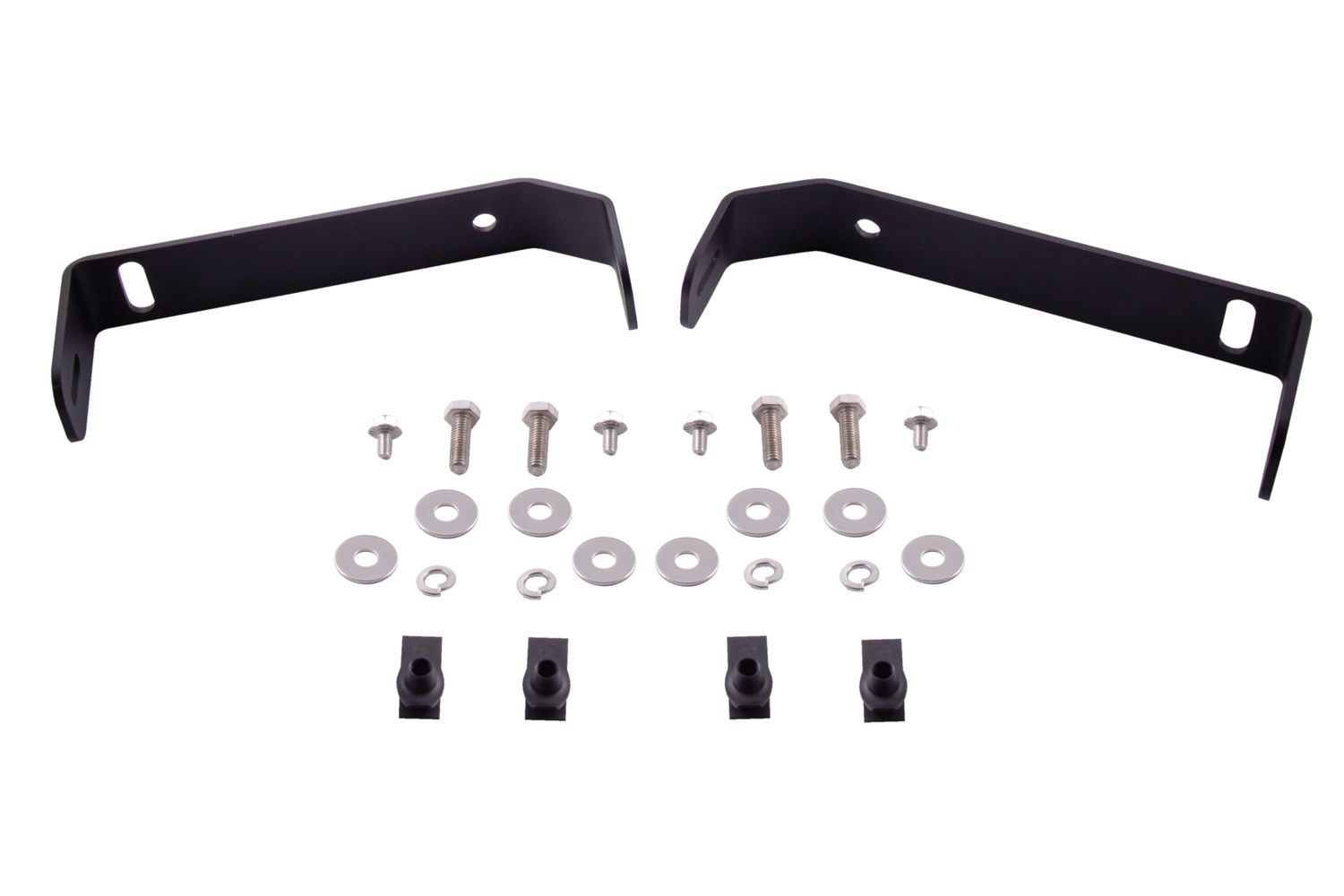

- One (1) application-specific SS6 bracket kit
- Two (2) SS6 6" Stage Series Light Bars
- One (1) Heavy-Duty Dual Output 2-Pin Offroad Wiring Harness
- One (1) Aux Switch Adapter Wire
- All Necessary Hardware
- Installation guide
-

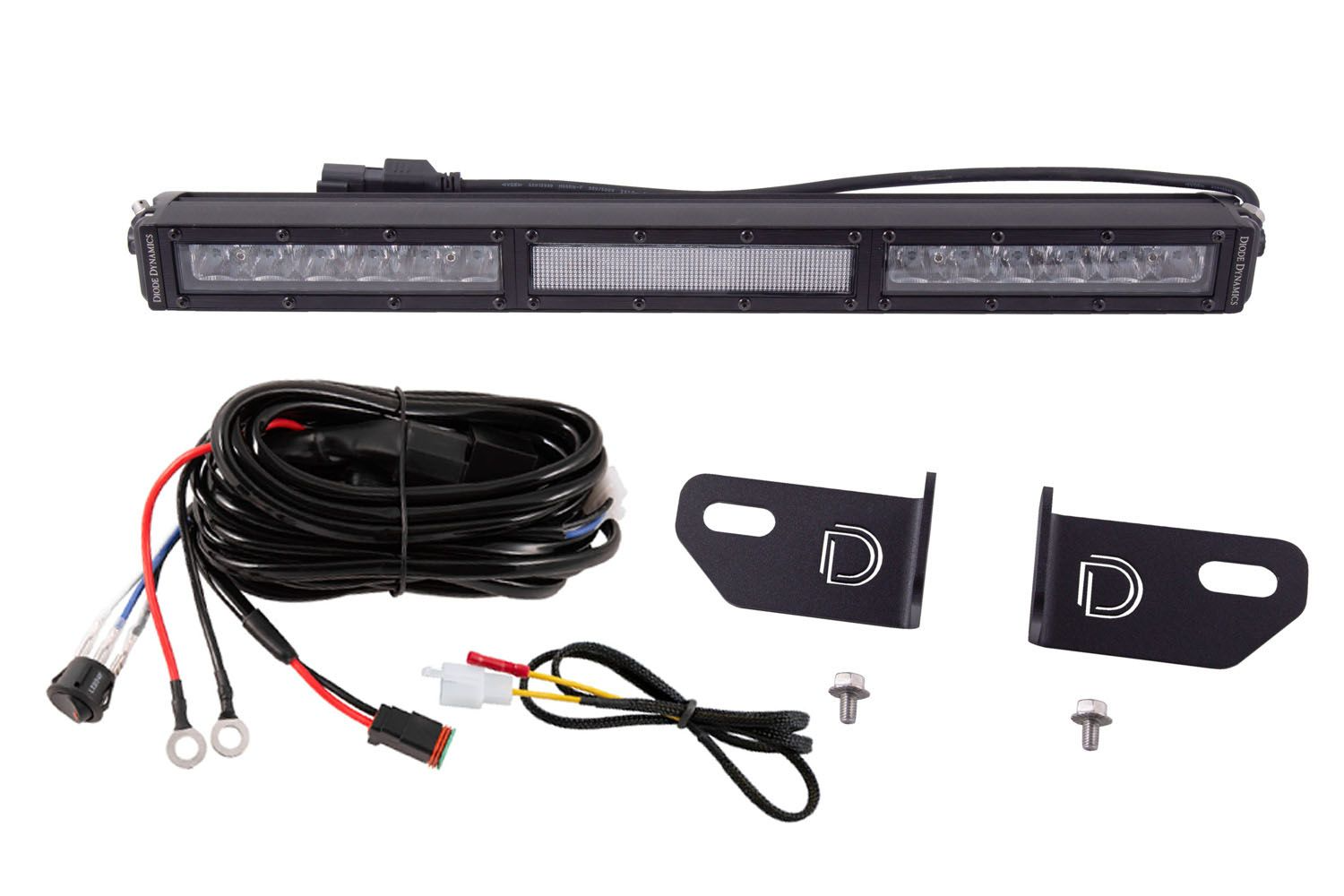

One 18" Light Bar Kit

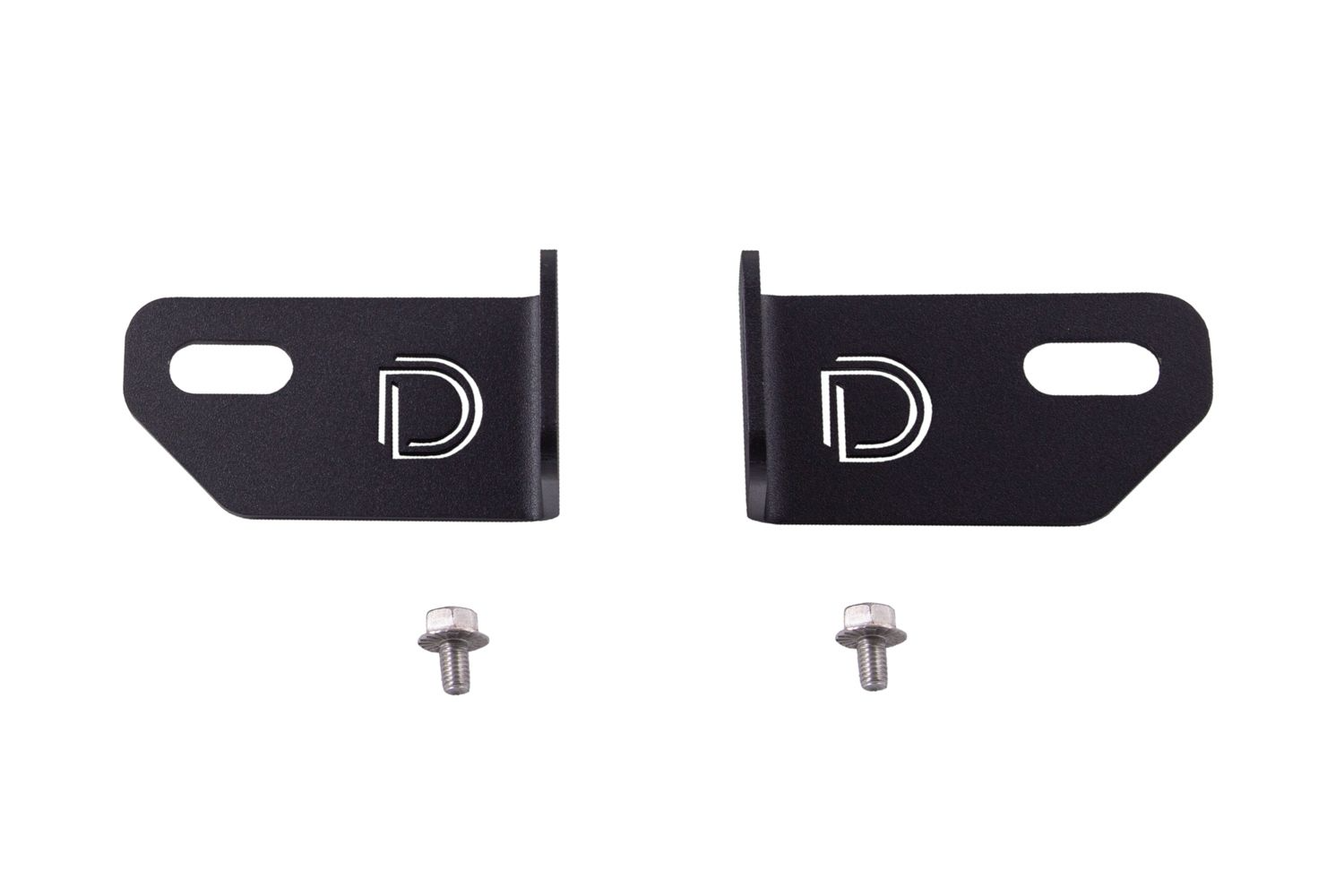

- One (1) application-specific SS18 bracket kit
- One (1) SS18 18" Stage Series Light Bar
- One (1) Heavy-Duty Single Output 2-Pin Offroad Wiring Harness
- One (1) Aux Switch Adapter Wire
- All Necessary Hardware
- Installation guide
NOTE: The 18" kit is not compatible with the factory Adaptive Cruise Control. It will need to be removed in order to install the kit.
