Diode Dynamics Stage Series Fog Pocket Kit for 2020-2022 Ford Super Duty

Diode Dynamics Stage Series Fog Pocket Kit for 2020-2022 Ford Super Duty

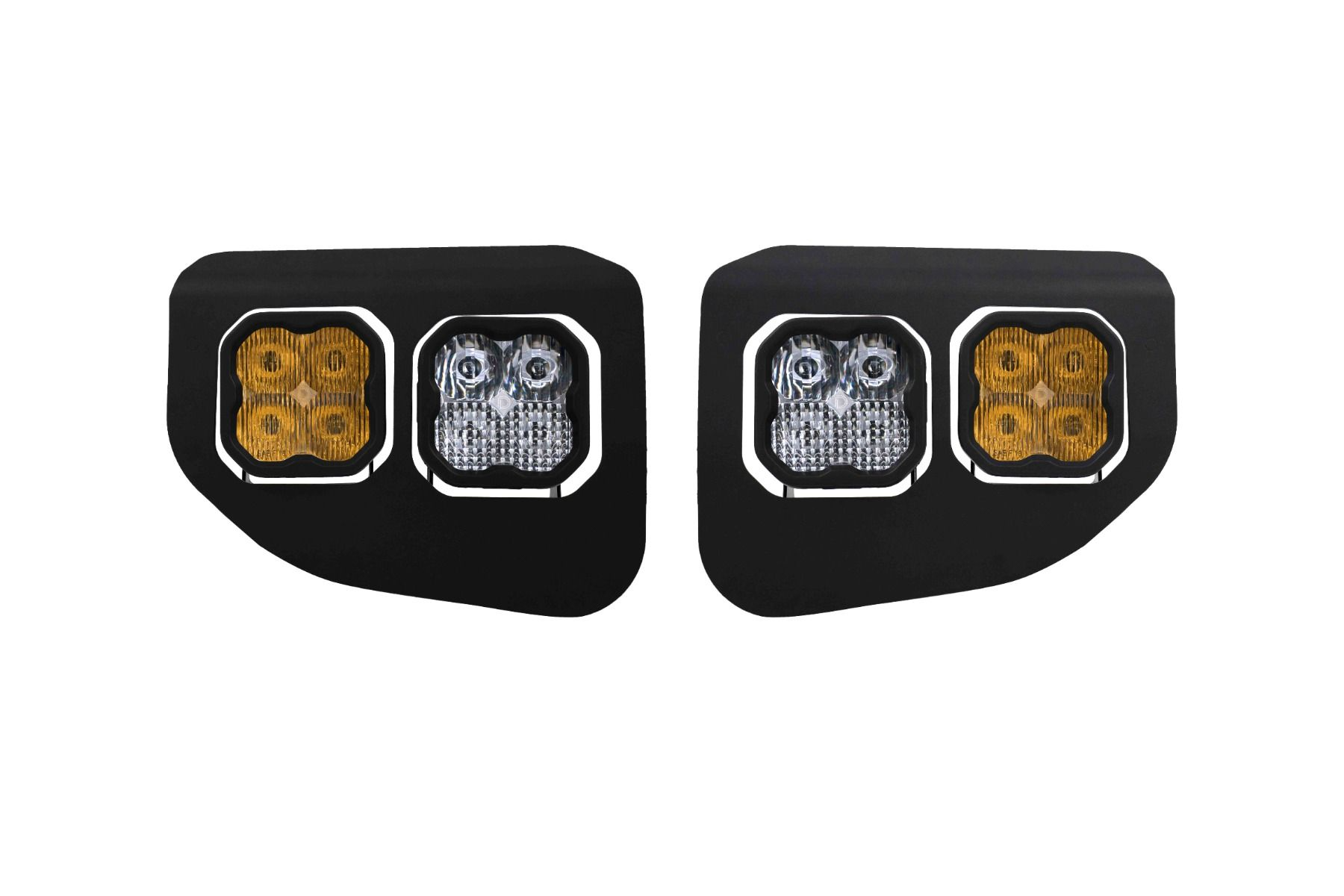

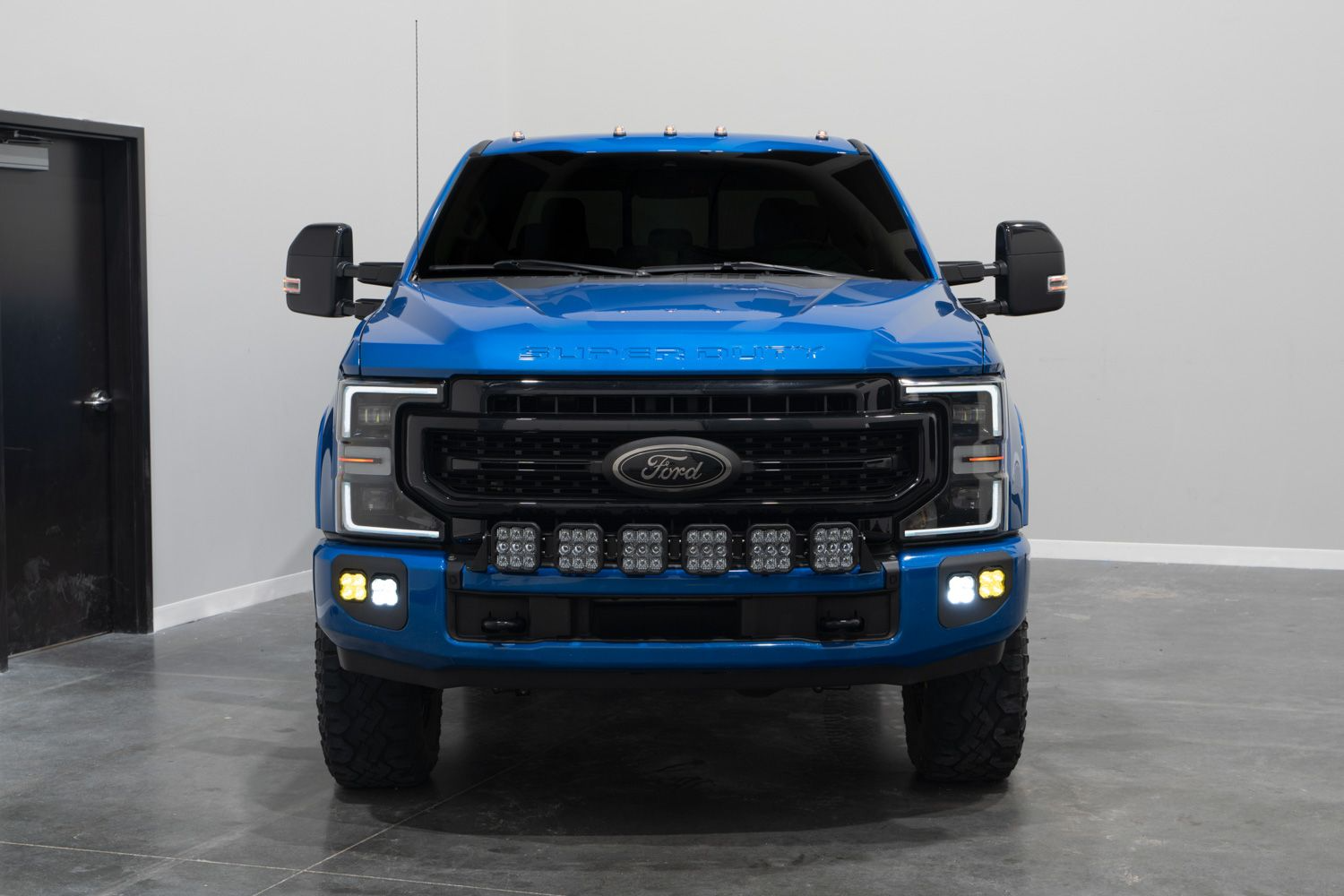

If you are looking to add some serious functionality to your Super Duty, look no further! The Stage Series Fog Pocket Kit for the 2020-2022 Ford Super Duty from Diode Dynamics adds brighter road-legal fog lights and powerful offroad lighting. The CAD-designed brackets allow you to mount four SS3 LED Pods in place of your factory fog light housing, giving your Super Duty an aggressive offroad appearance. With the included harness, you'll be able to switch between road-legal fog lights and offroad lights with ease.

Features

• Bolt-on fitment for 2020-2022 Ford Super Duty.
• Adds brighter SAE-compliant fog lights, and powerful offroad lighting.
• Plug-and-play harness, for independent control of offroad lights.
• Backlight feature provides amber accent light.
• Highly durable powdercoated stainless steel bracket.
• Engineered and assembled in USA.

Lighting for Every Situation. This kit includes two SS3 LED Pods in the SAE-compliant fog beam pattern and two SS3 LED pods in the combo beam pattern. This combination provides ideal light output whether you are on or offroad!

SAE Fog provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It will fully illuminate the area in front of your vehicle.

Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 65x25 degree pattern. The combo lens features a flood optic on one side and a driving optic on the other.

White or Yellow. All Stage Series LED pods are available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road.

Sport, Pro, or Max. Stage Series LED pods are available at three different power levels. All options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. The Sport model uses high-intensity LEDs, and is the best bang for the buck you’ll find. The Pro model steps things up in a big way, with double the total power. Finally, the Max model is designed with cutting-edge automotive emitters, for both high power and extreme intensity. This brand new technology comes at a cost, but if you’re looking for the absolute best in lighting performance, the SS3 Max is the answer.

Backlight Functionality. Each pod in this kit includes a distinctive Amber backlight feature. This integrated backlight gives you an additional accent light, along with the main beam. The backlight on each SS3 fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products. For trucks with factory LED fog lights, the backlight will be powered through the plug-and-play 9006 adapter - no additional wiring needed! For those with factory halogen fog light, the backlight is powered using the included H10-size adapter to tap your desired vehicle function.

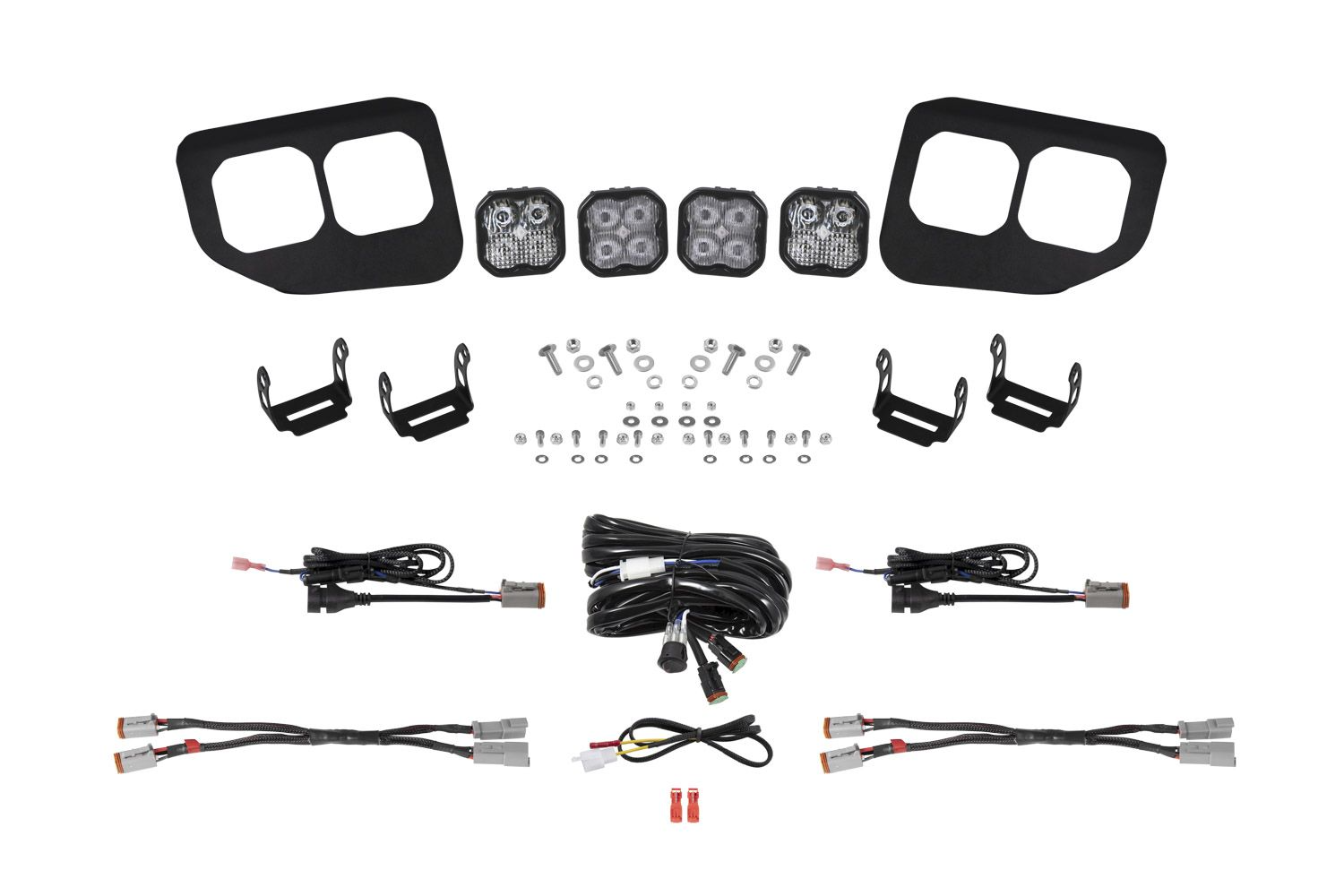

In the Box:

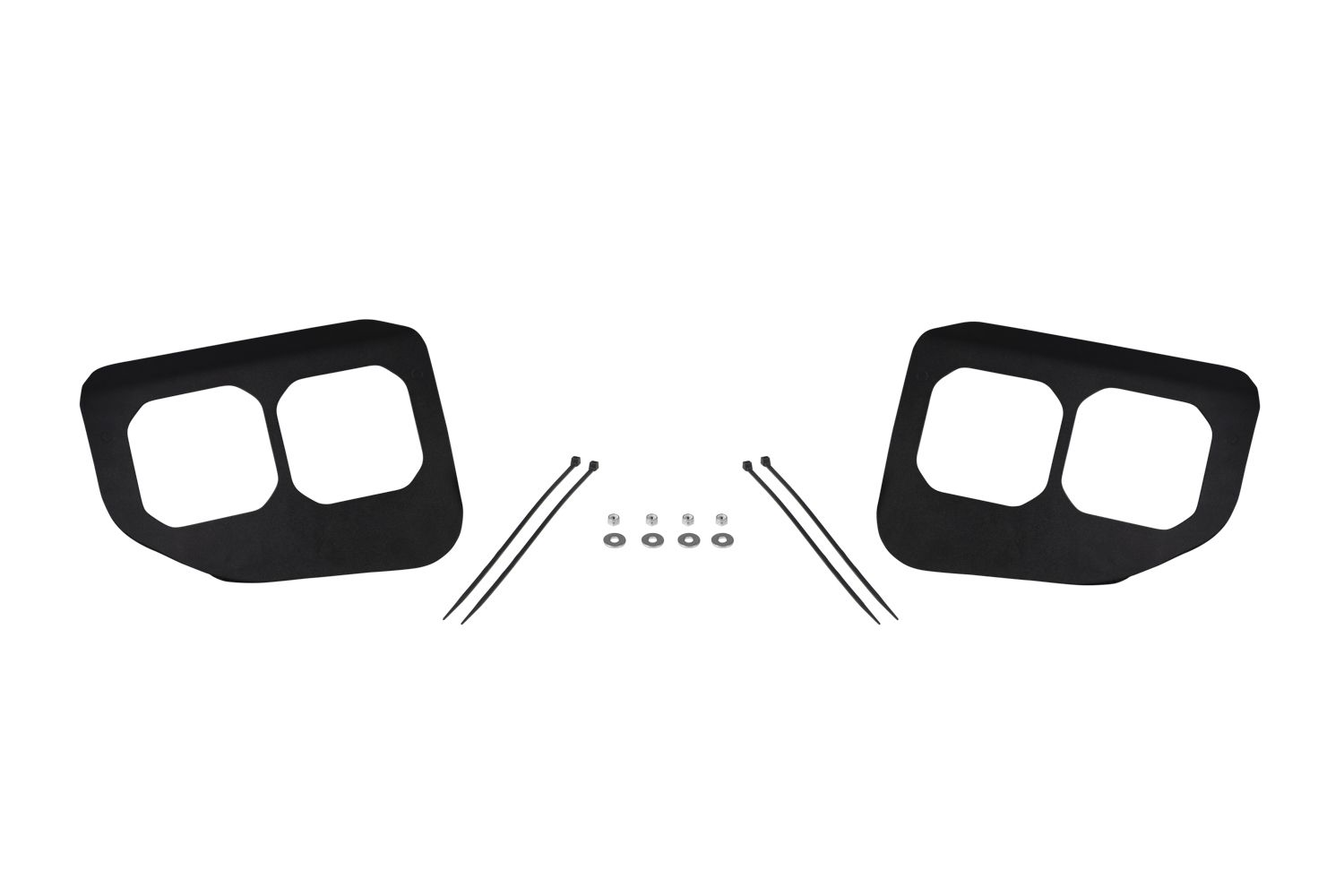

• Two (2) Ford Super Duty Fog Pocket Brackets
• Two (2) SS3 SAE Fog LED pods
• Two (2) SS3 Combo LED pods
• One (1) Dual Fog Pocket Backlight Splitter
• One (1) Heavy Duty Dual Output Wiring Harness
• One (1) 9006 Backlight Tap Wire Kit
• Mounting Hardware and Guide

• The "Yellow" kits include two Yellow SS3 Fog LED pods, and two White SS3 Combo LED pods.
