Name: Diode Dynamics SAE/DOT LED Lightbar Kit for 2014-2021 Toyota Tundra
Brand: Diode Dynamics
SKU: DD6067
Price: 890.92 CAD
Availability: InStock

Diode Dynamics SAE/DOT LED Lightbar Kit for 2014-2021 Toyota Tundra

$890.92

Shipping calculated at checkout.

Quantity

0 in stock

Frequently Purchased Together /// Add On's

[{"id":45856655605914,"title":"Amber Driving","option1":"Amber Driving","option2":null,"option3":null,"sku":"DD6067","requires_shipping":true,"taxable":true,"featured_image":{"id":43007646302362,"product_id":8525782220954,"position":2,"created_at":"2025-06-18T09:47:17-06:00","updated_at":"2025-06-18T09:47:36-06:00","alt":"Diode Dynamics SAE\/DOT LED Lightbar Kit for 2014-2021 Toyota Tundra","width":1500,"height":1000,"src":"\/\/kraveautomotive.ca\/cdn\/shop\/files\/Diode-Dynamics-SAE-DOT-LED-Lightbar-Kit-for-2014-2021-Toyota-Tundra-1.png?v=1750261656","variant_ids":[45856655605914]},"available":true,"name":"Diode Dynamics SAE\/DOT LED Lightbar Kit for 2014-2021 Toyota Tundra - Amber Driving","public_title":"Amber Driving","options":["Amber Driving"],"price":89092,"weight":11340,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":"Diode Dynamics SAE\/DOT LED Lightbar Kit for 2014-2021 Toyota Tundra","id":34654443208858,"position":2,"preview_image":{"aspect_ratio":1.5,"height":1000,"width":1500,"src":"\/\/kraveautomotive.ca\/cdn\/shop\/files\/Diode-Dynamics-SAE-DOT-LED-Lightbar-Kit-for-2014-2021-Toyota-Tundra-1.png?v=1750261656"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45856655638682,"title":"White SAE\/DOT Driving","option1":"White SAE\/DOT Driving","option2":null,"option3":null,"sku":"DD6064","requires_shipping":true,"taxable":true,"featured_image":{"id":43007646171290,"product_id":8525782220954,"position":3,"created_at":"2025-06-18T09:47:17-06:00","updated_at":"2025-06-18T09:47:36-06:00","alt":"Diode Dynamics SAE\/DOT LED Lightbar Kit for 2014-2021 Toyota Tundra","width":1500,"height":1000,"src":"\/\/kraveautomotive.ca\/cdn\/shop\/files\/Diode-Dynamics-SAE-DOT-LED-Lightbar-Kit-for-2014-2021-Toyota-Tundra-2.png?v=1750261656","variant_ids":[45856655638682]},"available":true,"name":"Diode Dynamics SAE\/DOT LED Lightbar Kit for 2014-2021 Toyota Tundra - White SAE\/DOT Driving","public_title":"White SAE\/DOT Driving","options":["White SAE\/DOT Driving"],"price":89092,"weight":11340,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":"Diode Dynamics SAE\/DOT LED Lightbar Kit for 2014-2021 Toyota Tundra","id":34654443176090,"position":3,"preview_image":{"aspect_ratio":1.5,"height":1000,"width":1500,"src":"\/\/kraveautomotive.ca\/cdn\/shop\/files\/Diode-Dynamics-SAE-DOT-LED-Lightbar-Kit-for-2014-2021-Toyota-Tundra-2.png?v=1750261656"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45856657637530,"title":"White SAE Fog","option1":"White SAE Fog","option2":null,"option3":null,"sku":"DD6065","requires_shipping":true,"taxable":true,"featured_image":{"id":43007646269594,"product_id":8525782220954,"position":5,"created_at":"2025-06-18T09:47:17-06:00","updated_at":"2025-06-18T09:47:36-06:00","alt":"Diode Dynamics SAE\/DOT LED Lightbar Kit for 2014-2021 Toyota Tundra","width":1500,"height":1000,"src":"\/\/kraveautomotive.ca\/cdn\/shop\/files\/Diode-Dynamics-SAE-DOT-LED-Lightbar-Kit-for-2014-2021-Toyota-Tundra-3.png?v=1750261656","variant_ids":[45856657637530]},"available":true,"name":"Diode Dynamics SAE\/DOT LED Lightbar Kit for 2014-2021 Toyota Tundra - White SAE Fog","public_title":"White SAE Fog","options":["White SAE Fog"],"price":89092,"weight":11340,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":"Diode Dynamics SAE\/DOT LED Lightbar Kit for 2014-2021 Toyota Tundra","id":34654443143322,"position":5,"preview_image":{"aspect_ratio":1.5,"height":1000,"width":1500,"src":"\/\/kraveautomotive.ca\/cdn\/shop\/files\/Diode-Dynamics-SAE-DOT-LED-Lightbar-Kit-for-2014-2021-Toyota-Tundra-3.png?v=1750261656"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45856657670298,"title":"Amber SAE Fog","option1":"Amber SAE Fog","option2":null,"option3":null,"sku":"DD6068","requires_shipping":true,"taxable":true,"featured_image":{"id":43007646072986,"product_id":8525782220954,"position":4,"created_at":"2025-06-18T09:47:17-06:00","updated_at":"2025-06-18T09:47:36-06:00","alt":"Diode Dynamics SAE\/DOT LED Lightbar Kit for 2014-2021 Toyota Tundra","width":1500,"height":1000,"src":"\/\/kraveautomotive.ca\/cdn\/shop\/files\/Diode-Dynamics-SAE-DOT-LED-Lightbar-Kit-for-2014-2021-Toyota-Tundra-4.png?v=1750261656","variant_ids":[45856657670298]},"available":true,"name":"Diode Dynamics SAE\/DOT LED Lightbar Kit for 2014-2021 Toyota Tundra - Amber SAE Fog","public_title":"Amber SAE Fog","options":["Amber SAE Fog"],"price":89092,"weight":11340,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":"Diode Dynamics SAE\/DOT LED Lightbar Kit for 2014-2021 Toyota Tundra","id":34654443110554,"position":4,"preview_image":{"aspect_ratio":1.5,"height":1000,"width":1500,"src":"\/\/kraveautomotive.ca\/cdn\/shop\/files\/Diode-Dynamics-SAE-DOT-LED-Lightbar-Kit-for-2014-2021-Toyota-Tundra-4.png?v=1750261656"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

Diode Dynamics SAE/DOT LED Lightbar Kit for 2014-2021 Toyota Tundra

The LED Driving Light Kit for the 2014+ Toyota Tundra from Diode Dynamics allows you to mount a pair of SS12 Stage Series 12" Light Bars behind the factory grille. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required!

Features

Direct fitment on 2014+ Toyota Tundra.
Street-legal output as Driving lights (Please check your local laws and regulations for aiming, installation, and applicability).
Plug-and-play wiring harness included to control through your factory high beam switch.
Highly durable powdercoated steel construction.
Utilizes existing mounting points and hardware for a simple installation.
CAD-designed for perfect fitment.

Designed For Performance. Using optical simulation modeling, Diode Dynamics Stage Series LED light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. These light bars shine light in a highly-functional and useful beam pattern, much more focused than older LEDs on the market.

Street Legal Output. This kit isn't just for off road! It is legal for on-road use as driving lights (Please check your local laws and regulations for aiming, installation, and applicability). With the included plug-and-play high-beam adapter, you can control the kit through your factory high-beam switch.

Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

Driving pattern was designed to supplement your high beams. Rather than a simple "spot" pattern, the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds.

Wide pattern provides an extremely wide field of view, without wasting any light in the sky above and provides a 100Wx8H degree spread of light. It was designed to supplement your fog lights and is perfect for driving in inclement weather.

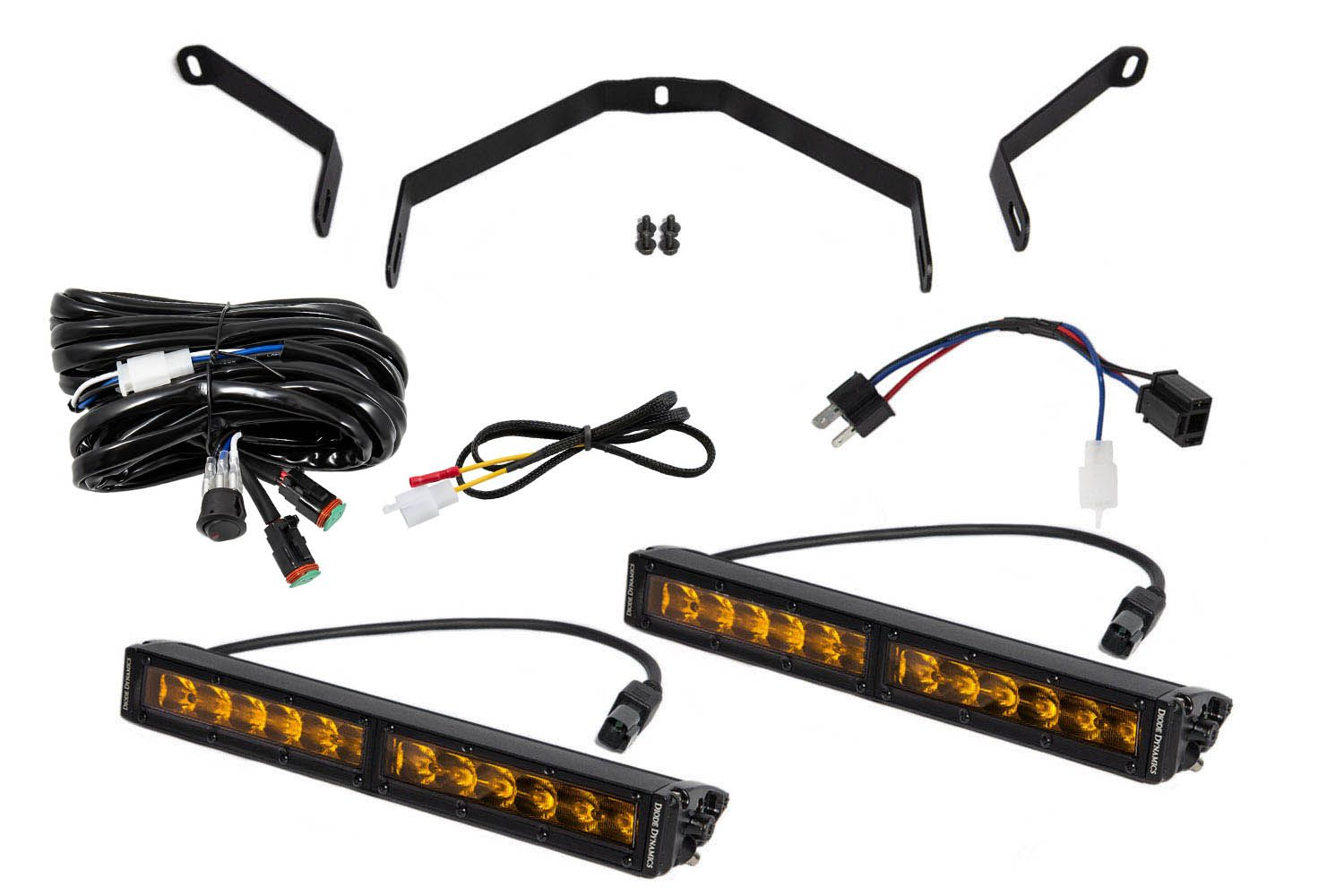

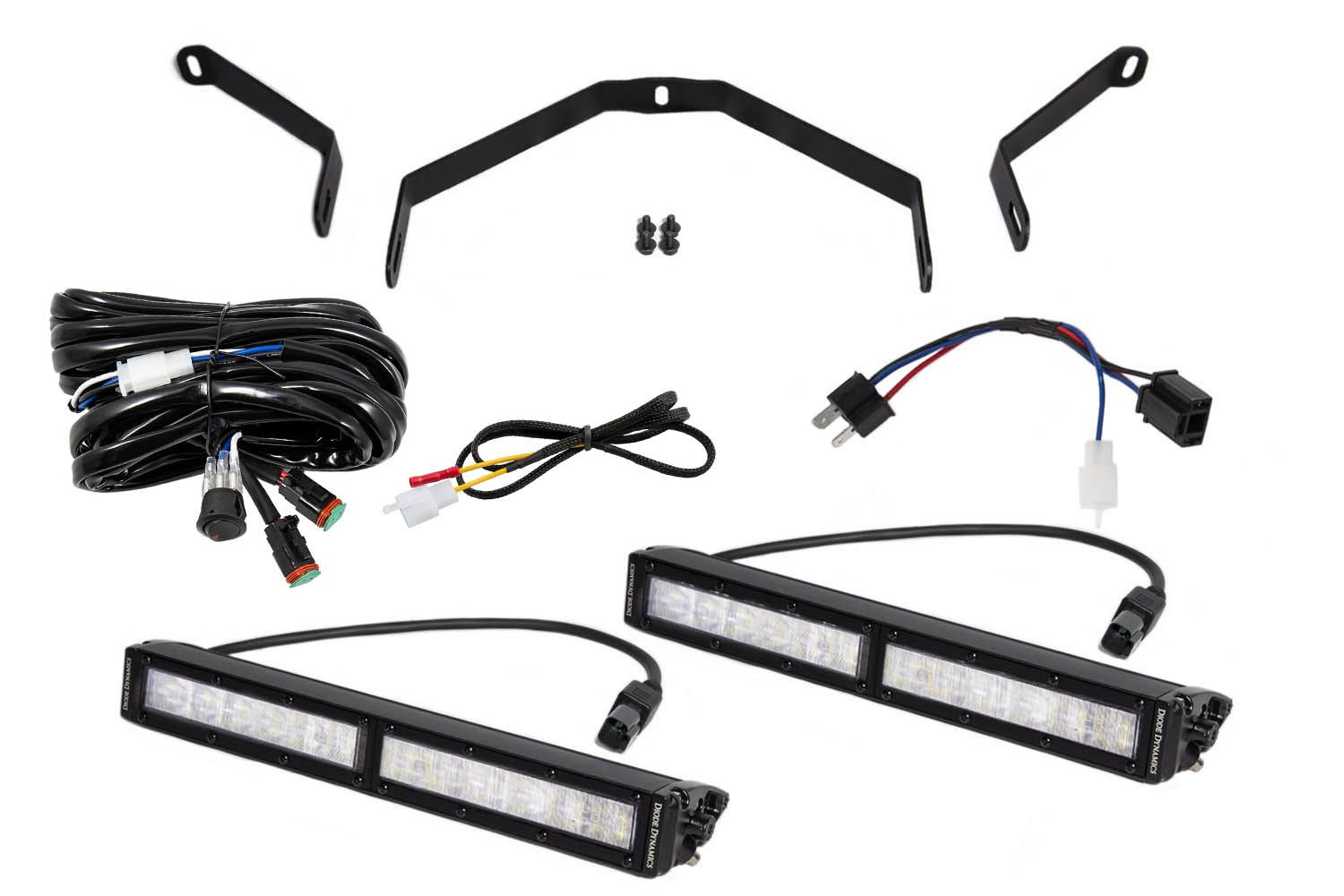

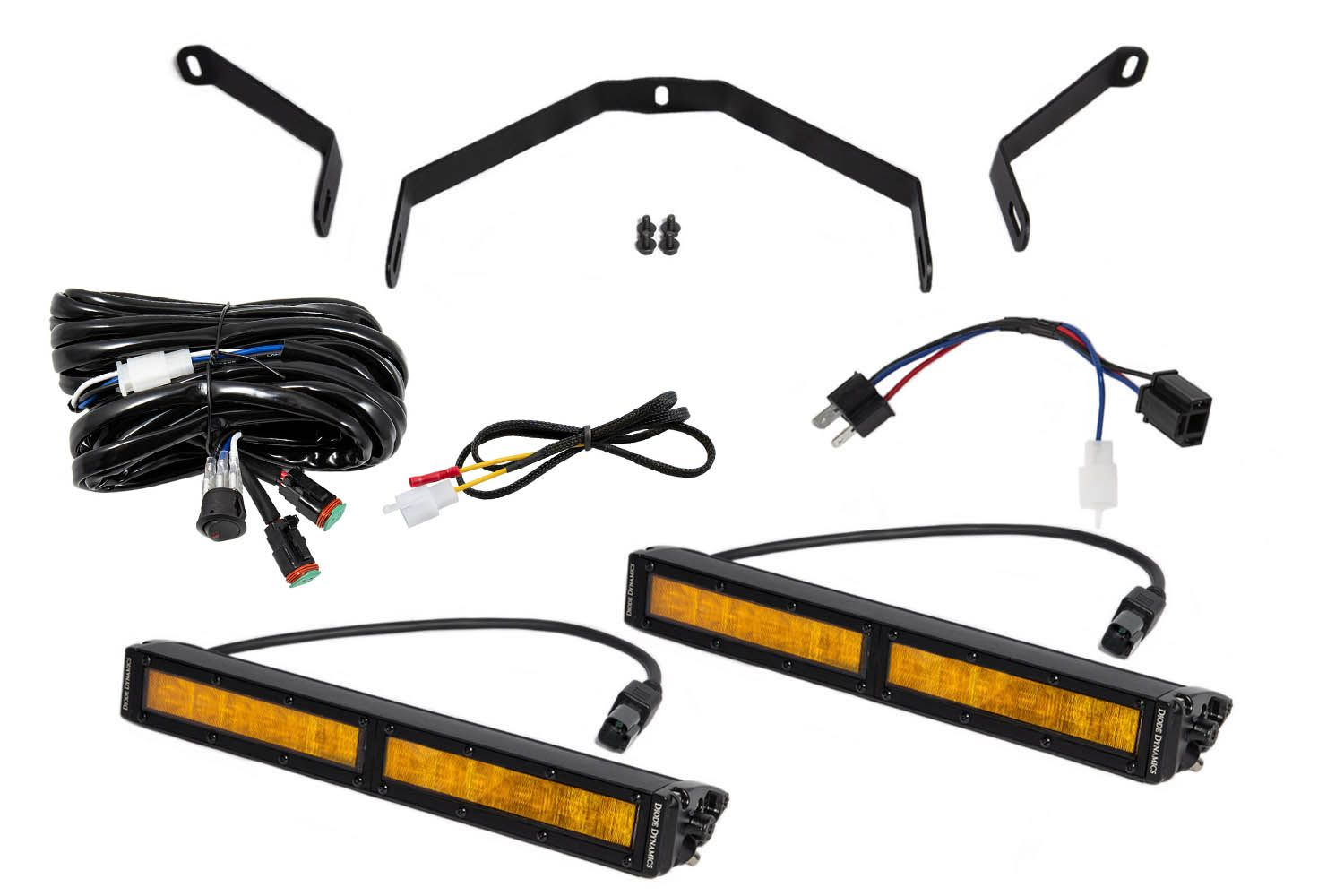

In the Box:

Three (3) Application-specific heavy-duty steel brackets for installation on 2014+ Toyota Tundra
Two (2) SS12 Stage Series 12" Light Bars
One (1) Heavy-Duty Dual Output 2-Pin Offroad Wiring Harness
One (1) Aux Switch Adapter Wire
One (1) H4 High-beam adapter
All Necessary Hardware
Installation Guide

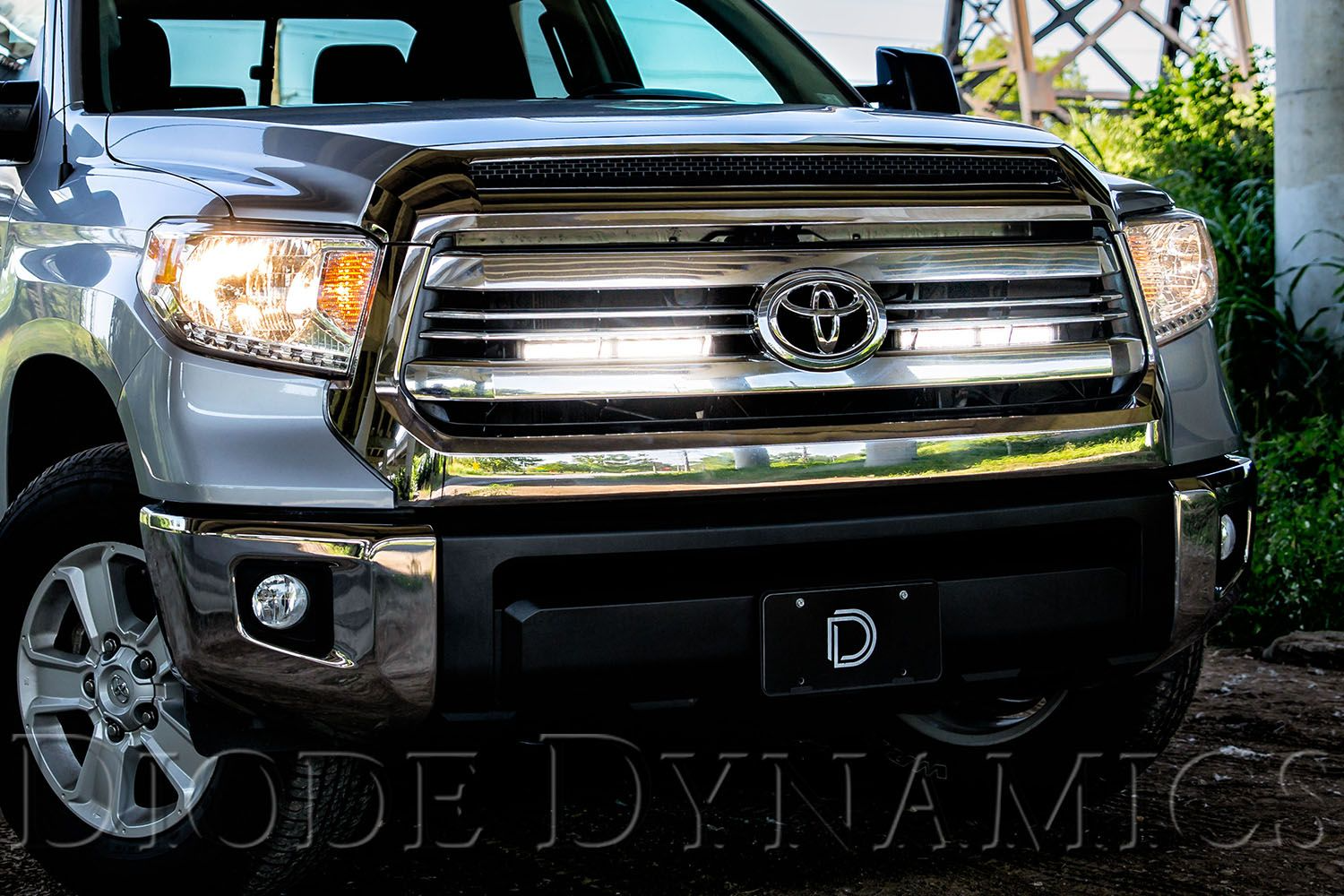

NOTE: This product is intended for best application on the SR and 2014-2017 SR5 model grille, as pictured. This product is compatible with the Sport and 2018-2021 SR5 models; however, some of the light will be blocked by the grille. This product is also compatible with Platinum models. The H4 high beam adapter included in this kit will not be compatible with LED headlights.

Specifications
Lens Color/Optics
Peak Beam Intensity
(candela)

Illuminance
(lux @ 10m) Measured Output
(lumens) Raw Output
(lumens) Output Color
SS6 White Driving 55,000 cd 550 lux 1,400 lm 2,280 lm 6000K White
SS6 White Wide 13,000 cd 130 lux 1,400 lm 2,280 lm 6000K White
SS12 White Driving 110,000 cd 1,110 lux 2,800 lm 4,560 lm 6000K White
SS12 White Wide 26,000 cd 260 lux 2,800 lm 4,560 lm 6000K White
