Diode Dynamics Elite Series Fog Lamps for 2015-2020 Ford F-150/2017-2022 Super Duty

Diode Dynamics Elite Series Fog Lamps for 2015-2020 Ford F-150/2017-2022 Super Duty

Introducing the Elite Series Fog Lamps: the first OE-style fog lights that were designed for true performance. With a custom-engineered patent-pending optic, multi-die automotive emitters, and high-power full-copper circuit boards, the Elite Series fog light for the Ford F-150 and Super Duty F250/F350 delivers double the output compared to factory halogen lamps. With a plug-and-play installation, this is one of the easiest and most effective upgrades you can make to improve your visibility in inclement weather.

Features

• Provides double the output compared to factory halogen Ford fog light
• Sharp, asymmetric beam pattern achieves 100-degree total spread
• Distinctive integrated amber backlight
• Road-legal fog light (SAE F3 compliant)
• Plug and play main beam, no modification needed
• Engineered and assembled in USA


White or Yellow. All Elite Series Fog Lamps are available in a cool white or selective yellow output color.

The white is a 6000K color temperature, which is a true cool white output. This will perfectly match other LEDs on your vehicle, such as DRLs or running lights. The white option also offers a premium BMW-style color band at the very top of the beam pattern.

The selective yellow option is 3000K in color temperature, which is great for high contrast in inclement weather, or in providing a distinctive look on the road. The yellow lamp consists of a yellow multi-die LED emitter paired with a yellow-tinted lens, to provide unmatched output and optical efficiency, even with the intense yellow output.

Backlight Functionality. All Elite Series Fog Lamps come standard with an integrated amber accent light. This backlight feature fully illuminates the main lens with amber LEDs, intended to match other position, sidemarker, or corner lights. This feature can be wired to any constant 12-volt source for your desired vehicle function, using the included tap connector. It will shut off automatically if the main beam is activated. Check local laws and regulations for acceptable use.

Bolt-On Fitment. Elite Series Fog Lamps were designed using a 3D scanner and installed on the vehicle in Diode Dynamic's testing garage, so you can rest assured they will be a perfect fit. They can be installed in minutes. Simply remove your factory fog light assembly and these will bolt right in its place, using sturdy glass-fiber-reinforced brackets. With built-in adjustment, the lamps can be aimed after installation. To wire them up, a pair of waterproof plug-and-play adapters are included to connect the lights to your factory bulb sockets.

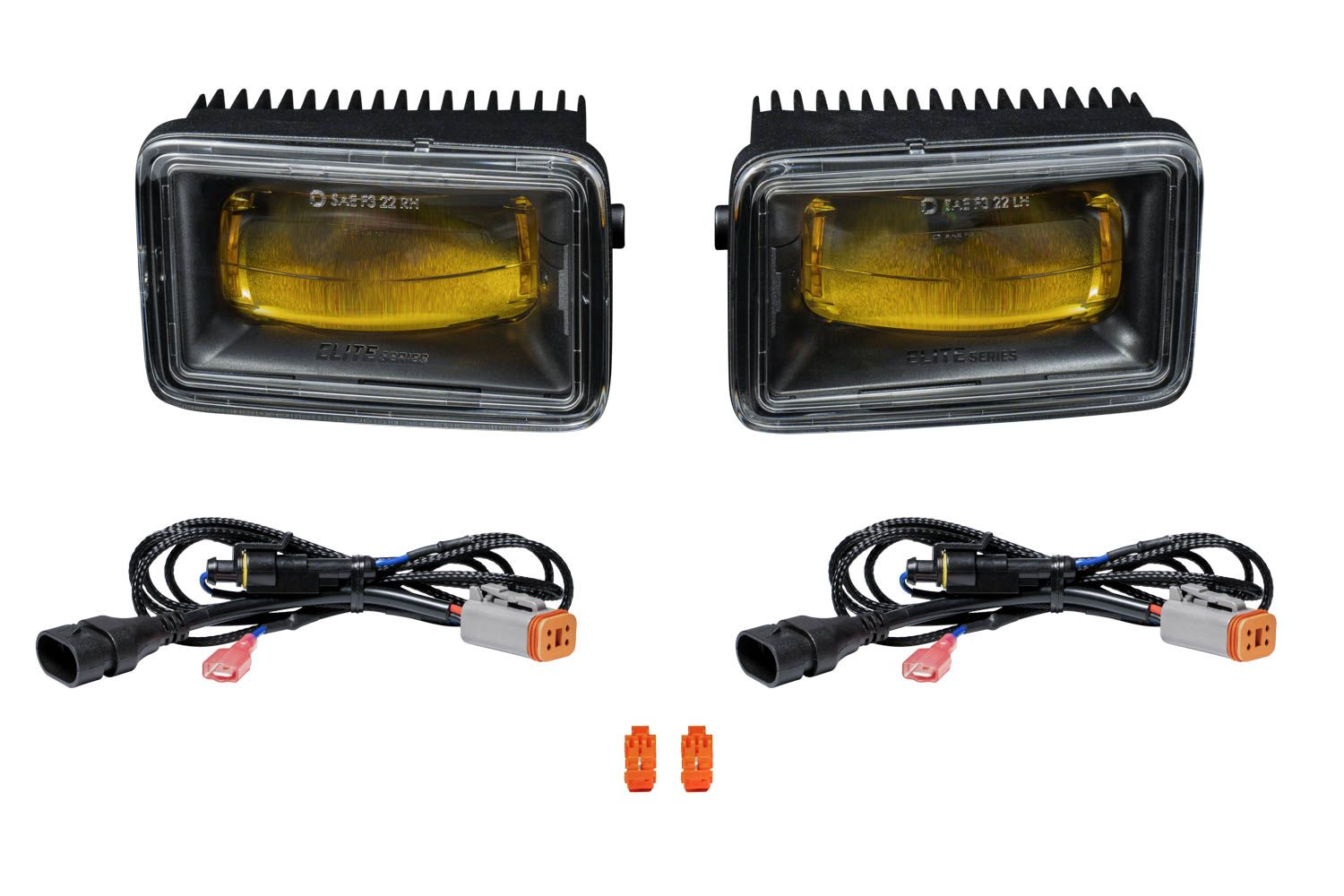

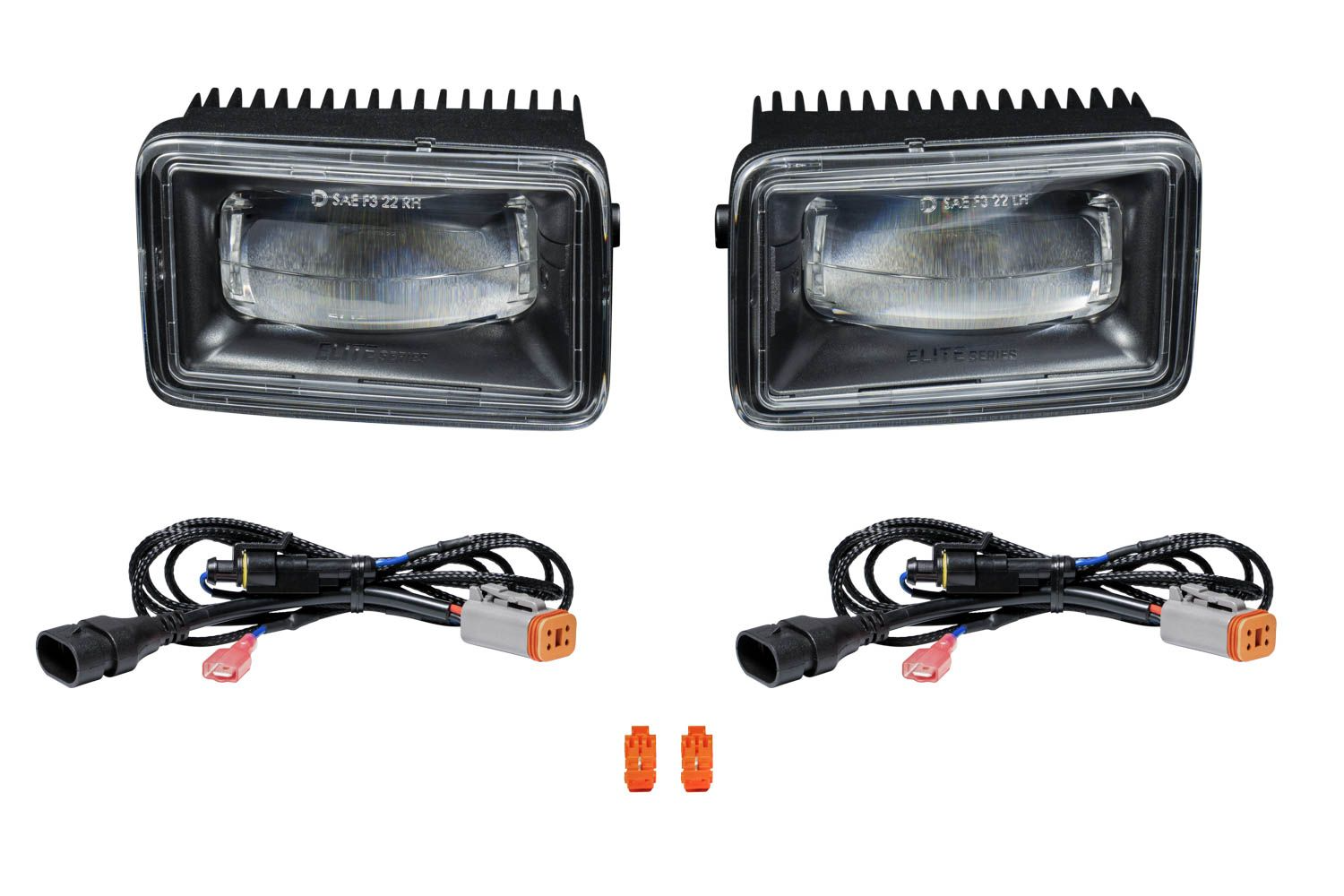

In the Box:

• Two (2) Elite Series Type F2 fog lamps
• Two (2) 9006 4-pin DT backlight tap wires
• Two (2) T-taps
• Mounting guide


Note: This kit is a replacement for OEM fog lamps. If your vehicle does not have fog lamps, additional hardware and wiring may be needed for installation.
