Carli Suspension 2017+ Ford F-450 Super Duty E-Venture Level Height Suspension System

Carli Suspension 2017+ Ford F-450 Super Duty E-Venture Level Height Suspension System

The future of the HD truck suspension world is here. Carli suspension has spent months developing this dynamic valving shock package that responsively and constantly adapts to the terrain for the smoothest ride possible. An on board computer and advanced algorithm constantly adjusts the shocks hundreds of times per second. Carli pre-programed three presets for highway, rock crawling, and high speed off road driving. This is the best option on the market for level height F-450 suspension!

The system uses a sensor mounted on top of the engine to determine vehicle pitch/roll as well as sensors tied into the OBD2 to read the truck's speed, brake pedal position, accelerator pedal position, and steering wheel rotation. That info then gets interpreted by an algorithm to allow individual adjustment of each shock.

Damping is variable in any setting, meaning the truck can be supple on small chatter, then detect a large impact, rise or dip, and ramp up instantly. That variable damping dramatically reduces body roll in corners in any setting as well and allows for insane small bump sensitivity without giving up big hit composure. This system will be available for both 2.5 and 4.5 heights.

This system fits Ford F-450 4x4 trucks from 2017 to current.

SPECIFICATIONS

• Approximately 2.5" Front Lift on 2020+ trucks
• Dramatically improved on and off road performance
• Custom coil spring rate
• Maintains steering geometry

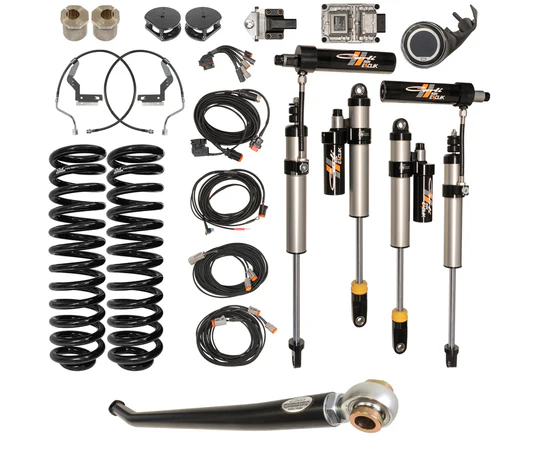

COMPONENTS

• Front Leveling Coils

• Carli/SDI Custom Tuned 2.5" Shocks, Harnesses, ECU, Touch Screen, & Long Bed Extension Harness
• Front Brake Lines

• 2° Caster Shims

• High Clearance Bump Stop Drops, Front

• Track Bar
