Warn Zeon XD 12-S Winch - 110012

Warn Zeon XD 12-S Winch - 110012

SKU: WAR110012

Regular price$2,440.00
/
Shipping calculated at checkout.

For Pre-Order products that are not currently in stock please refer to our Manufacturers lead time page here. If you have any questions please feel free to email us at online@kraveautomotive.ca



0 in stock

 More payment options

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Frequently Purchased Together /// Add On's

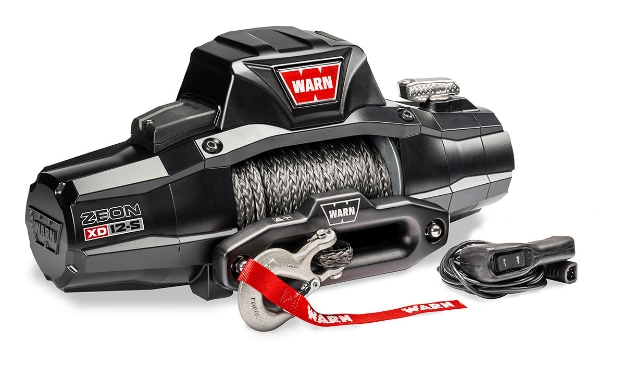

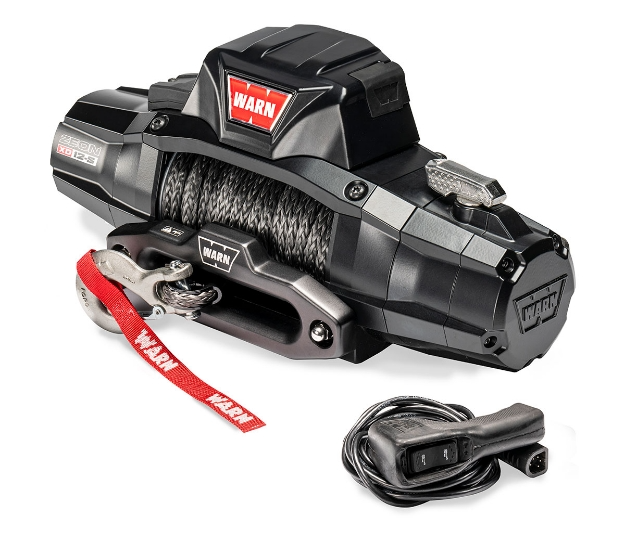

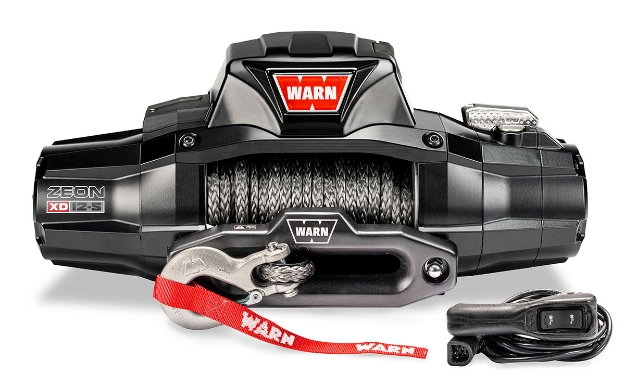

Warn Zeon XD 12-S Winch - 110012

Redesigned and retooled from the ground up for ultimate performance and durability— ZEON XD is there for the times it just has to work, in all conditions. And with the industry’s best warranty, fastest line-speed, and most robust waterproof sealing, ZEON XD is the ultra-reliable recovery tool you can count on when you need it most.

  • Engineered, tested, and assembled in Clackamas, Oregon, USA.
  • New high-performance, high-efficiency motor and geartrain delivers blazing fast no-load line speeds of up to 40 ft/min— the fastest in its class.
  • Reliable waterproof construction features o-ring rubber sealing. The entire winch is IP68K submersion and IP69K high pressure spray rated.
  • Upgraded, corrosion resistant black fasteners and new, UV resistant bus bar covers meet the highest OEM-grade specifications.
  • Full metal armor protects components from impact and damage.
  • WARN Spydura synthetic rope is strong, lightweight, easy-to-handle, with heat-resistant inner wraps and abrasion sleeve.
  • Upgraded black aluminum fairlead is made of forged 6061-T6 billet aluminum, giving superior corrosion, impact, salt, weather, and UV-resistance for long-lasting good looks.
  • Albright contactor control and bus bars for the ultimate in electrical reliability and efficiency.
  • Available in 10,000 lb. and 12,000 lb. capacities, with synthetic rope, for a variety of trucks, Jeeps, and SUVs
  • Includes a durable waterproof corded remote with 12’ lead, and the HUB receiver for 100’+ range of wireless control, when paired with the WARN HUB app

Rated Line Pull (Single Line) 12,000lbs (5443 kg)
No Load Line Speed 31 ft/min (9.45m/min)
Rated Load Line Speed 3 ft/min (0.91m/min)
No Load Motor Current 67 Amps
Rated load motor current 466 Amps
Motor 12V DC, series wound (exclusive WARN high-performance design)
Zeon Electrical controls Contactor
Wiring Automotive OE-grade buss bars
Zeon Corrosion Resistance 408 hour salt spray
Zeon Ingress Protection IP68 submersion and IP69K spray testing (entire unit)
Remote Control Corded remote with 12’ (3.7m) lead, plus HUB Wireless Receiver
Geartrain 3-stage planetary
Zeon Gear Ratio 176:1
Zeon Clutch (freespooling) Rotating ring gear with stainless steel clutch lever. Manual lever operation.
Brake Automatic, six segment mechanical cone
Drum diameter/Length 3.15”/9.0” (80mm/229mm)
Rope 3/8” X 80’ (9.52mm x 24.38m) Spydura Pro Synthetic
Fairlead Black anodized, forged aluminum hawse
Recommended Battery 650 CCA minimum for winching
Battery leads 2 gauge, 72” (1.83m)
Zeon Finish Satin-black powder coat
Final point of assembly Warn facility in Clackamas, Oregon, USA
Warranty Limited lifetime mechanical, 7 years electrical
Weight 85lbs (in box)
