PowerTrays PowerSwitch PowerTray 2022-2026 Toyota Tundra Battery Mount

PowerTrays PowerSwitch PowerTray 2022-2026 Toyota Tundra Battery Mount

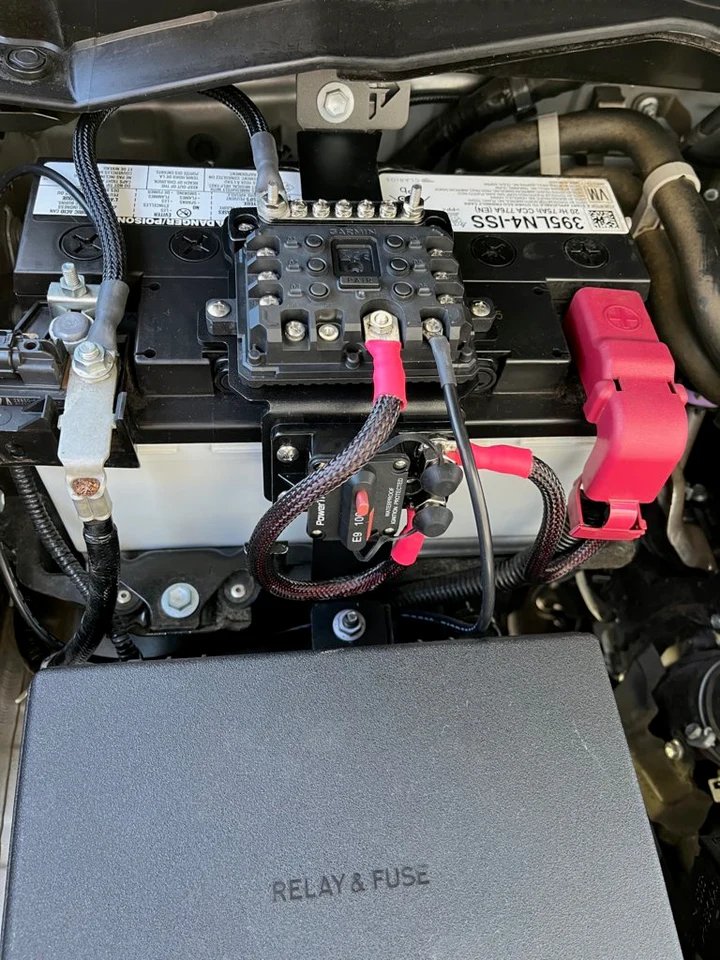

This PowerTray is a perfect solution to mount your Garmin PowerSwitch and keep your wiring clean and organized right over top your battery. This mount replaces the factory battery guard and installs in its place with zero modifications needed.

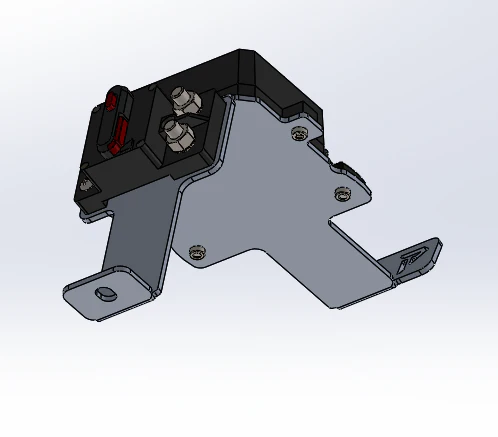

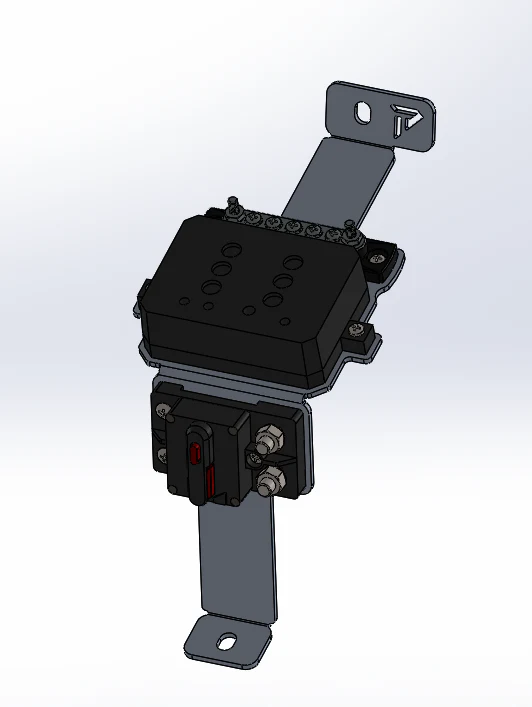

Take all the guess work out of wiring up a new accessory. The Powerswitch Battery Mount PowerTray has dedicated mounting locations for the PowerSwitch, low profile grounding busbar, and our 100A compact waterproof circuit breaker. The grounding busbar is located right behind the PowerSwitch, so there is no more cluttering up your ground terminal on the battery or scrambling to find a secure and reliable ground elsewhere on the vehicle for each of your accessories. It also has a convenient spot for PowerTrays circuit breaker right below the PowerSwitch and near the positive terminal of the battery. All together creating the ultimate power management solution for your Tundra.

With the PowerSwitch Battery Mount PowerTray system installed, wiring up a new accessory is as easy as taking the positive and negative wires, crimping on some ring terminals, and simply attaching the positive to one of the 6 circuits on the Powerswitch unit and the negative to the common ground busbar. That's it, you're done!

This product is for the PowerSwitch Battery Mount PowerTray and associated mounting hardware.

It does not include the Garmin PowerSwitch, Circuit Breakers, Blue Sea Accessories, Power/Ground cables, Terminals/fuses etc.

Installation Instructions

Features:

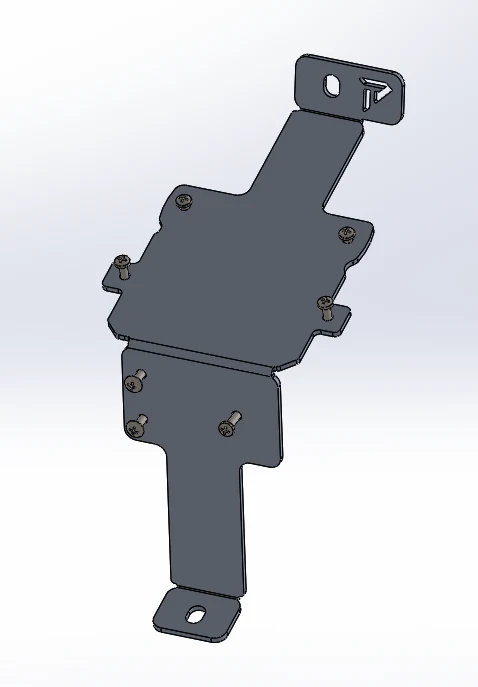

• PEM® Fasteners with Stainless Steel Screws - Pressed into the bottom of the PowerTray, genuine PEM fasteners become a permanent feature of the tray so you never have to worry about losing a nut while adding mods to your rig. Also included is matching stainless steel hardware to mount those accessories to the tray.

• 1/8th Inch 5052 Aircraft Aluminum - Possibly a little overkill to use for mounting electrical accessories that tend to weigh in the ounces, not pounds. But with a weight coming in at 3X lighter than steel and corrosion resistance far superior to even stainless steel, aluminum is the clear choice for weathering the harsh conditions we put our vehicles though.
• Waterjet manufacturing - Guarantees precise cuts with an accuracy of ±0.003", which is why it is used globally in many industries for intricate designs and jobs which require high tolerances.
• Chamfered edges - To avoid sharp edges PowerTrays chamfers all jagged edges and corners by hand with a specialized high-speed router bit. So you don't have to worry about cutting your hands or scratching your vehicles paint during installation. Also with a 45° chamfer on the edges you minimize the risk of vibration wearing though the protective sleeving on cables and wires which would short out the circuit.
