Factor 55 Crossbeam Shackle

Factor 55 Crossbeam Shackle

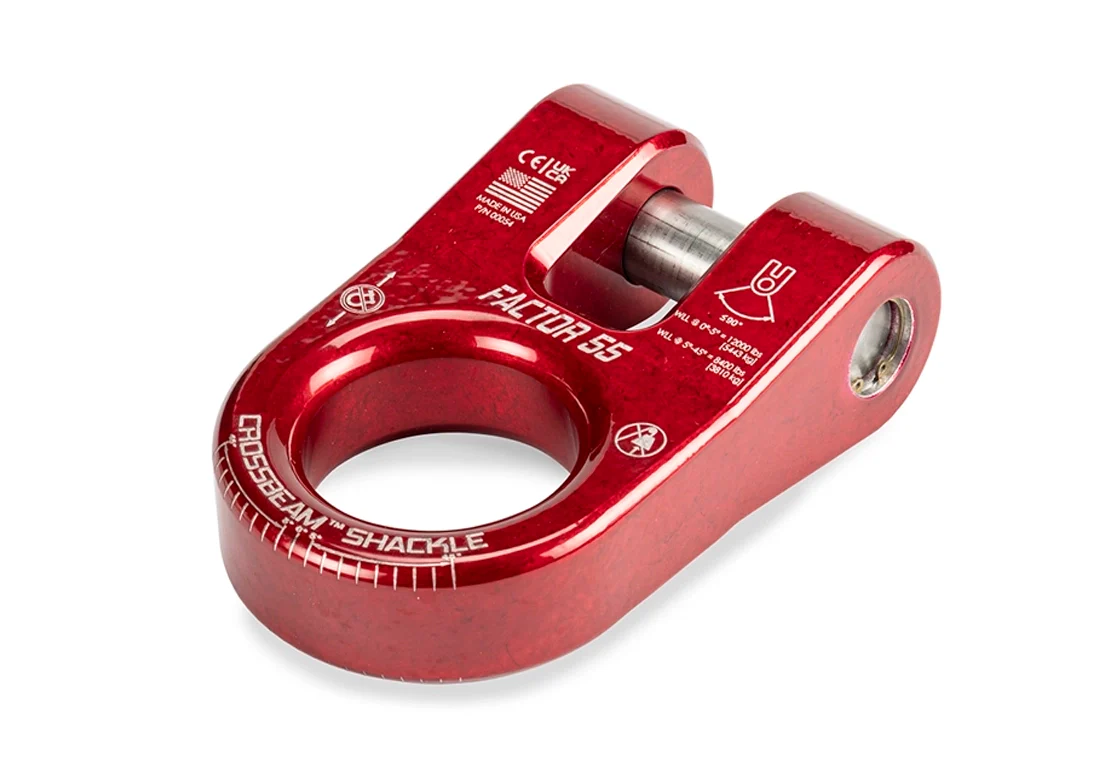

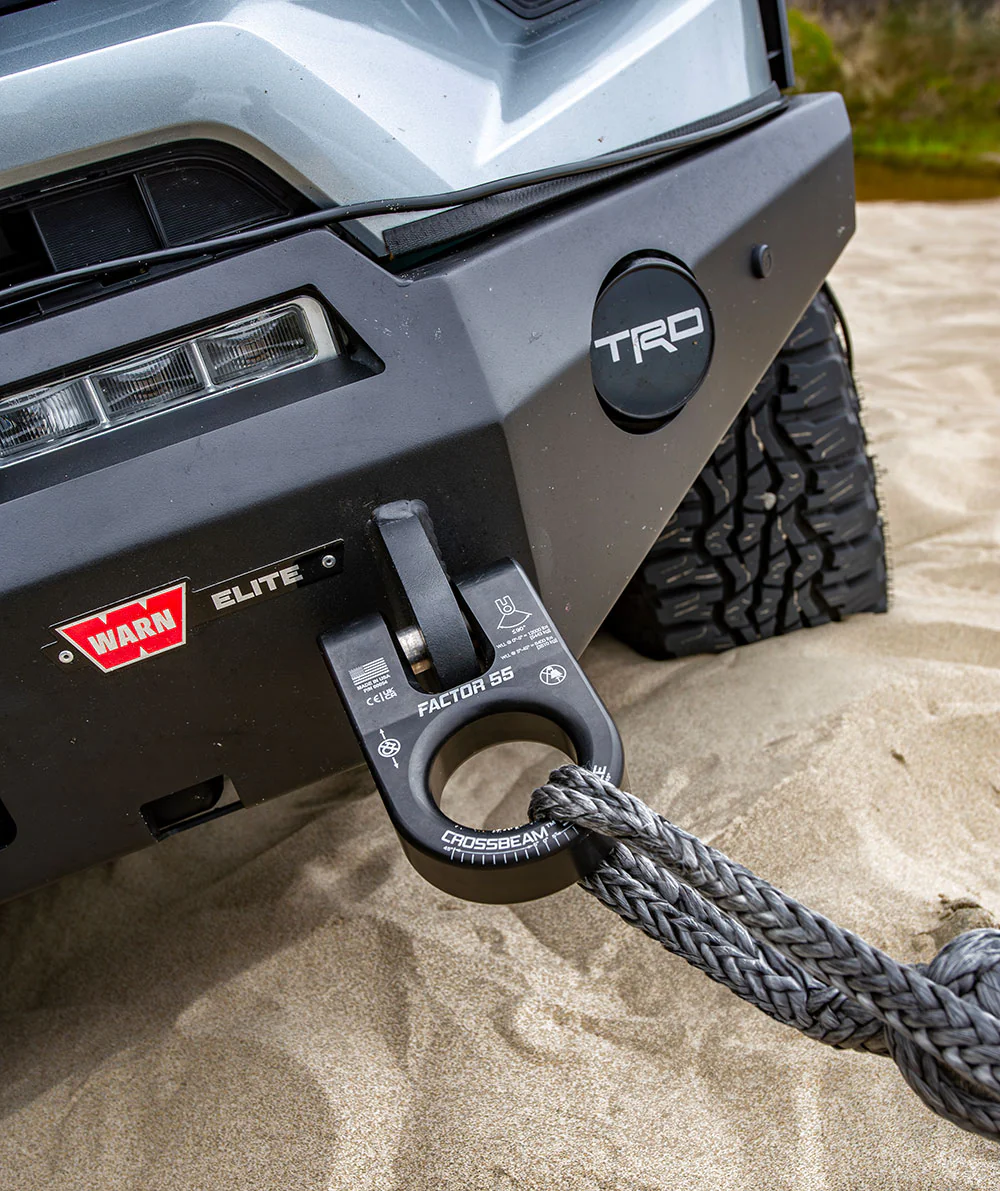

The Crossbeam Shackle represents the next evolution in Factor 55’s reliable recovery products. Crossbeam attaches to a bumper’s eyelet using a pin and snap ring for a semi-permanent mounting configuration, and offers exceptional security and durability. It’s precision-engineered and proudly made in the USA from high-strength, US-sourced T6-6061 billet aluminum to provide outstanding toughness and resilience. The shackle is compatible with a variety of mounting points and rigging accessories, including soft and hard shackles, thanks to its thoughtful design and engineering. Simply put, the Crossbeam Shackle is the evolution of recovery points.

Specifications

• Unyielding Strength: The unique "Crossbeam” design ensures that the legs of the shackle remain secure and resist spreading under sideload, offering unmatched stability during recovery operations.
• Versatile Compatibility: The large circular hole accommodates synthetic rigging components like soft shackles, while maintaining a flat inner edge for steel shackles. It's also perfectly sized for quick attachment of hooks, including the UltraHookTM, making it a versatile addition to your recovery gear.
• Precision and Safety: Laser-engraved angle charts and clearly marked working load limits (with a 5:1 safety factor) ensure safe and accurate rigging every time.
• WLL between 0 to 5 degrees: 12,000 lbs (5443kg)
• WLL between 5 to 45 degrees: 8,400 lbs (3810 kg)

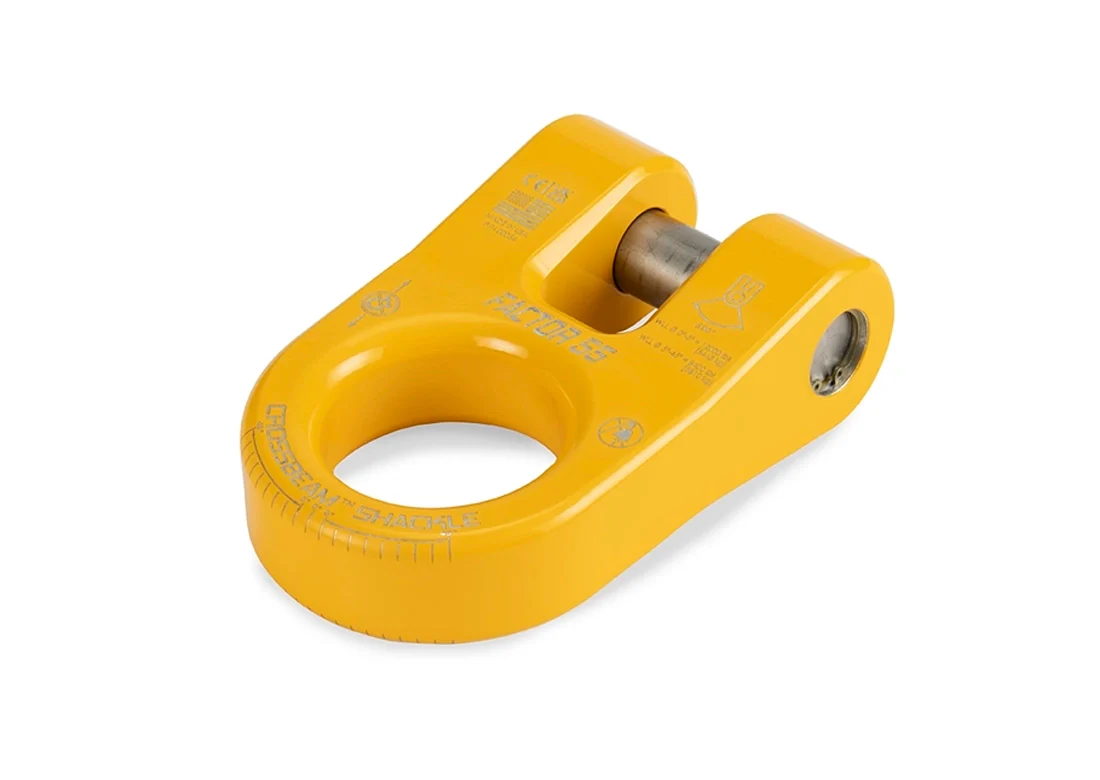

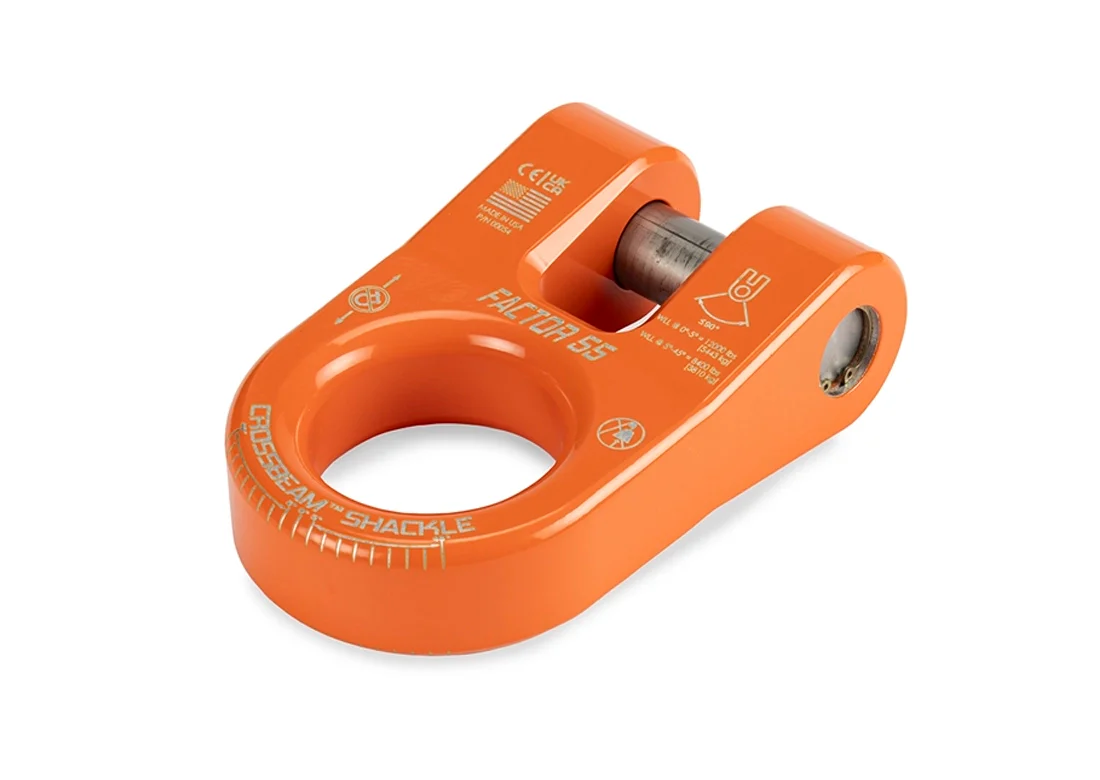

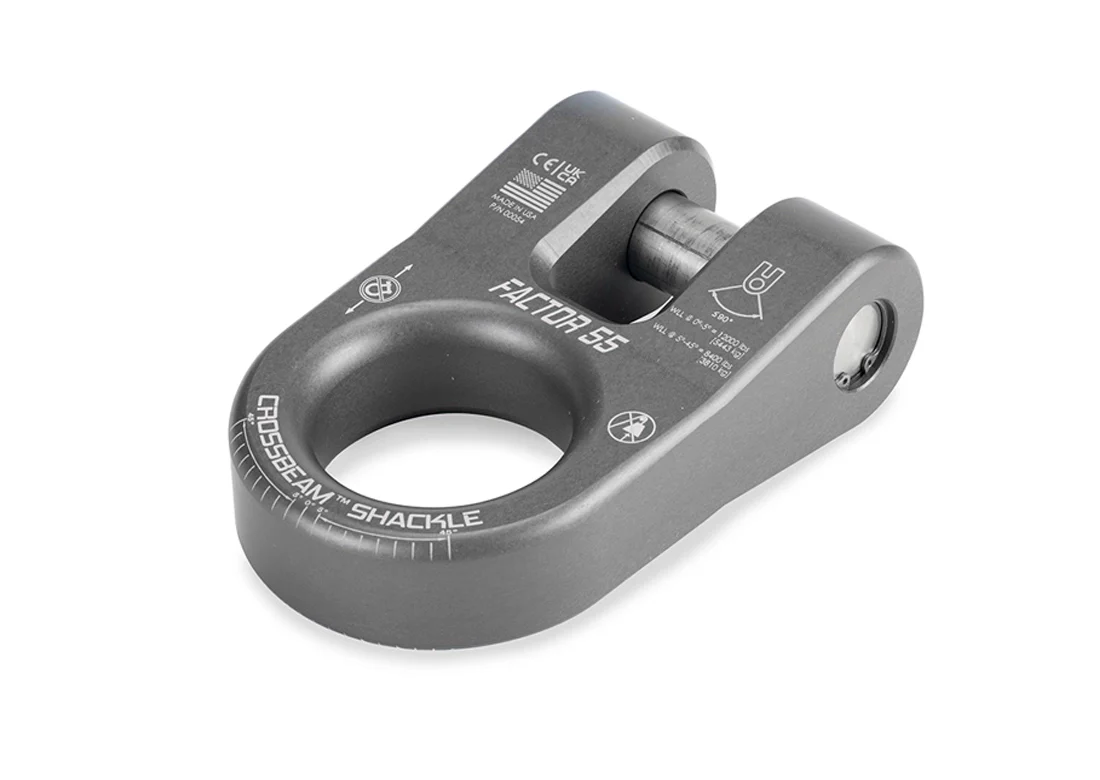

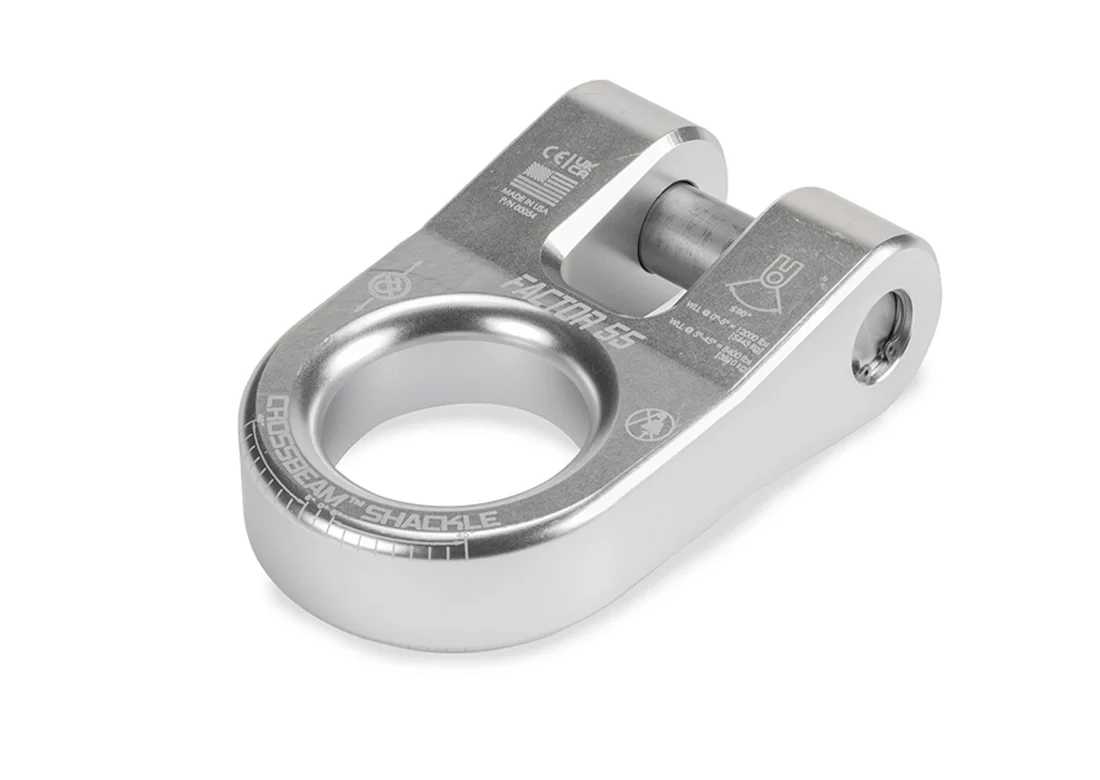

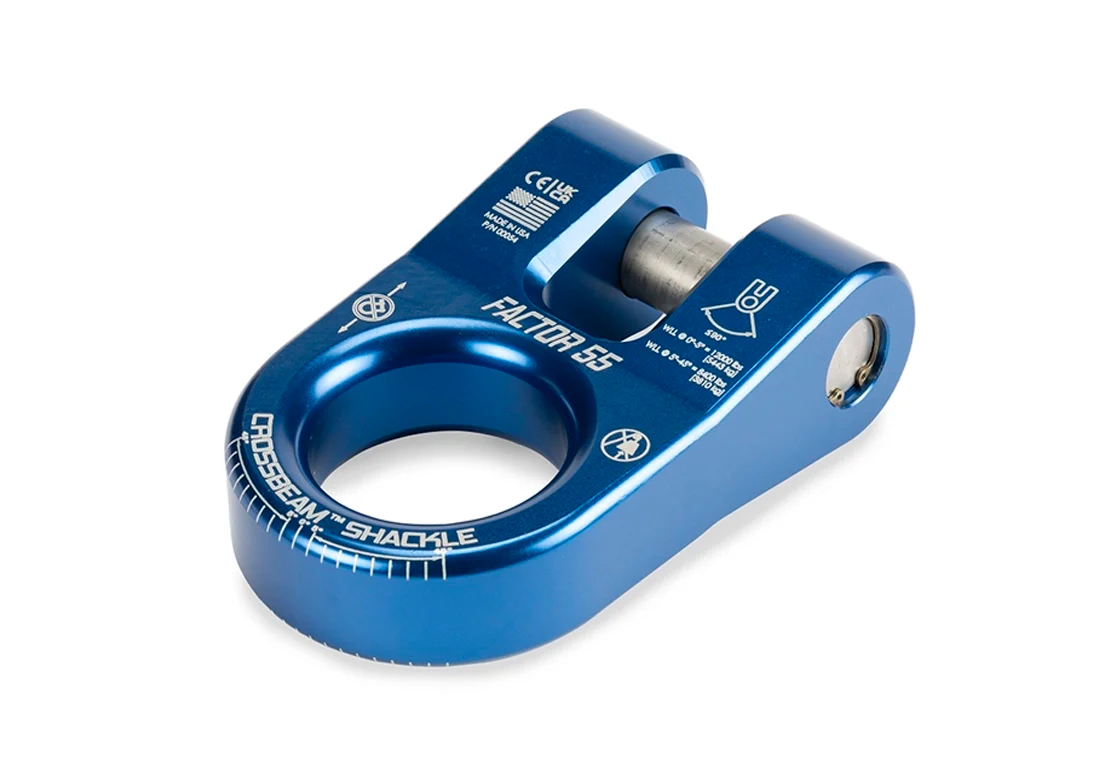

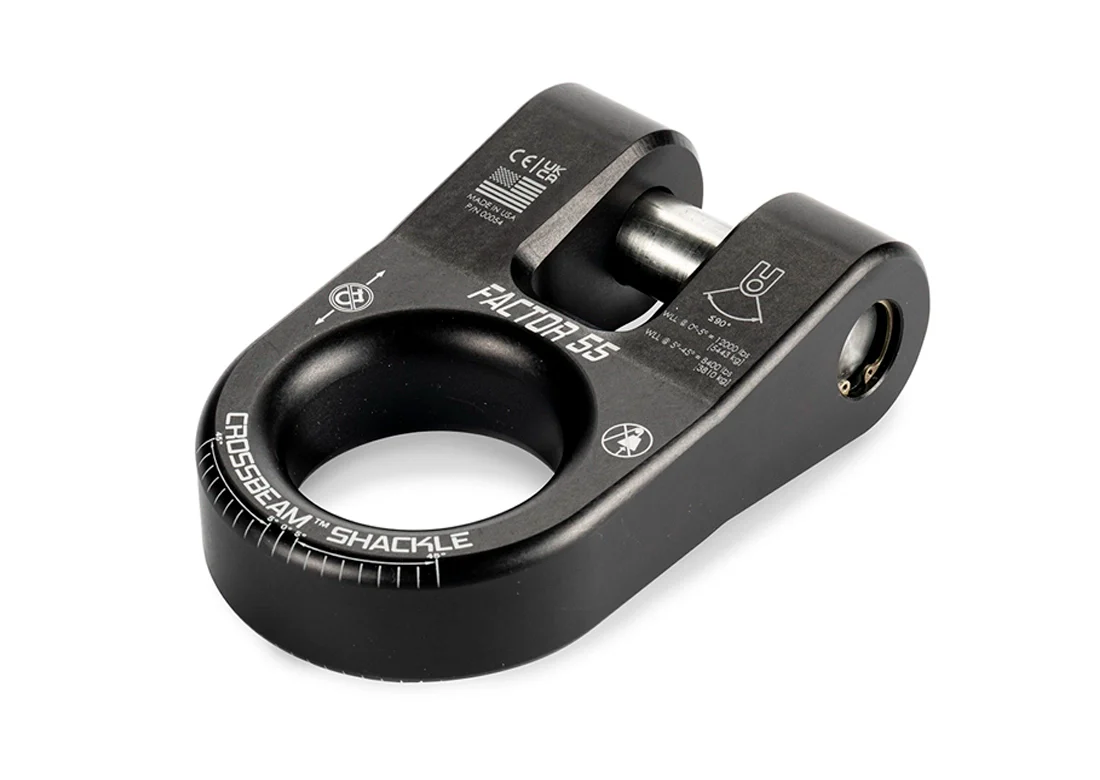

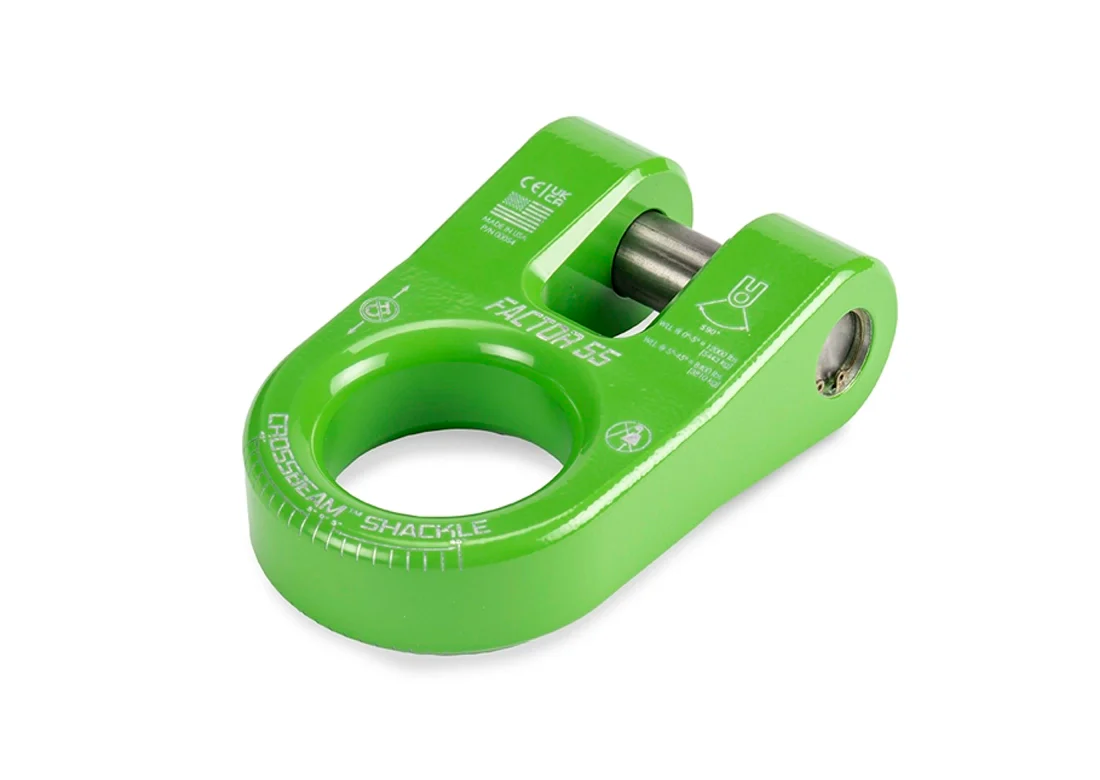

• Customizable: Available in a wide color range to match your other Factor 55 products: Red, Blue, Yellow, Black, Silver, Gray, Orange, and Green
• Convenient Storage and Use: The quick and easy snap-ring attachment allows for semi-permanent connection, making storage and deployment a breeze.
• Lightweight: Weighs 39 ounces (1106 grams)
• Engineered, Tested, and Made in the USA
• CE/UKCA Compliant
