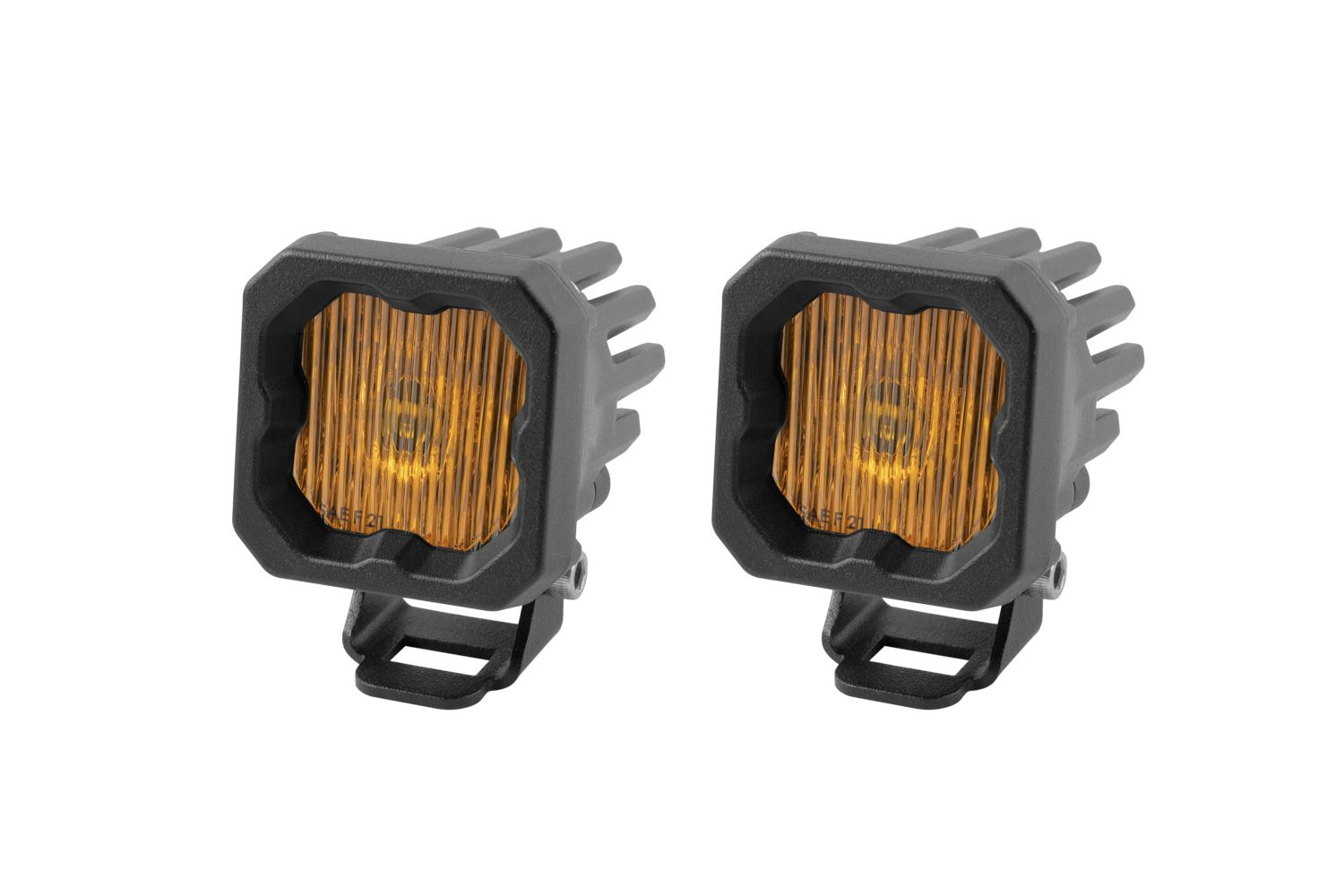

Diode Dynamics SSC1 Yellow Pod Light (Pair)

Diode Dynamics SSC1 Yellow Pod Light (Pair)

SKU: DD6443P

Regular price$296.92
/
Shipping calculated at checkout.

For Pre-Order products that are not currently in stock please refer to our Manufacturers lead time page here. If you have any questions please feel free to email us at online@kraveautomotive.ca



0 in stock

 More payment options

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Frequently Purchased Together /// Add On's

Diode Dynamics SSC1 Yellow Pod Light (Pair)

Featuring custom-engineered TIR optics combined with a single high-power LED chip, these pods have been designed for maximum performance and light output, in the most compact, versatile package yet. The SSC1 can be mounted virtually anywhere on your car, truck, motorcycle, or UTV, including spots where larger LED pods won't fit.

Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the Stage Series C1 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.

Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

Sport or Pro. Stage Series LED pods are available at two different power levels. Both options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. However, the Pro option is double the amount of total power.

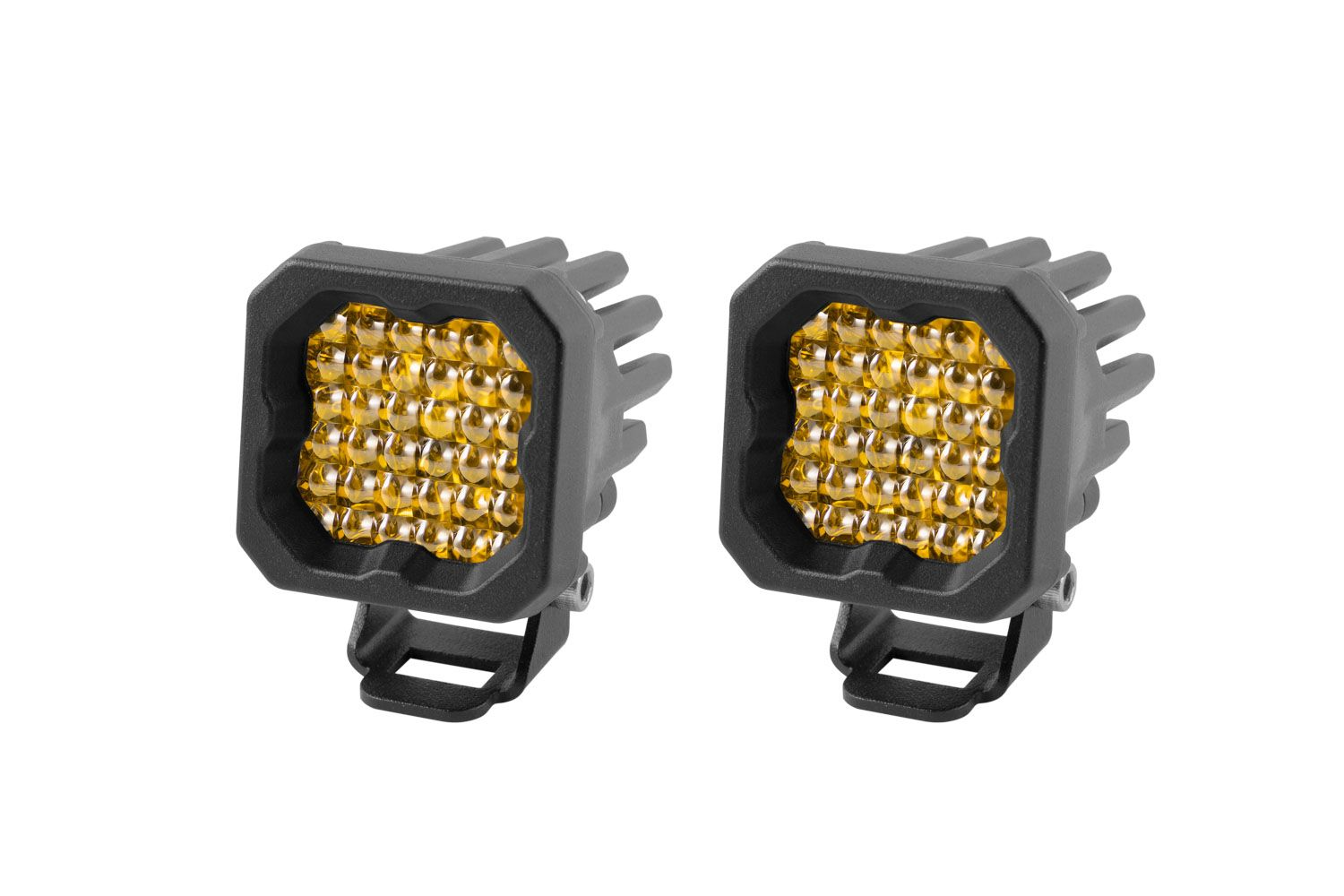

Flood pattern was designed to provide uniform, even illumination with a full 50x50 degree spread of light. Unlike generic "flood" lights that are simply a heavily diffused spotlight, the flood pattern uses pillow optics on the outer lens surface, to provide a true optically designed spread, for even illumination throughout. It is perfect to use as a backup light, scene lighting, or for trailers and roof racks.

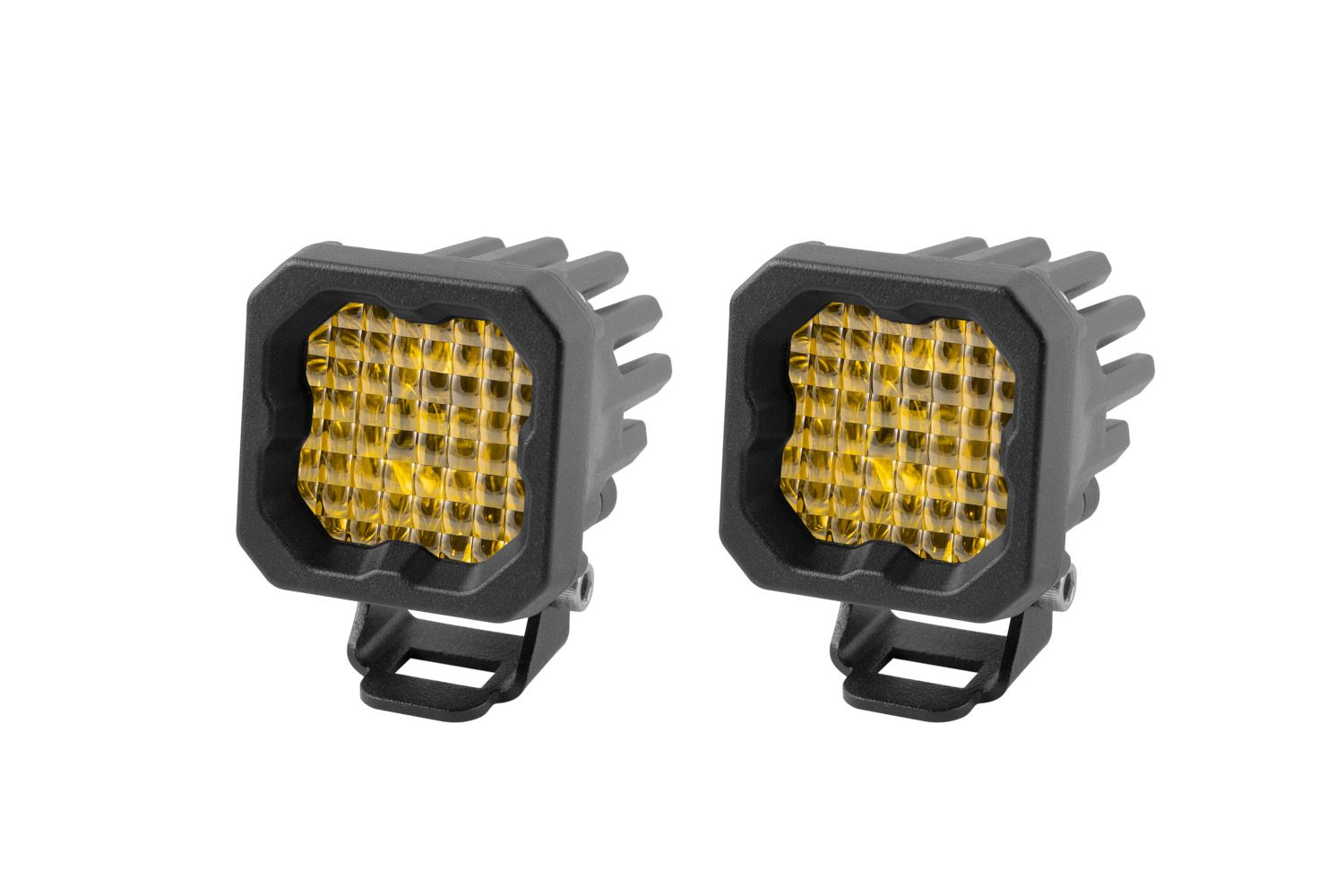

Wide pattern is perfect for general illumination. It spreads light a full 50 degrees, but keeps a tighter 20-degree vertical spread. It has a slight punch, but still fills out the area. The Wide pattern can be used anywhere you need to shine some extra light!

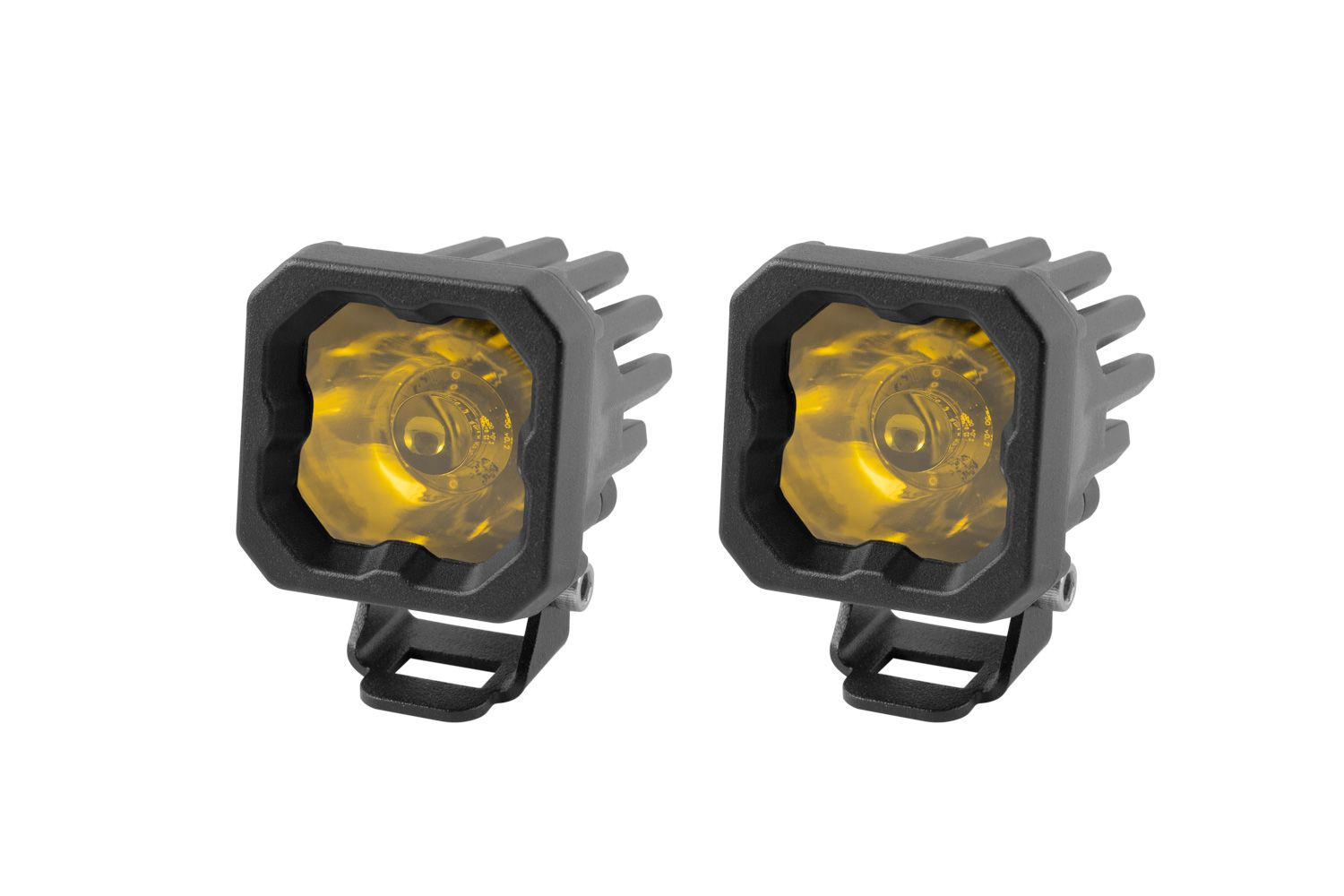

Spot is an unmodified pattern, shining focused light directly from the TIR optic. The result is a highly-focused 7-degree beam of light, perfect for directing light far into the distance. NOTE: The Pro Spot uses a slightly larger emitter which spreads the light output more than the Sport Spot, resulting in a lower candela and lux rating even at a higher power level.

SAE Fog provides an extremely wide field of view, with high-intensity output over an entire 98-degree spread. It meets the SAE J583 standard as a Foglamp, for legal on-road use and will fully illuminate the area in front of your vehicle.

Features

  • Ultra-compact, single-LED form factor
  • High-intensity 10-watt LED chip
  • Backlighting in a brilliant amber color
  • Pin-fin heatsink design, for superior thermal dissipation
  • Integrated Deutsch-style connector
  • Designed, torture-tested and assembled in USA

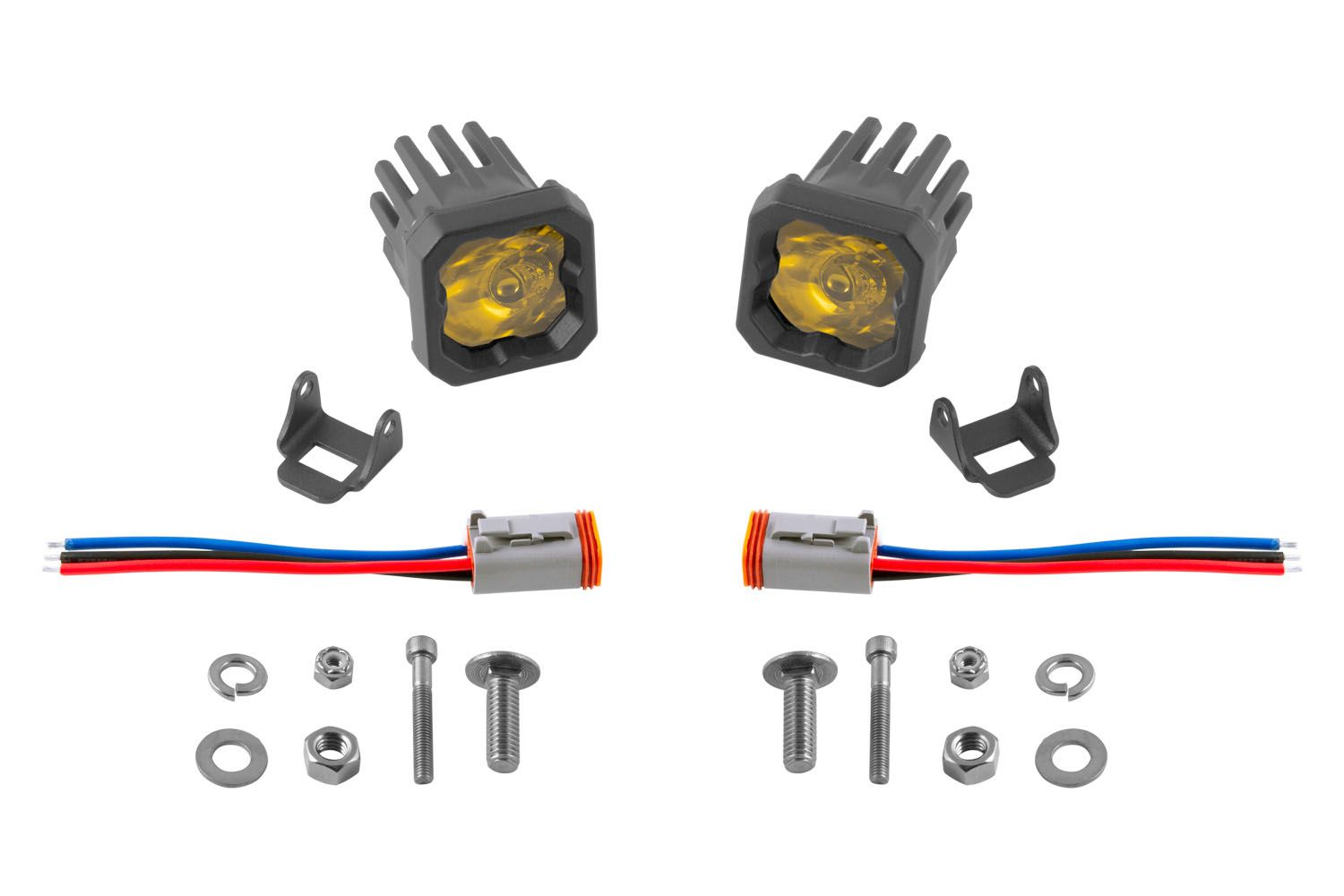

In the Box

  • Two (2) Stage Series C1 LED Pods
  • Two (2) Deutsch-style wire pigtails
  • Two (2) Mounting brackets and hardware

Specifications

Lens Color/Optics Peak Beam Intensity
(candela) Illuminance
(lux @ 10m) Measured Output
(lumens) Raw Output
(lumens) Output Color
Flood Sport 380 cd 4 lux 1,000 lm 1,305 lm 3000K Yellow
Flood Pro 780 cd 8 lux 2,200 lm 2,375 lm 3000K Yellow
Wide Sport 2,400 cd 24 lux 1,000 lm 1,305 lm 3000K Yellow
Wide Pro 4,600 cd 46 lux 2,200 lm 2,375 lm 3000K Yellow
Spot Sport 43,200 cd 432 lux 1,000 lm 1,305 lm 3000K Yellow
Spot Pro 18,000 cd 180 lux 2,200 lm 2,375 lm 3000K Yellow
