Diode Dynamics SS5 CrossLink Lightbar Kit for Prinsu/Sherpa Roof Racks

Diode Dynamics SS5 CrossLink Lightbar Kit for Prinsu/Sherpa Roof Racks

Have you wanted to mount an SS5 CrossLink Lightbar to your roof rack, but didn't want to fabricate custom brackets or remove the wind deflector? If the answer is yes, this new kit is for you - introducing the SS5 CrossLink Lightbar Kit for Prinsu and Sherpa roof racks! This kit allows you to mount a 6-pod or 7-pod SS5 CrossLink lightbar directly to your Prinsu or Sherpa roof rack, without having to remove the wind deflector. Unlike other options on the market, the kit includes support brackets for additional stabilization and load distribution, reducing excessive vibration.

Features

• Allows you to mount a 6-pod or 7-pod SS5 CrossLink lightbar to Prinsu and Sherpa roof racks.
• Compatible with roof racks that have a 40-inch lightbar cutout.
• Included support brackets provide extra stabilization and load distribution.
• Does not require removal of wind deflector.
• Durable stainless steel construction.
• Simple installation, no modification needed.


Bolt-On Installation. The application-specific brackets included in this kit were CAD-designed to bolt into existing mounting points. No cutting or drilling required! This kit is compatible with Prinsu roof racks with a cutout for a 40" lightbar and Sherpa roof racks with the half-height wind deflector.

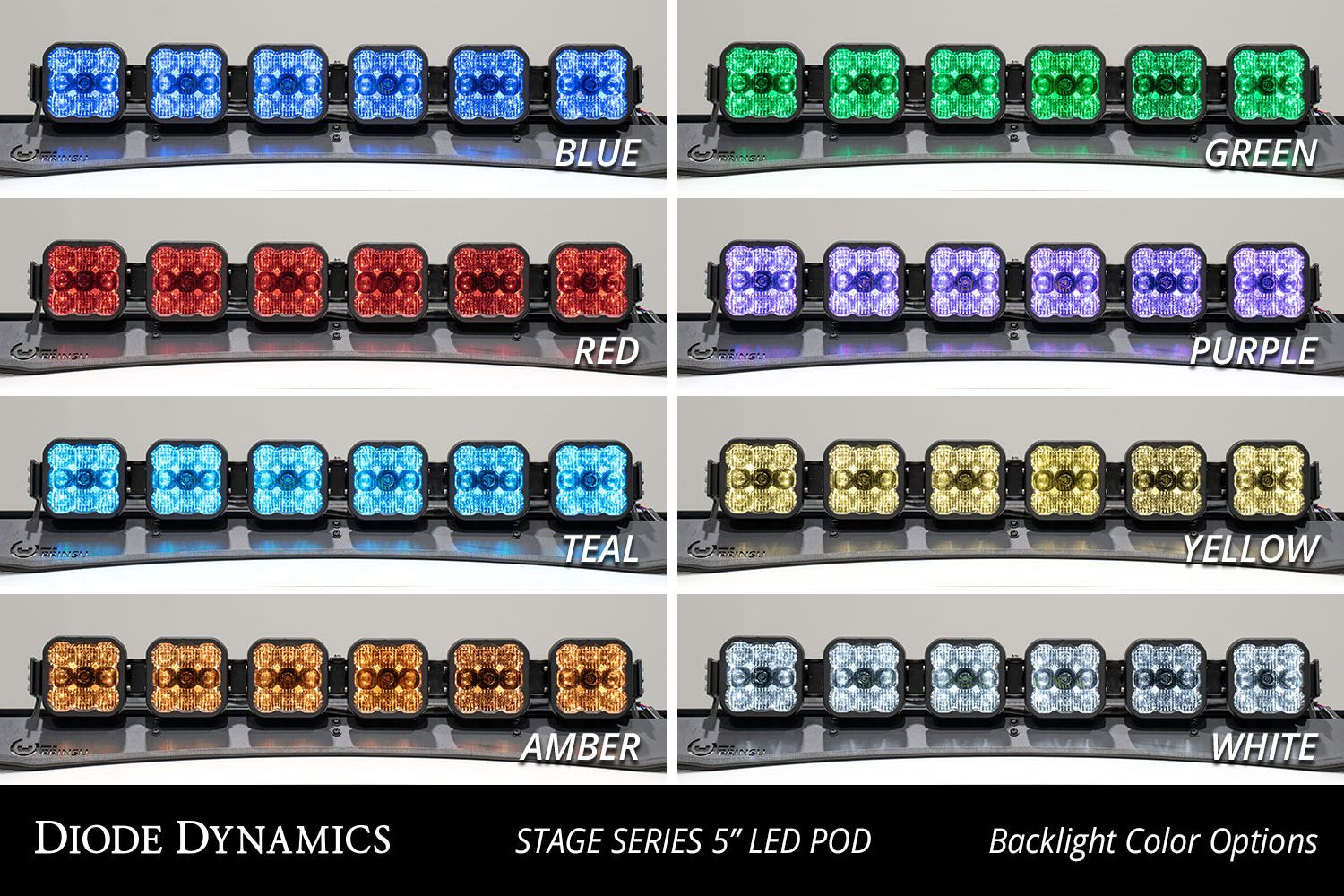

Selectable Backlight. The Stage Series 5" LED Pods included in this kit feature a selectable backlight with eight different color options, perfect for an extra styling accent, or for more visibility when you’re not using the main beam. Selecting your backlight color is easy - simply alternate the power on and off. There’s no complicated programming with a controller! The SS5's backlight fully illuminates the TIR optic, providing unique accent lighting that you won't find on other LED pods. NOTE: Due to the yellow lens, the Yellow kit is only available with an Amber backlight color.

Functional Patterns. Stage Series beam pattern options were designed with advanced optical simulation modeling, to shape the output in highly-functional beam patterns with high efficiency. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

Driving is great for general illumination at speed. Rather than a traditional "spot" pattern, the Stage Series Driving pattern shines in a 30x20 degree spread, providing just enough width to fully illuminate the road ahead at high speeds, but still staying focused to avoid too much foreground light. Although the SS5 Driving is too bright to be considered an SAE Auxiliary High Beam, it is perfect for an extra boost of light at speed.

Combo pattern combines both the Driving and Flood optics, perfect for all-around use. It shines light downrange in a focused 30x20 Driving beam to punch with distance, and fills in the surrounding area to create a full 70x30 degree pattern. With a row of driving optics in the middle, and a flood optic on the top and bottom, this has been designed to provide extra light for every situation.

White or Yellow. This kit is available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road.

Sport or Pro. This kit is available at two different power levels. All options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. The Sport model uses nine high-intensity LEDs for 40W of total power. The Pro model steps things up in a big way, with double the total power at 90W. Click the Specifications tab to see more information.

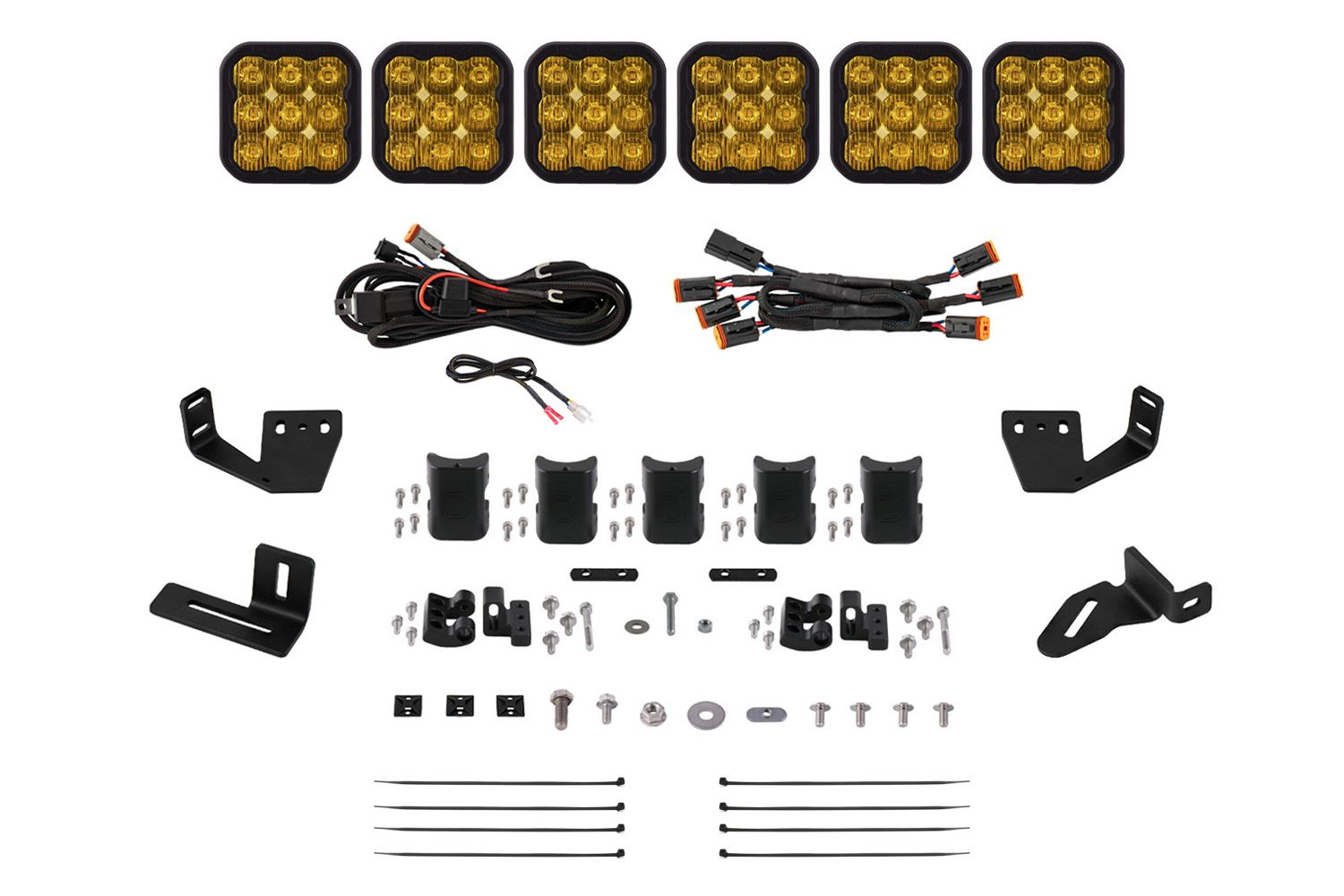

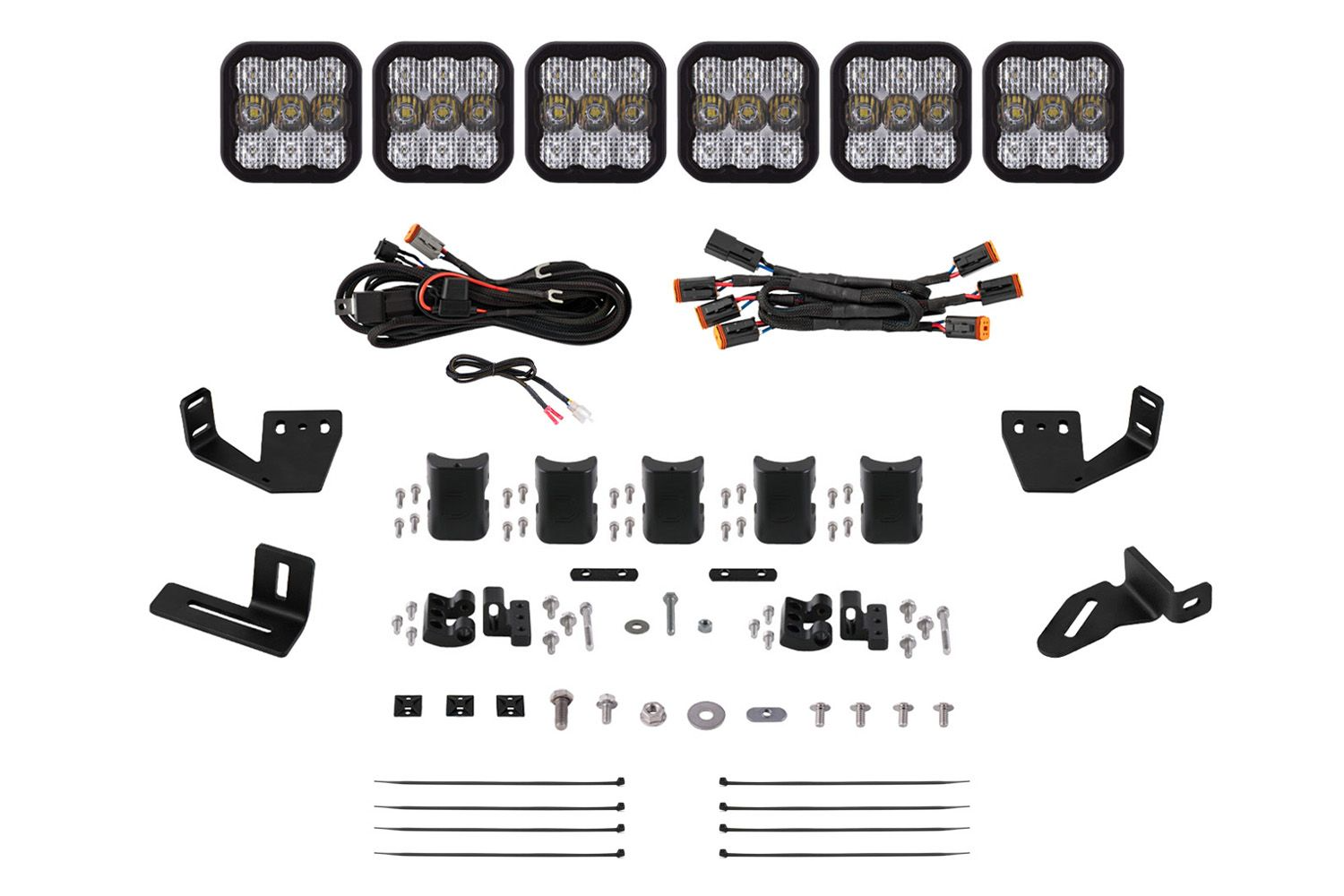

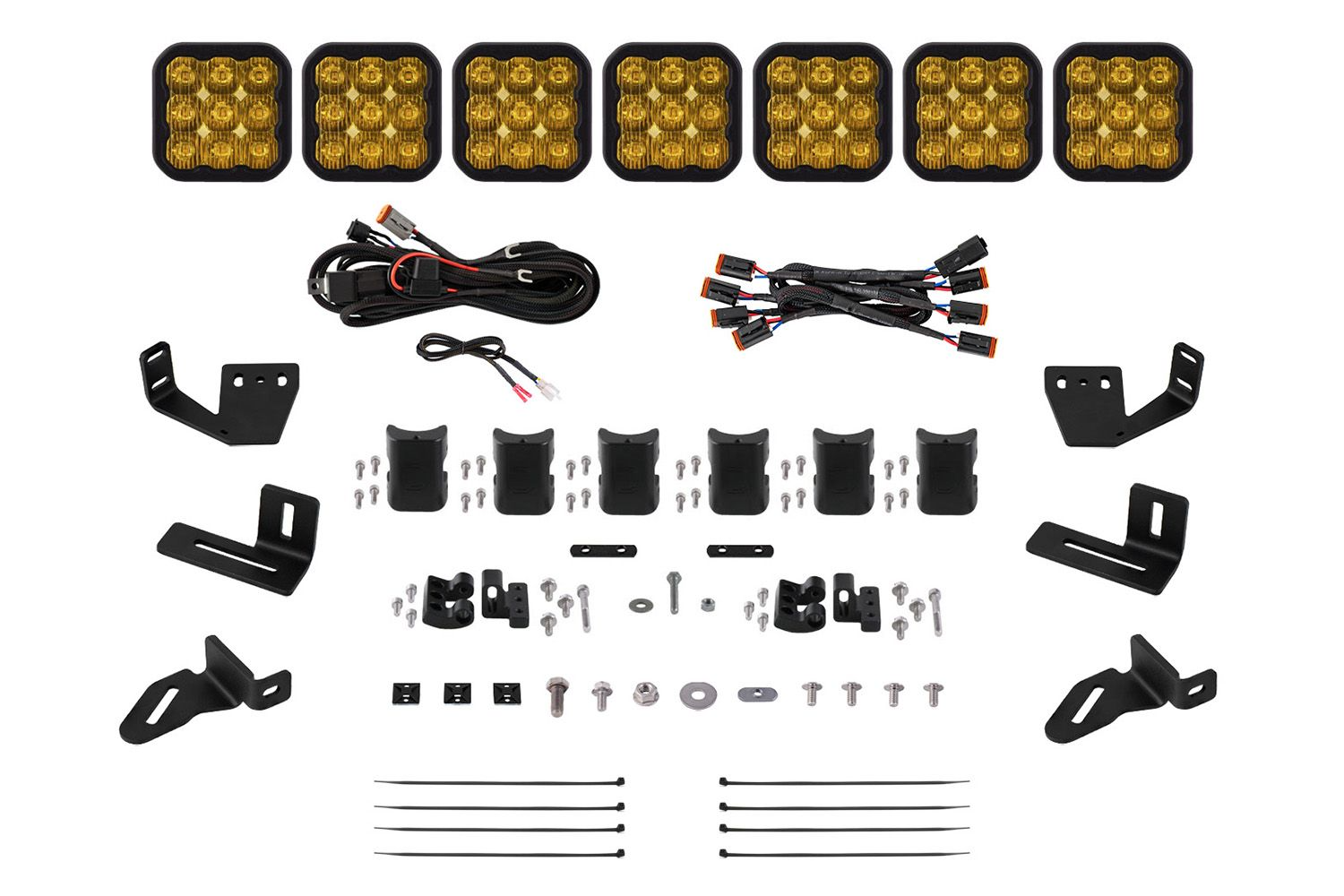

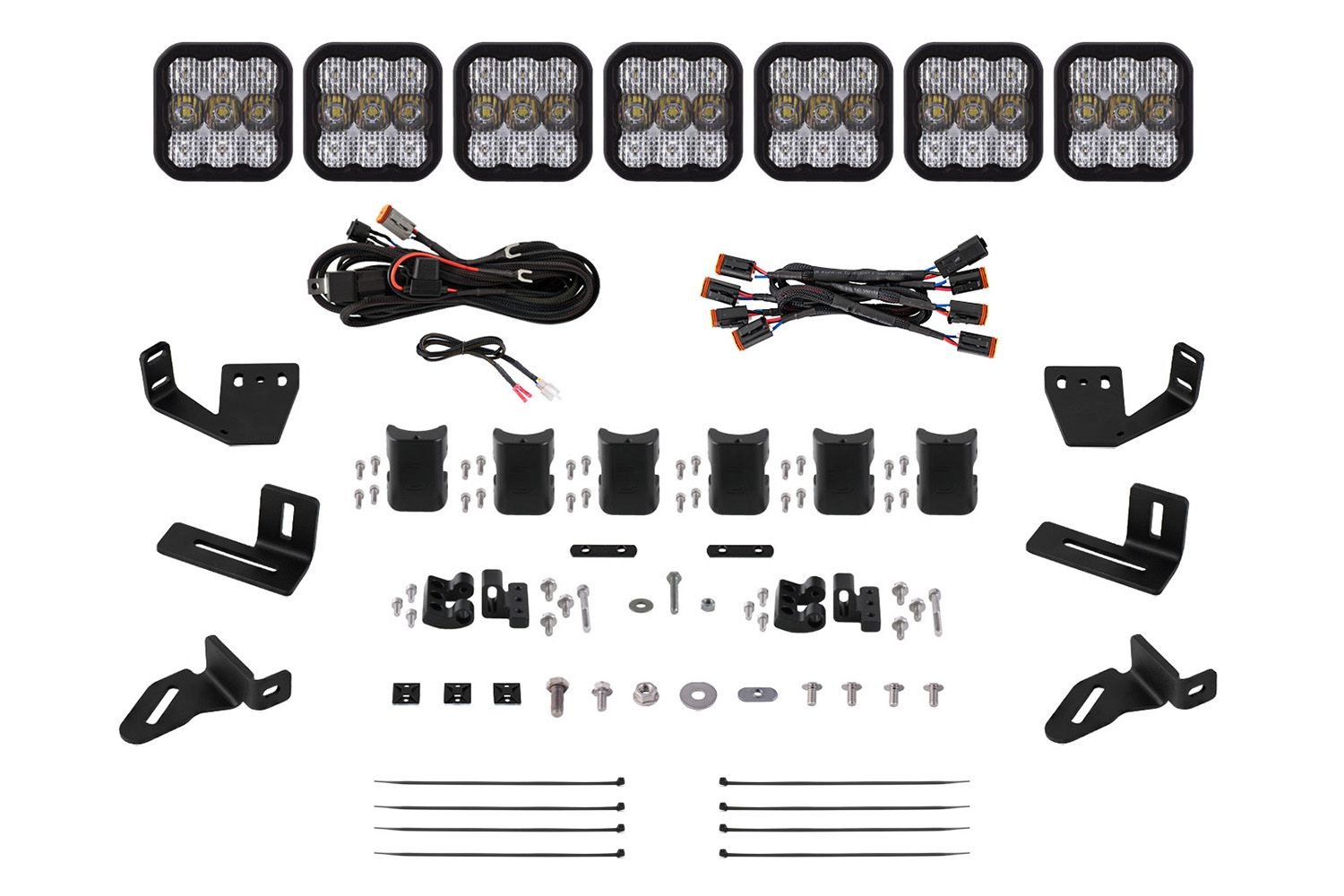

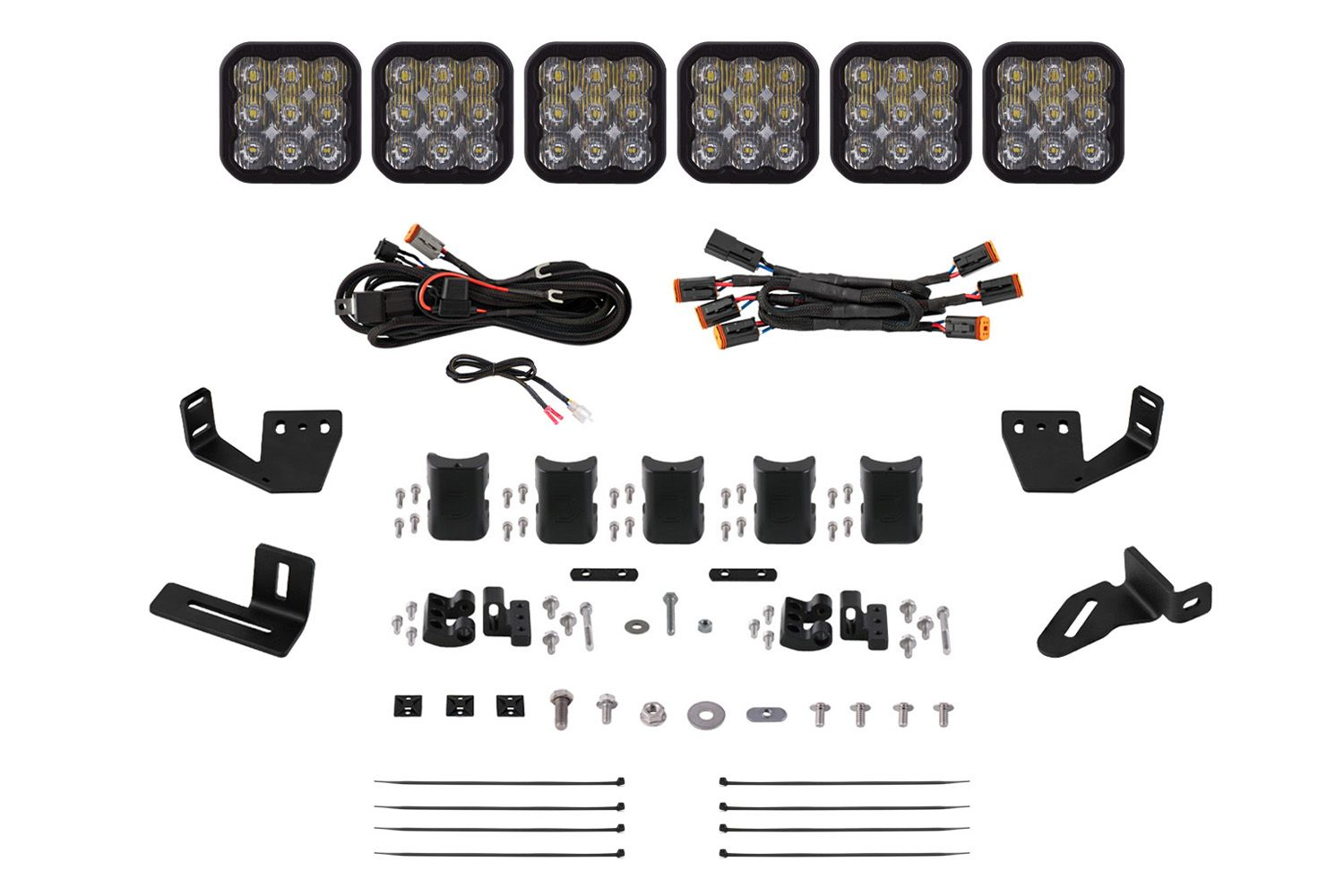

In the Box:

• Six (6) or Seven (7) Stage Series 5-inch LED pods
• One (1) Roof rack mounting kit
• One (1) or Two (2) CrossLink support bracket kits
• Five (5) or Six (6) CrossLinks with hardware
• One (1) CrossLink endmount kit
• One (1) DT 6-Pod or 7-Pod connecting harness
• One (1) Single-output wiring harness


NOTE: This kit is only compatible with Prinsu roof racks equipped with a 40-inch cutout wind deflector, and Sherpa roof racks equipped with a half-height wind deflector.

The 6-pod kit will fit on any rack that is at least 41⅝" wide. The 7-pod kit will fit any rack that is at least 47⅞" wide.
