Diode Dynamics HitchMount LED Pod Reverse Kit

Diode Dynamics HitchMount LED Pod Reverse Kit

SKU: DD7420

Regular price$230.92
/
Shipping calculated at checkout.

For Pre-Order products that are not currently in stock please refer to our Manufacturers lead time page here. If you have any questions please feel free to email us at online@kraveautomotive.ca



0 in stock

 More payment options

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Frequently Purchased Together /// Add On's

Diode Dynamics HitchMount LED Pod Reverse Kit

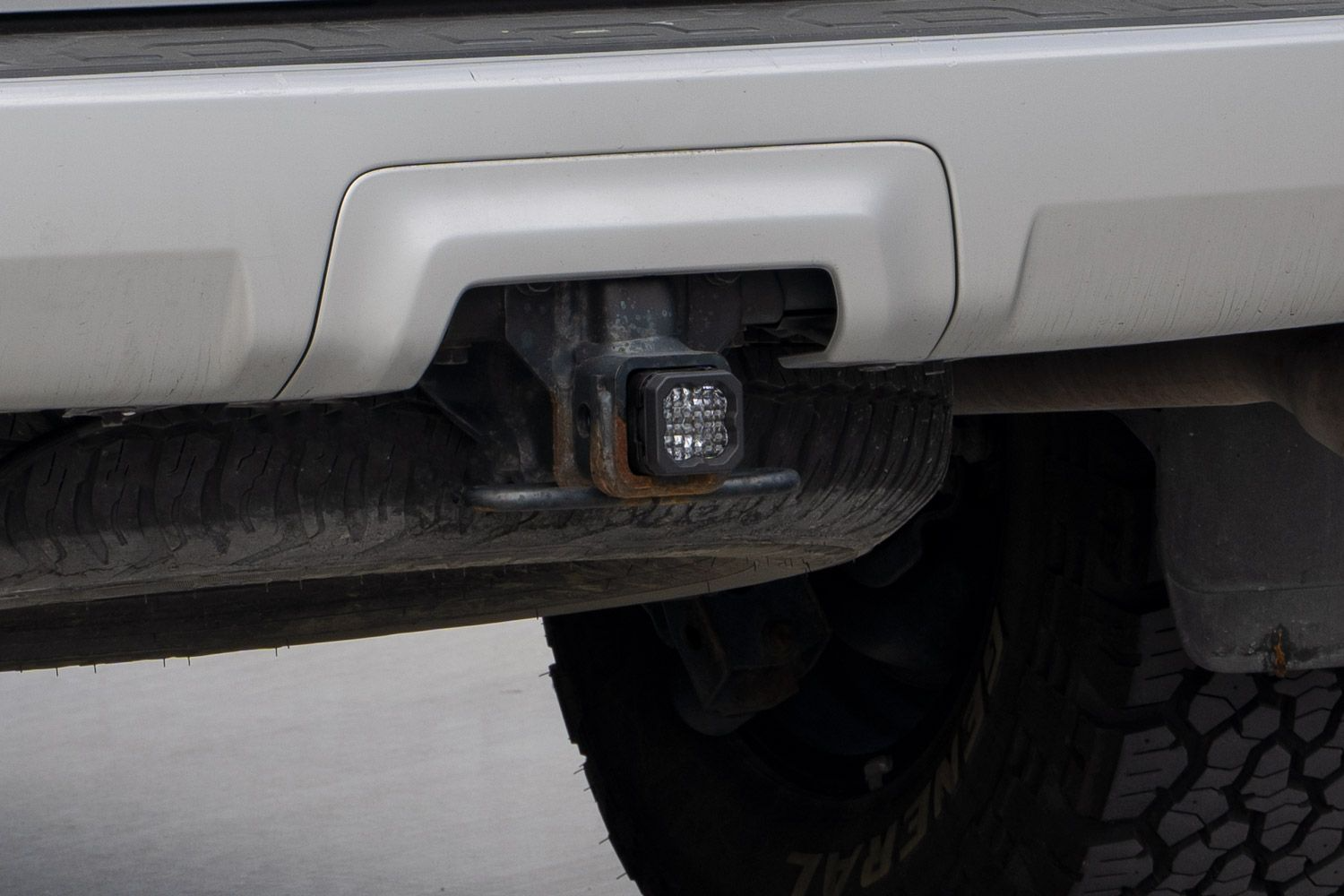

Add significantly more light output when backing up at night with the Stage Series HitchMount Reverse Light Kit! This kit allows you to mount one SSC1 or C1R LED pod in your 2-inch or 2.5-inch trailer hitch receiver, adding a high-power reverse light, additional running light, and an optional 4th brake light with the C1R option. With the included wiring harness, this kit connects to the factory trailer hitch wiring for simple, everyday operation.

Features

  • Allows you to mount an SSC1 or C1R LED pod in the trailer hitch receiver.

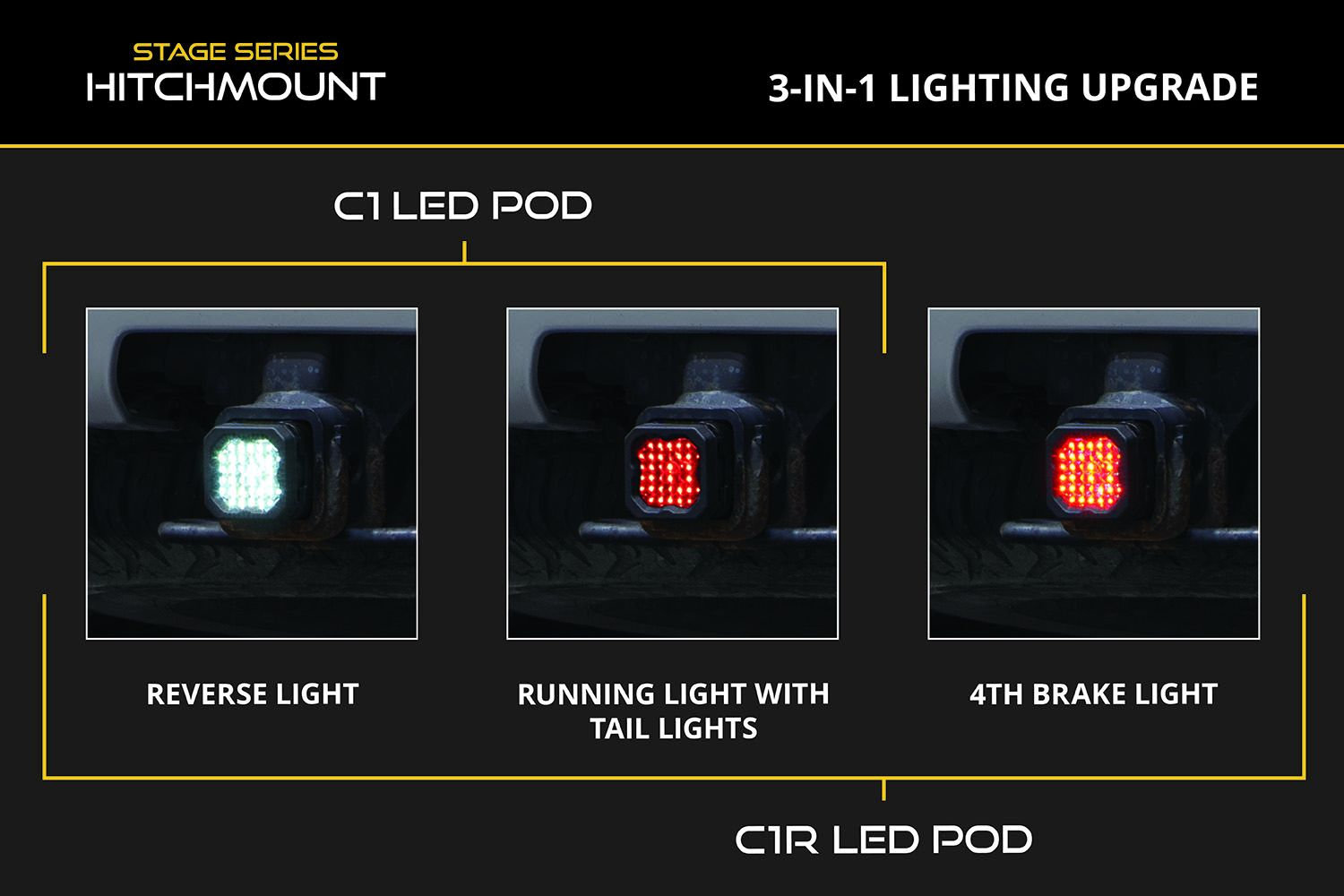

  • Adds a powerful reverse light, 4th brake light, and additional running light.
  • Simple 5-minute installation, with no need for custom wiring or routing wires.
  • Optional SafetyStrobe brake light strobing.
  • Designed and assembled in USA.

Brighter Backup. Factory reverse bulbs just don't provide enough light output to back up at night confidently. By pairing patented TIR optics with high-powered LEDs, the SSC1 and C1R included in this kit provide an additional reverse light that's several times brighter than stock bulbs alone. Plus, they automatically come on when the vehicle is put in reverse!

Additional Running Light. The Stage Series LED pods included with this kit feature a distinctive red backlight that can be used as an additional running light while driving! The backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products.

SafetyStrobe 4th Brake Light. The C1R option features a high-power red function to serve as a powerful 4th brake light, along with the low-power running light. The high-power red functionality activates anytime you apply your brakes, adding a 4th brake light to your vehicle.

The C1R also features optional brake light strobing, which can be activated in 15-second intervals. By default, the C1R will flash three times when the brake lights are initially applied, for greater visibility. The SafetyStrobe feature can be easily disabled if desired.

This kit is completely plug-and-play with all 7-pin trailer connectors. The included harness plugs right into your factory trailer hitch wiring for easy installation and operation.

Functional Output. All Stage Series beam patterns were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern.

Flood pattern was designed to provide uniform, even illumination with a full 50x50 degree spread of light on the SSC1 and C1R LED pod. Unlike generic "flood" lights that are simply a heavily diffused spotlight, this flood pattern uses pillow optics on the outer lens surface, to provide a true optically designed spread, for even illumination throughout.

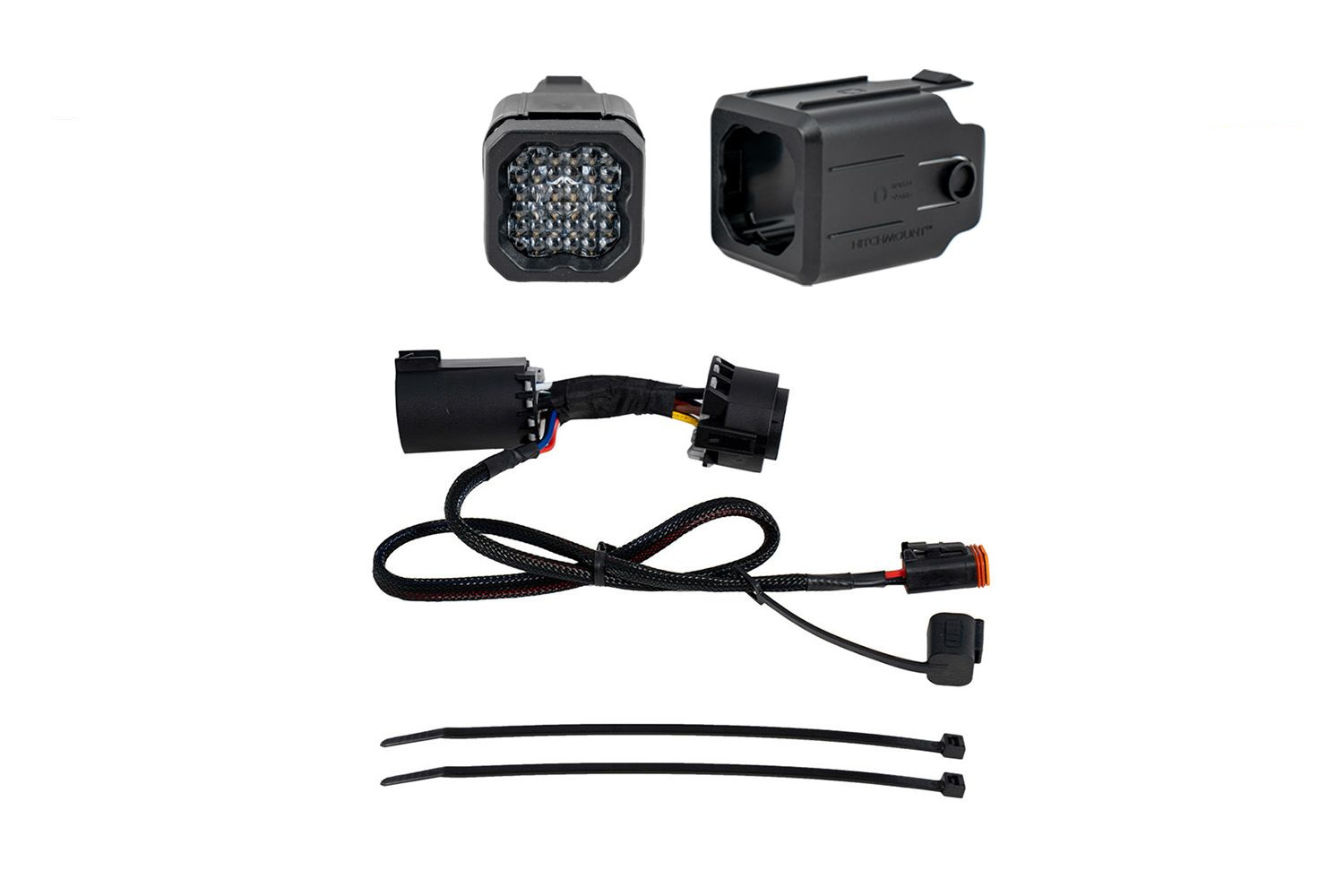

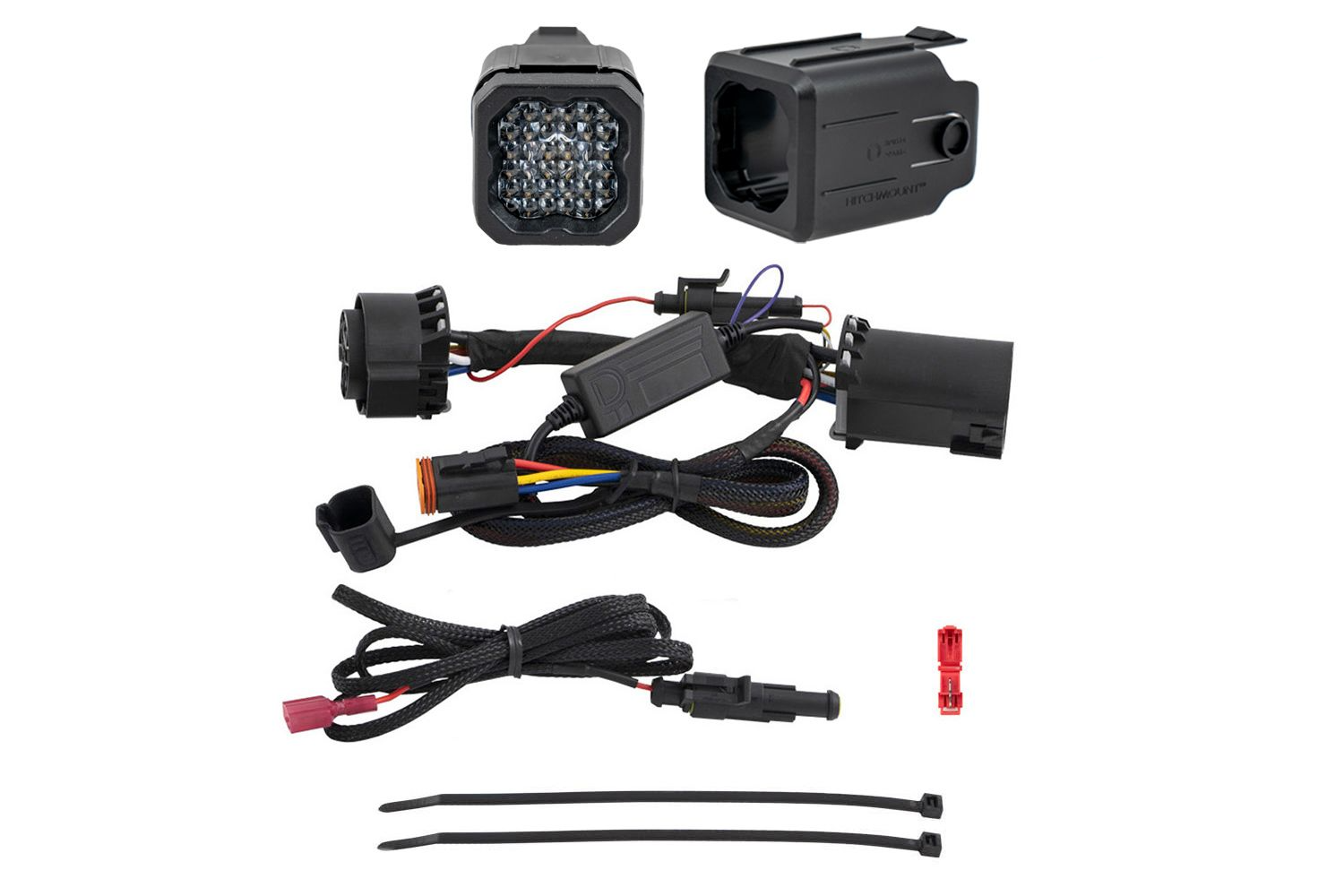

In the Box:

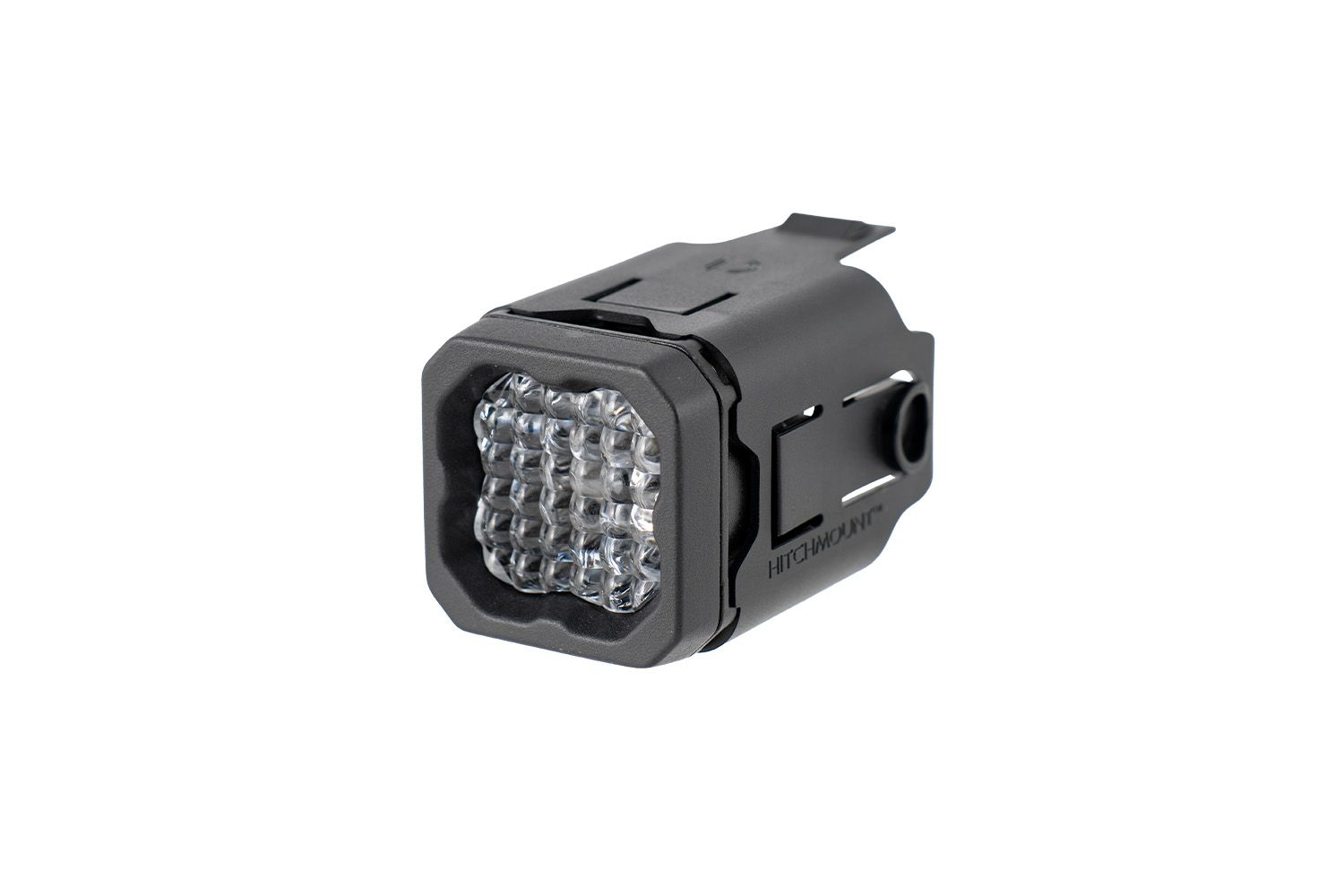

  • One (1) SSC1 Sport or C1R HitchMount LED Pod

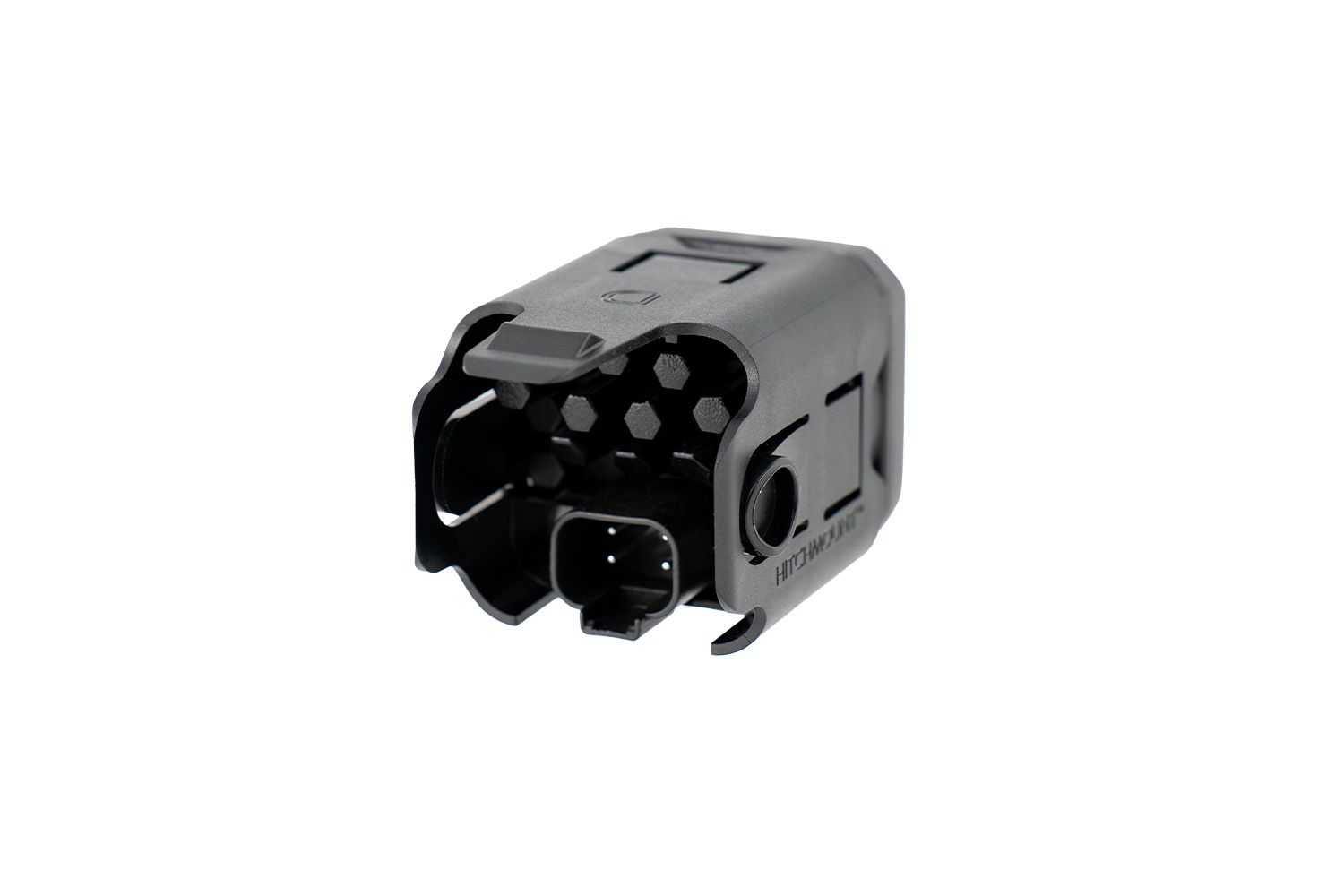

  • One (1) Snap-In 2.5in Receiver Adapter*
  • One (1) 7-Pin trailer single output harness
  • Two (2) Zip ties
  • Installation guide

NOTE: Newer SUVs with trailer management systems monitor the power draw on the trailer connector in order to automatically modify vehicle settings when a trailer is connected. Depending on the year and make of your vehicle, the HitchMount LED may interact with this system if equipped.

Fits:

  • 2010-2024 Toyota 4Runner
  • 2016-2026 Toyota Tacoma
  • 2022-2026 Toyota Tundra
  • 2011-2014 Ford F-150
  • 2017-2020 Ford Raptor (DD7420 only)
  • 2015-2023 Ford F150 (DD7420 only)
  • More unlisted applications

Specifications
NOTE: Specifications listed here are for each individual pod.
Lens Color/Optics Peak Beam Intensity
(candela) Illuminance
(lux @ 10m) Measured Output
(lumens) Raw Output
(lumens) Output Color
Fog White Sport 10,600 cd 106 lux 1,520 lm 2,262 lm 6000K White
Fog White Pro 11,900 cd 119 lux 3,000 lm 5,796 lm 6000K White
Fog White Max 18,000 cd 180 lux 3,500 lm 7,920 lm 6000K White
Fog Yellow Sport 9,050 cd 91 lux 1,300 lm 1,930 lm 3000K Yellow
Fog Yellow Pro 10,900 cd 109 lux 2,700 lm 5,220 lm 3000K Yellow
Fog Yellow Max 12,500 cd 125 lux 3,500 lm 7,920 lm 3000K Yellow
