Solo Motorsports 1996-2002 4Runner Outboard Shock Relocation Kit

The rear shock location for the 1996-2002 Toyota 4Runner is in an incredibly tight and hard to reach place. The 3rd Gen 4Runner stock location also limits the size and type of shock that can be installed. This OSR kit is designed to move the shocks to the outside of the frame and pushes suspension travel and performance to its limits!

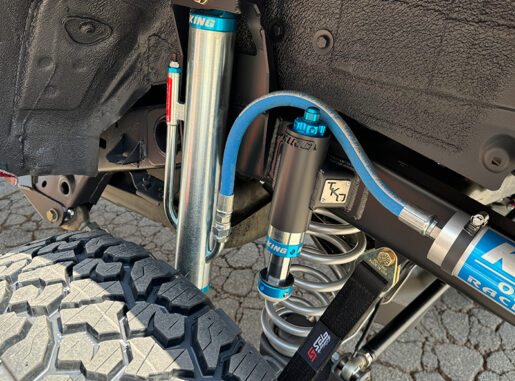

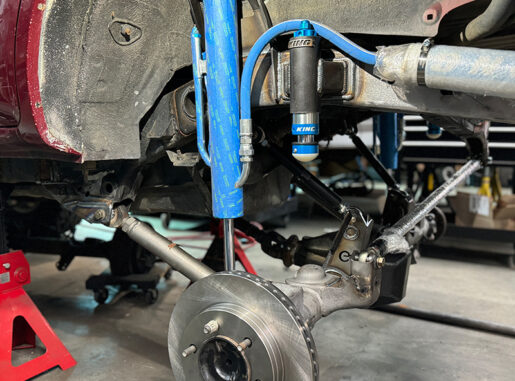

The Rear Outboard Shock Relocation Kit moves the shock location to the outside of the frame within the wheel well which allows you to run longer, bigger, and higher quality shocks. Replacing the shocks becomes much easier as well. This kit is design works with most universal shocks meaning you can run your favorite brands without compromise! This kit also puts the shock in a more vertical position (as opposed to the factory angle) which greatly increases stability, shock performance, and longevity.

Unlike other kits on the market, Solo Motorsports offers a unique fully boxed and plated design with locating wings for easy installation and added strength. Due to the boxed design the entire package is smaller which allows you to run a hydro bump kit without any modifications. This kit also has more weld surface than others which increases strength and lowers risks of cracks in high stress applications.

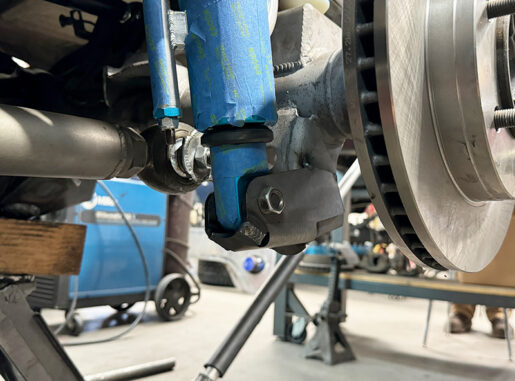

The lower shock mounts includes a boxed designed with a wing that wraps around the axle which adds weld surface, makes installation easier, and is overall stronger than other available options.

Solo Motorsports also offers an add-on frame notch kit to help clear larger shocks at full suspension articulation.

Installation:

Check out this awesome video by Timmy the Toolman where he goes over the entire installation procedure on his 4Runner:

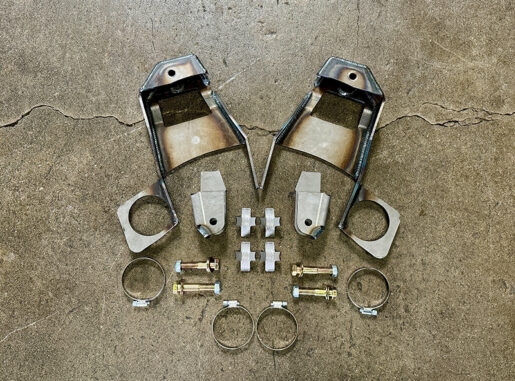

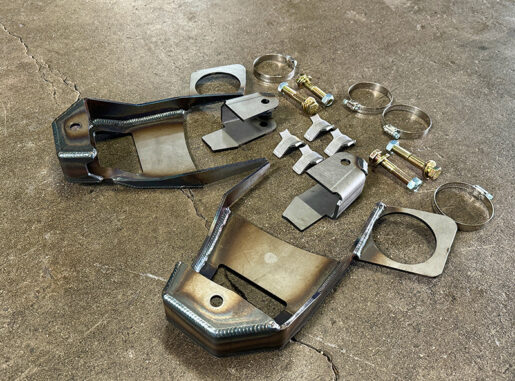

4Runner Outboard Shock Relocation Includes:

• Driver and Passenger Outboard Shock Relocation
• Driver and Passenger Lower Shock Mounts
• X4 Remote Reservoir Mounting Tabs
• X4 1/2″ Grade 8 Bolts
• X4 Hose Clamps
• Optional Frame Notch Kit:
  • X2 Frame Notch Plates
• Optional Limit Strap Kit:
  • X2 13″ Solo Branded Limit Straps
  • X2 Frame Side Flat Tabs
  • X2 Axle Side Radius Tabs
  • X4 1/2″ Grade 8 Bolts
  • X8 1/2″ Grade 8 Washers
  • X4 1/2″ Stover Lock Nuts

Notes:

• Negative offset wheel and/or wheel spacers are required for shock clearance

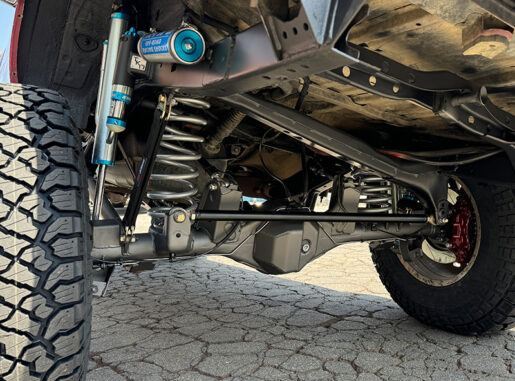

  • Example: Truck in photos is running -10 offset wheels with 1.25″ wheel spacers
• Piggyback reservoir shocks are not compatible with this kit
• Bypass Shocks need a certain tube layout. Verify tube layout before ordering
  • Example: King double bypasses style 2 is required
• Shock compatibility with 10-12″ shocks, and 2.0″ & 2.5″ shock diameter
• This kit REQUIRES Extended brake lines.
• Poly bushing or heim upper/lower links & panhard bar highly recommended
