Long Range America Fuel Tanks: New 4th Gen Tacoma 33-Gallon Tank

Long Range America fuel tanks give truck and SUV owners more freedom to travel beyond the next reliable fuel stop. For overlanding, towing, remote work, hunting, fishing, and long-distance travel, extra fuel capacity can mean fewer stops and more flexibility when planning a route.

Depending on the vehicle, Long Range America offers both main replacement and auxiliary fuel tanks that keep fuel stored securely beneath the vehicle. The newest addition to the lineup is a 33-gallon main replacement fuel tank for the 2024+ Toyota Tacoma.

KRAVE has a shipment of these new 4th Gen Tacoma fuel tanks on the way, and pre-orders are now open.

Why Choose a Long-Range Fuel Tank?

The range available from a factory fuel tank can change quickly once larger tires, added gear, towing, winter conditions, and slow travel on trails enter the equation. A long-range fuel tank adds capacity directly to the vehicle, giving drivers a larger safety margin without filling the truck bed with fuel cans.

Benefits of an extended-range fuel tank include:

Fewer fuel stops on long highway trips
More flexibility when travelling through remote areas
Less reliance on external jerry cans
More cargo space for camping, recovery, or work equipment
The ability to refuel where fuel is available and convenient
Greater preparedness for detours, road closures, and changing conditions

This is not about driving until the tank is empty. It is about having more control over where and when you stop for fuel.

Replacement Fuel Tanks vs. Auxiliary Fuel Tanks

Long Range America fuel tanks are available in different configurations depending on the vehicle.

A main replacement fuel tank takes the place of the original tank and typically retains the factory fill location and fuel gauge. An auxiliary fuel tank adds a second fuel supply and transfers fuel into the main tank. Both designs increase fuel capacity, but the right option depends on the space and layout available beneath the vehicle.

For the 4th Gen Tacoma, Long Range America chose a main replacement design. The new tank fits in place of the factory unit and fills through the original fuel door, so there is no separate filler, transfer pump, or external fuel container to manage.

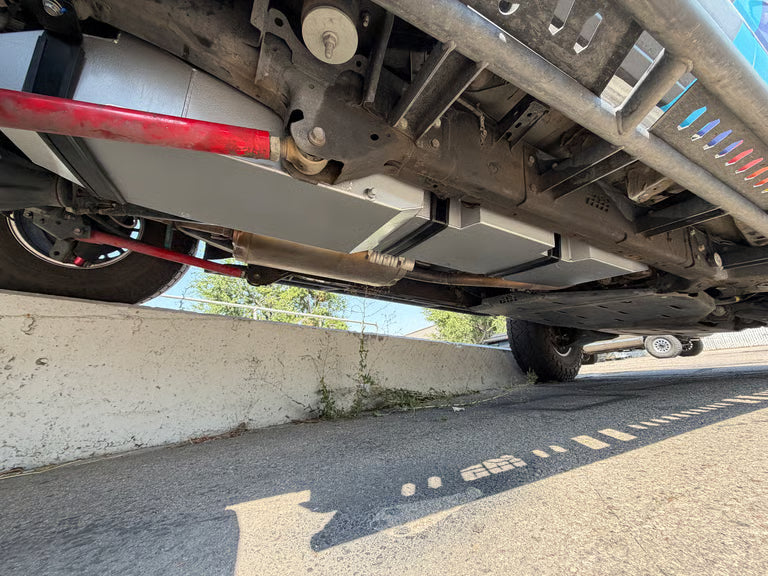

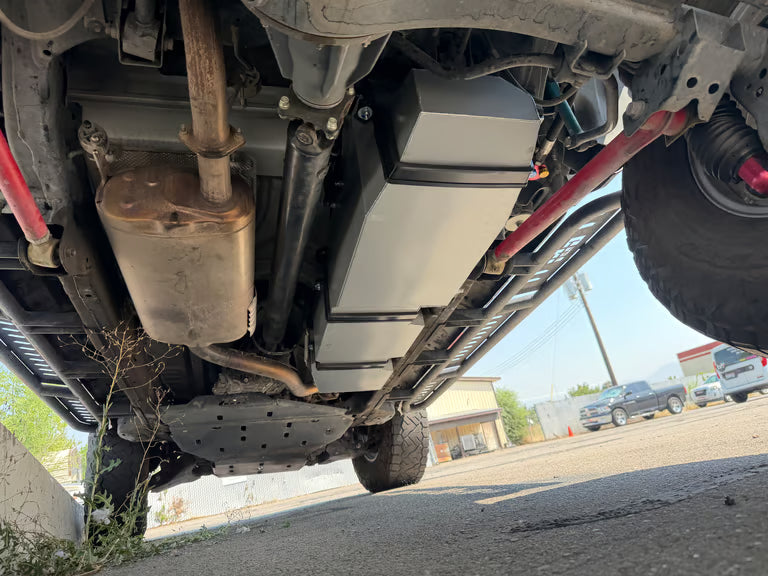

New 4th Gen Tacoma 33-Gallon Fuel Tank

The factory 4th Gen Tacoma fuel tank holds 18 gallons, or approximately 68 litres. The new Long Range America TT4R replacement fuel tank increases capacity to 33 gallons, or approximately 125 litres.

That is an additional 15 gallons, or roughly 57 litres, representing an 83 per cent increase in fuel capacity. Actual driving range will still depend on fuel economy, load, tires, terrain, weather, and towing conditions, but the added capacity can make a major difference between fuel stops.

The tank is handmade from durable 2mm aluminized steel and designed for the conditions commonly faced by trucks driven through gravel, mud, snow, road salt, and off-road terrain.

2024+ Toyota Tacoma Fuel Tank Features

Fits 4th Gen Toyota Tacoma models from 2024 onward
33-gallon [approximately 125-litre] capacity
Replaces the original 18-gallon main fuel tank
Fills through the factory fuel point
Installs using the factory tank strap locations
No exhaust modification required
No spare-tire relocation required
Designed to fit most lift kits
Approximately 1/2-inch loss of ground clearance compared to the factory tank
No additional skid plate required
Approximately 90 lb dry weight, or a net increase of about 45 lb after removing the factory tank
Recommended installation time of approximately five hours

The factory fuel-level gauge will remain accurate after installation. However, the Tacoma’s distance-to-empty calculation will not account for the increased fuel capacity, so drivers should continue to monitor the fuel gauge and refuel when the low-fuel warning appears.

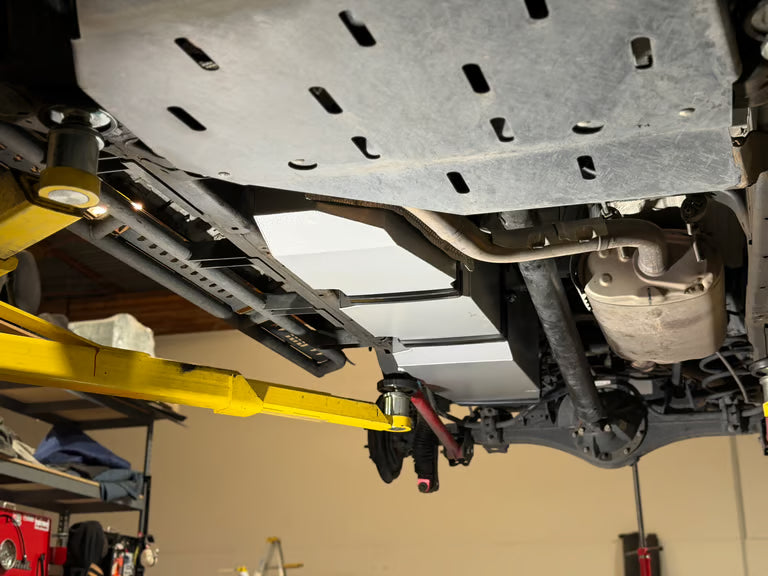

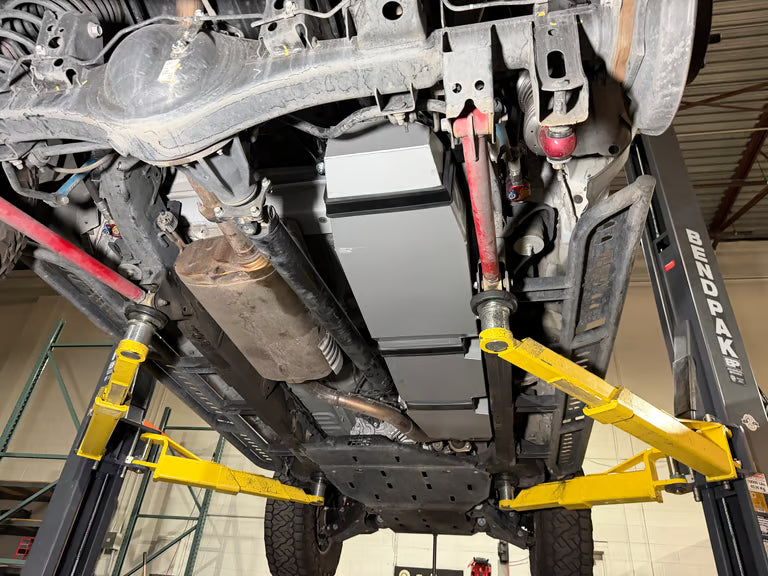

Installation and Weight Considerations

The Long Range America TT4R is designed to be DIY-friendly for an experienced installer and uses the Tacoma’s existing tank strap locations. No exhaust changes or spare-tire relocation are required, which helps keep the installation relatively straightforward for a tank of this size.

It is still important to account for the added weight. A larger tank does not increase the truck’s payload capacity. Both the tank and any additional fuel carried count toward the available payload, so this should be considered alongside passengers, cargo, accessories, and trailer tongue weight.

Long Range America fuel tanks are not intended to be topped off after the fuel nozzle shuts off. Topping off the tank will void the tank warranty.

Is a Tacoma Long-Range Fuel Tank Worth It?

For a truck that rarely travels beyond populated areas, the factory fuel tank may continue to do its job. For Tacoma owners who tow, explore remote routes, work far from services, or simply want fewer stops on longer drives, an integrated long-range tank is a practical upgrade.

The TT4R keeps fuel securely stored beneath the truck, reduces the need to carry external cans, and adds range without taking up bed space or requiring changes to the spare-tire location. It brings those benefits to the latest Tacoma while retaining the factory fill point and familiar day-to-day operation.

Long Range America also offers replacement and auxiliary fuel tanks for earlier Tacoma generations and a wide range of other truck and SUV platforms.
