Diode Dynamics SS3 Yellow Flush Pod Light (Pair)

Add LED pods to your bumper, truck bed, or anywhere else you can think of with these SS3 Flush Mount Pods! Featuring higher output intensity than any other 3” light on the market, these LED pods have been designed for maximum functionality, with custom-engineered TIR optics shining in highly useful beam patterns, all in a durable package. With the included flush mount bezel, the SS3 Flush Mount Kit is extremely versatile and once installed has a clean, factory-style appearance.

Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

Sport or Pro. Stage Series LED pods are available at two different power levels. Both options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. However, the Pro option is double the amount of total power.

SAE Fog uses distinctive FineLine optic design, and provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It serves as a great upgrade for any factory foglamp, and will fully illuminate the area in front of your vehicle.

Flood pattern was designed to provide uniform, even illumination with a full 60x60 degree spread of light. Unlike generic "flood" lights that are simply a heavily diffused spotlight, this flood pattern uses pillow optics on the outer lens surface, to provide a true optically designed spread, for even illumination throughout. It is perfect to use as a backup light, for lighting up anything at low speeds, or for trailers and worksites.

Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 40x20 degree pattern. The combo lens features a flood optic on one side and a driving optic on the other.

Features

  • Allows for flush installation on bumpers and truck beds
  • Advanced TIR optics provide high efficiency and focus
  • Backlight account feature, in a brilliant amber color
  • Durable powdercoated aluminum construction
  • Integrated Deutsch-style connector
  • Pin-fin heatsink design
  • Designed, torture tested and assembled in USA

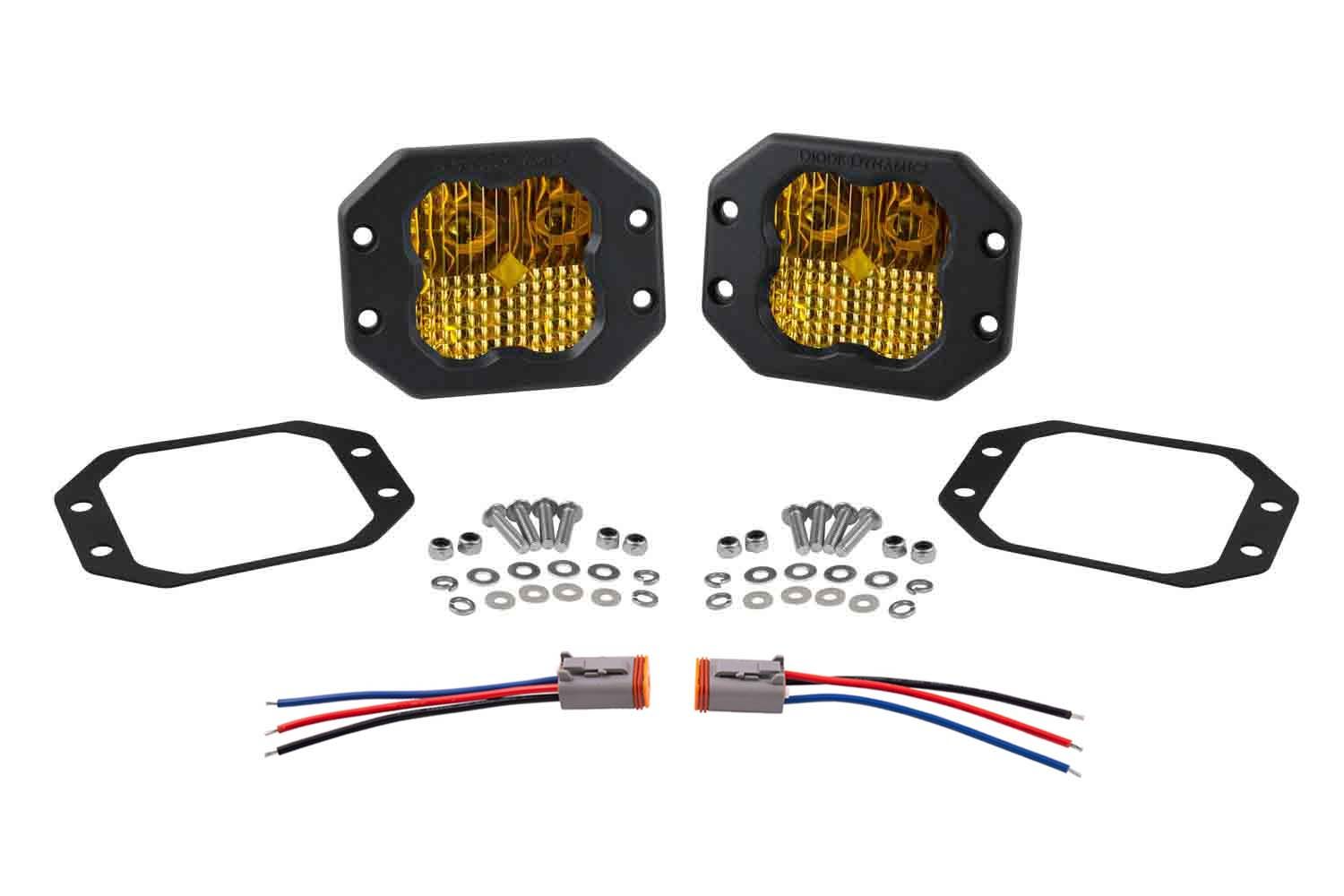

In the Box:

  • Two (2) SS3 3" Flush LED Pods
  • Two (2) Deutsch-style wire pigtails
  • Two (2) Flush Frame Gaskets
  • Mounting hardware and drilling template
  • Specification guide

Specifications
Lens Color/Optics Peak Beam Intensity
(candela) Illuminance
(lux @ 10m) Measured Output
(lumens) Raw Output
(lumens) Output Color
Driving Sport 53,500 cd 535 lux 1,300 lm 1,930 lm 3000K Yellow
Driving Pro 60,900 cd 609 lux 2,700 lm 5,220 lm 3000K Yellow
Flood Sport 1,600 cd 16 lux 1,300 lm 1,930 lm 3000K Yellow
Flood Pro 2,850 cd 29 lux 2,700 lm 5,220 lm 3000K Yellow
Fog Sport 9,050 cd 91 lux 1,300 lm 1,930 lm 3000K Yellow
Fog Pro 10,900 cd 109 lux 2,700 lm 5,220 lm 3000K Yellow
Fog Max 12,500 cd 125 lux 3,500 lm 7,920 lm 3000K Yellow
Spot Sport 149,000 cd 1,490 lux 1,300 lm 1,930 lm 3000K Yellow
Spot Pro 118,500 cd 1,185 lux 2,700 lm 5,220 lm 3000K Yellow
Combo Sport 28,100 cd 281 lux 1,300 lm 1,930 lm 3000K Yellow
Combo Pro 33,406 cd 334 lux 2,700 lm 5,220 lm 3000K Yellow
